Series 10 P-10-CMB Bearing Press PD3958

Series 10
P-10-CMB
Bearing Press
PD3958

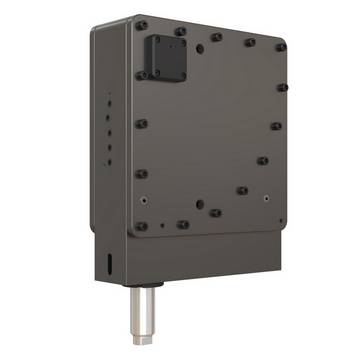

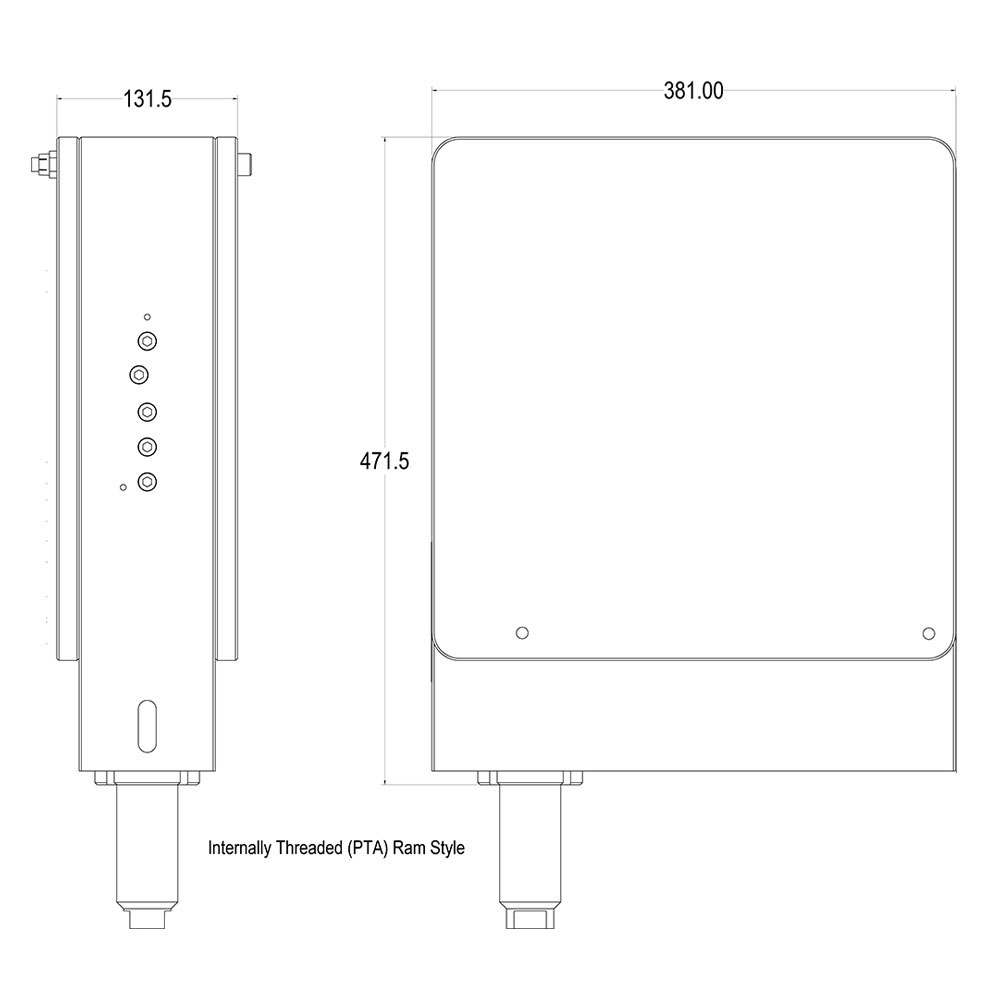

P-10-CMB Bearing Press

P-10-CMB Bearing Press

P-10-CMB Bearing Press

Proximity Switch

Flange Mount with Ram Latch

BTM Bearing Toggle Presses give machine builders a competitive advantage: compact, easy integration, low maintenance and long life.

Key Specifications
Force Output	88 kN [10 Ton]
Stroke	25 mm [1 in] to 114 mm [4.5in]
Cycle Time	1 second
Weight	64.6 kg [142.4 lb]
Standard Input Pressure	5.5 BAR [80 PSI]

Mechanical Fastener Insertion
Clinching
Piercing
Bending
Stamping
Coining
Shearing
Notching
Other Forming Applications

Lubricated for Life*
End of Stroke Position Does Not Require Adjustment During Use*
Thin Profile for Close Stacking
Simpler Valving & Control Integration Than Air-Over-Oil
No Hydraulic Fluids
Non-Rotating Ram
70% Lower Air Consumption Compared with Conventional Pneumatic Cylinder
Hardcoated to Rockwell C-70 for Excellent Wear Resistance

*Tested to 3 million cycles

Stroke Lengths: 25 mm [1 in] to 114 mm [4.5 in]
Ram Options
- Internally Threaded (PTA)
- Externally Threaded (TE)
- Custom Configuration (S)
Advance/Retract Proximity Switch Position Sensing
Flange Mount
Ram Latch
Custom Force Frames Engineered to Your Requirements
Control Packages
Force Monitoring Packages
Tooling Package
Proximity Switch Packages for Control System Integration
