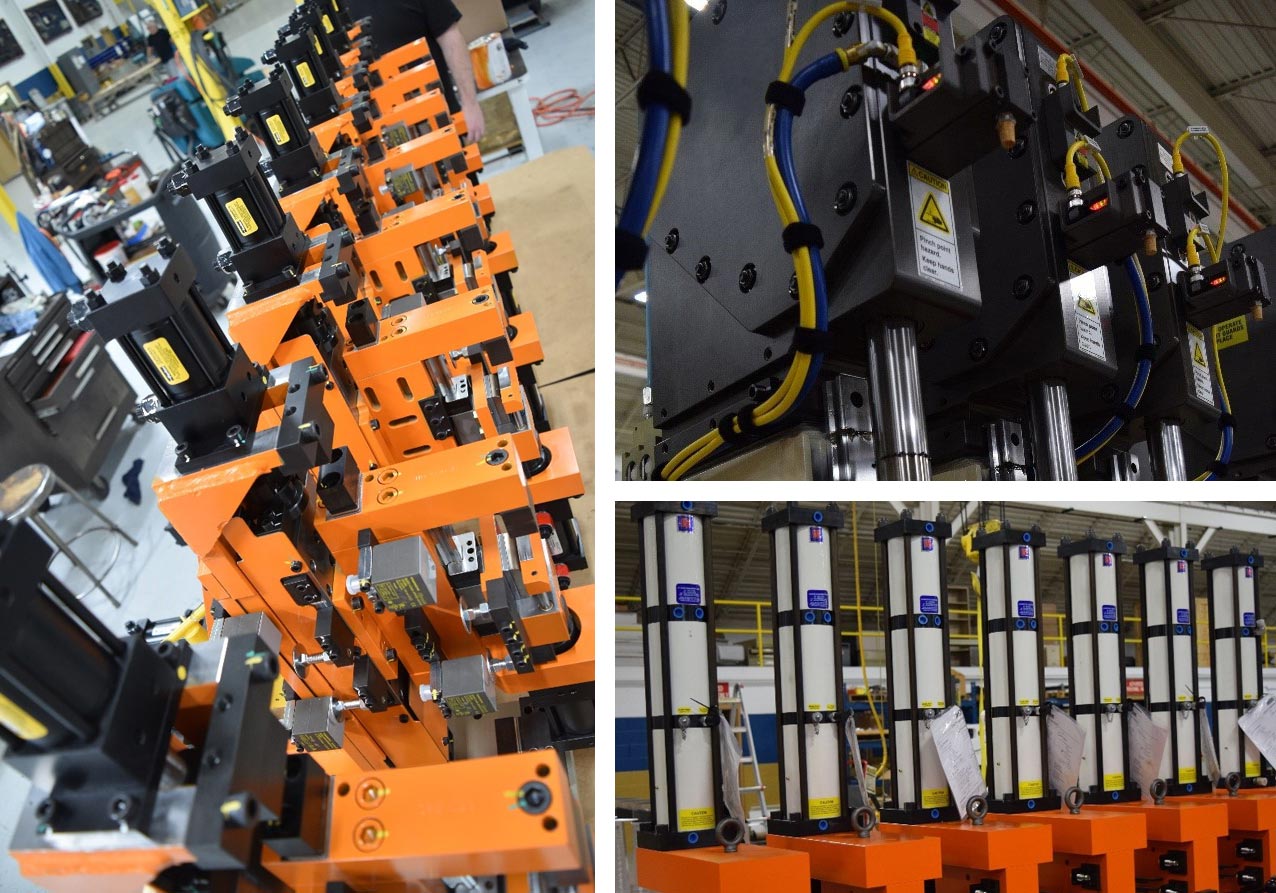

Presses & Press Units

BTM designs and builds press equipment for manufacturers, machine builders and systems integrators.

BTM products include standard, modular and custom-engineered servo-electric, pneumatic, air-over-oil and hydraulic:

  • Presses
  • Press Units
  • Press Components
  • Robot Mounted Presses
  • Integrated Tooling Solutions
  • Advanced Process Monitoring

Our vertically integrated flexible operations and modular equipment designs make BTM a partner you can trust to provide a wide range of robust press equipment in world-class time.

Servo-Electric Press Units

BTM Servo-Electric Press Units utilize advanced electric actuators to deliver clean, highly controlled, and fully traceable sheet metal joining and forming operations. BTM partners with Kistler, the global leader in dynamic measurement, to combine high-performance electromechanical actuators with advanced piezoelectric measurement technology to maximize your manufacturing process efficiency.

ClinchingTog-L-Loc® Clinching Clinching EquipmentClinching Equipment Piercing EquipmentPiercing Equipment Fastener EquipmentFastener Equipment
Servo-Electric

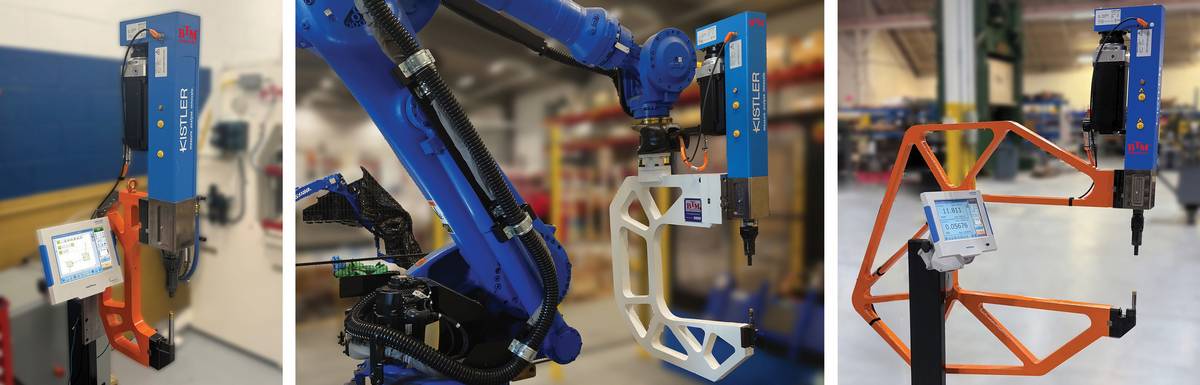

C-Frame Applications Including Robot Mounted
Servo-Electric

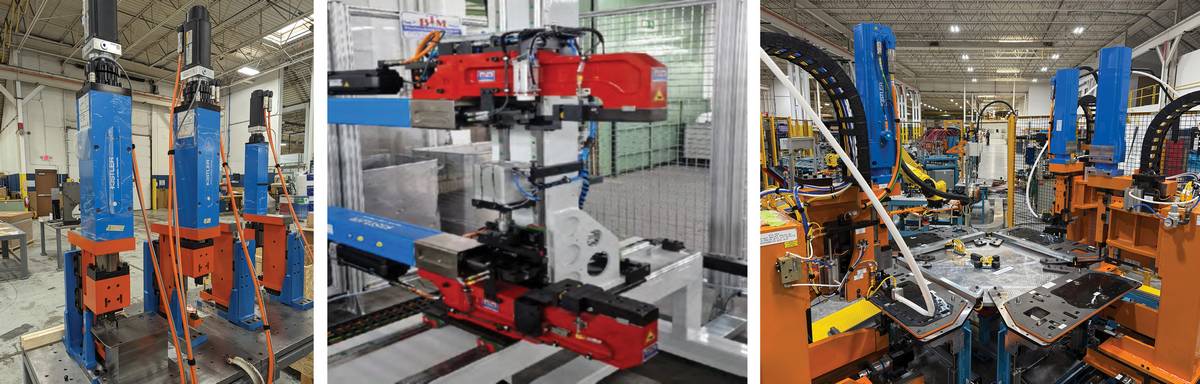

Production Equipment Applications
Servo-Electric

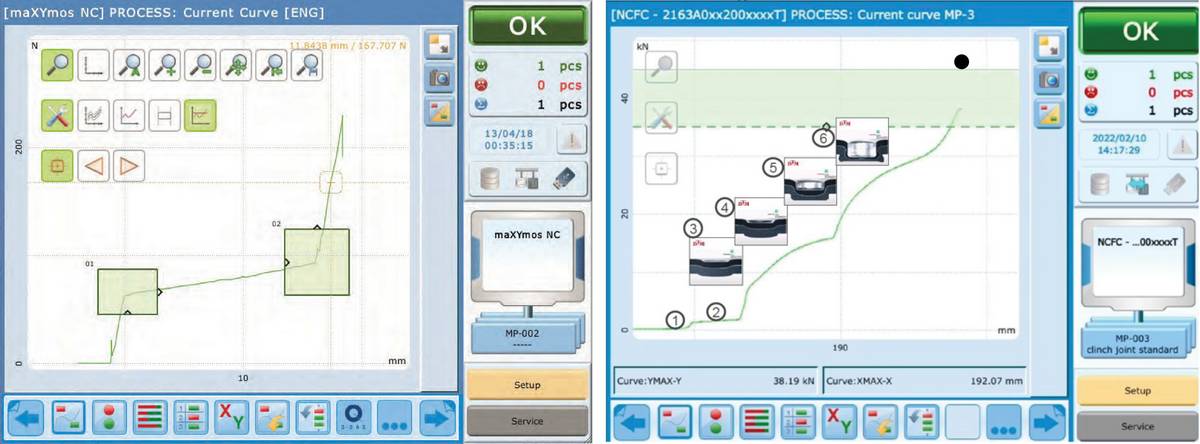

Processing Window Monitoring To SupportJoint Optimization Validation

Features

Speed: Reduces cycle time through simultaneous press positioning and pre-power stroke press actuation.

Joint Quality Optimization: C-Frame deflection compensation technology enables improved joint quality and C-Frame lightweighting.

Operational Flexibility: Helps optimize joint quality when common tooling is used across a range of material combinations.

Traceability: Captures and evaluates dynamic force-displacement curves for in-process quality and process verification while supporting Industry 4.0.

Programmable Precision: Flexible control over stroke velocity, parameter profiles, and tool positioning.

Clean, Quiet & Energy-Efficient: Eliminates pneumatic air losses, leaks, and loud exhausts, while also avoiding hydraulic leaks and hydraulic power unit noise.

Available Configurations

  • Standard & Custom Press Units for Integration into Customer Equipment
  • Standard & Custom Operator Workstations
  • Standard & Custom Robot-Carried and Robot-Fed Configurations
  • Press Units Incorporated into BTM Production Systems
  • Integrated Force-Displacement Control Packages
  • High-Force Press Units
  • Standard and Application-Specific Tooling Packages

Air Toggle Presses

Pneumatic press units are compact with a thin profile for small spaces or close stacking and easy mounting (any position). BTM has complete press units, press heads, front mount units, punch & button units with integrated anvils and special purpose units with long strokes, double rams or integrated frames. BTM sales can help you choose the right press.

Bearing Press Heads

Press Heads

Front Mount

Pre-Engineered for Clinching & Piercing

Air-Over-Oil Cylinders

High force is created using a pneumatic cylinder as a pump for the hydraulic cylinder, up to 100 tons.

Floor & Bench Tooling Presses

Floor and tooling press units are available with different frames, strokes, throat depths and tooling packages for sheet metal assembly and manufacturing.

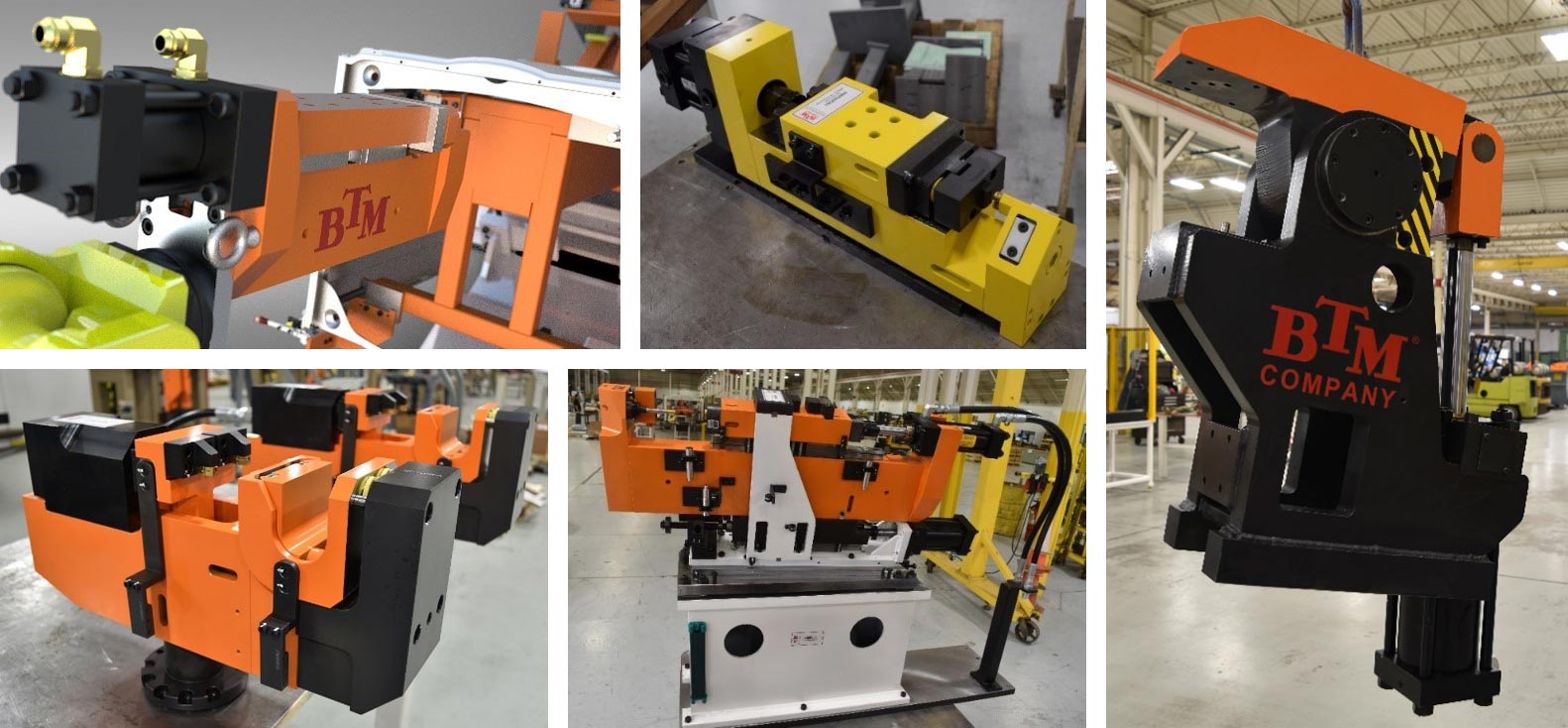

Hydraulic Press Units

BTM Hydraulic Presses are for demanding applications.

Hydraulic Press Units

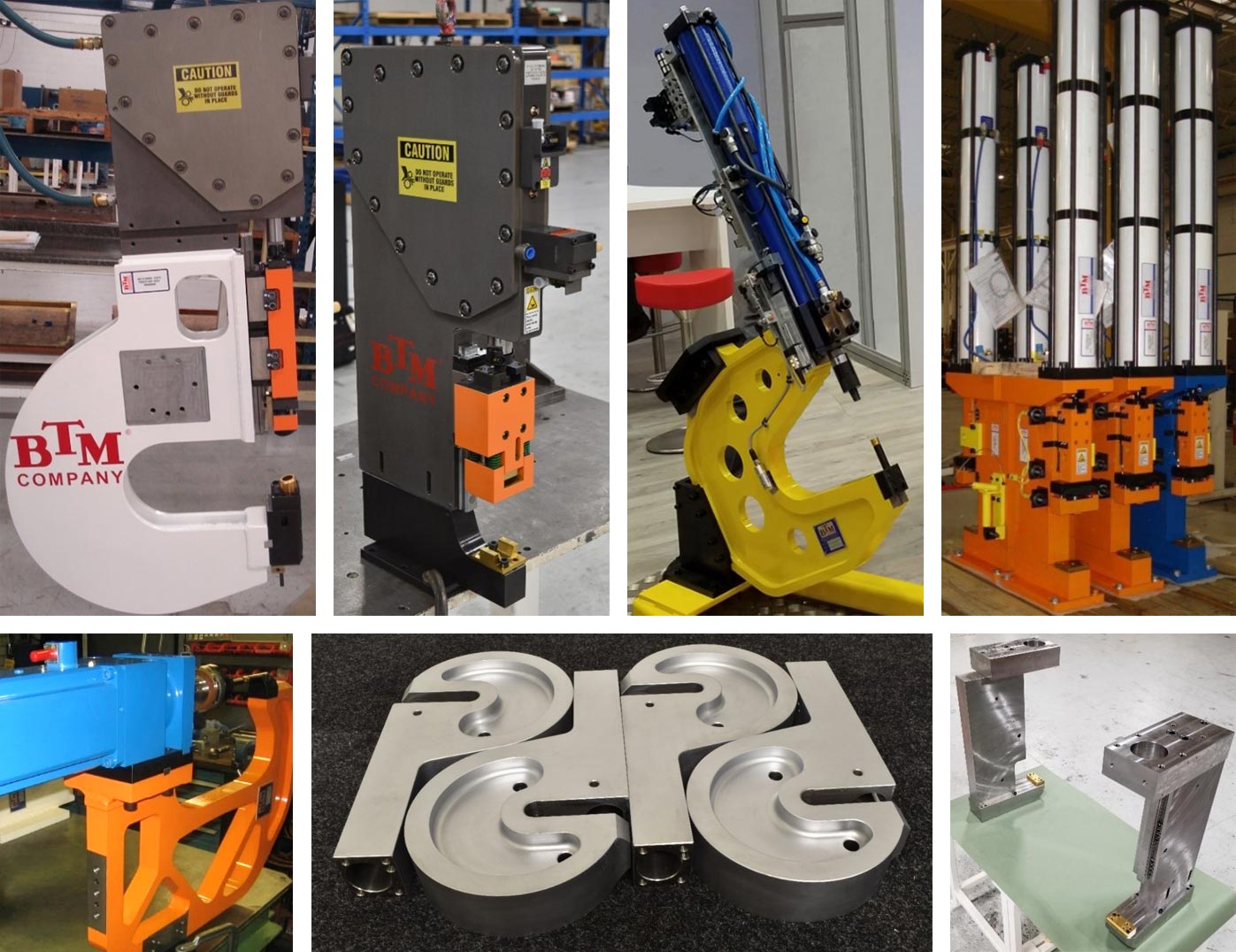

Modular C & D Press Frames

C & D Press Frames are available in modular and custom designs for integration with other equipment.

Modular C & D Press Frames

Special Machines & Custom Systems

From single station presses to fully automated assembly systems, BTM has proven solutions for the sheet metal industry.

Custom Presses & Special Machines
