    Manual Clinching Press
    MCP-44-FP Narrow Throat
    PD3742

    MCP-44-FP TD153
    MCP-44-FP TD153
    MCP-44-FP TD153

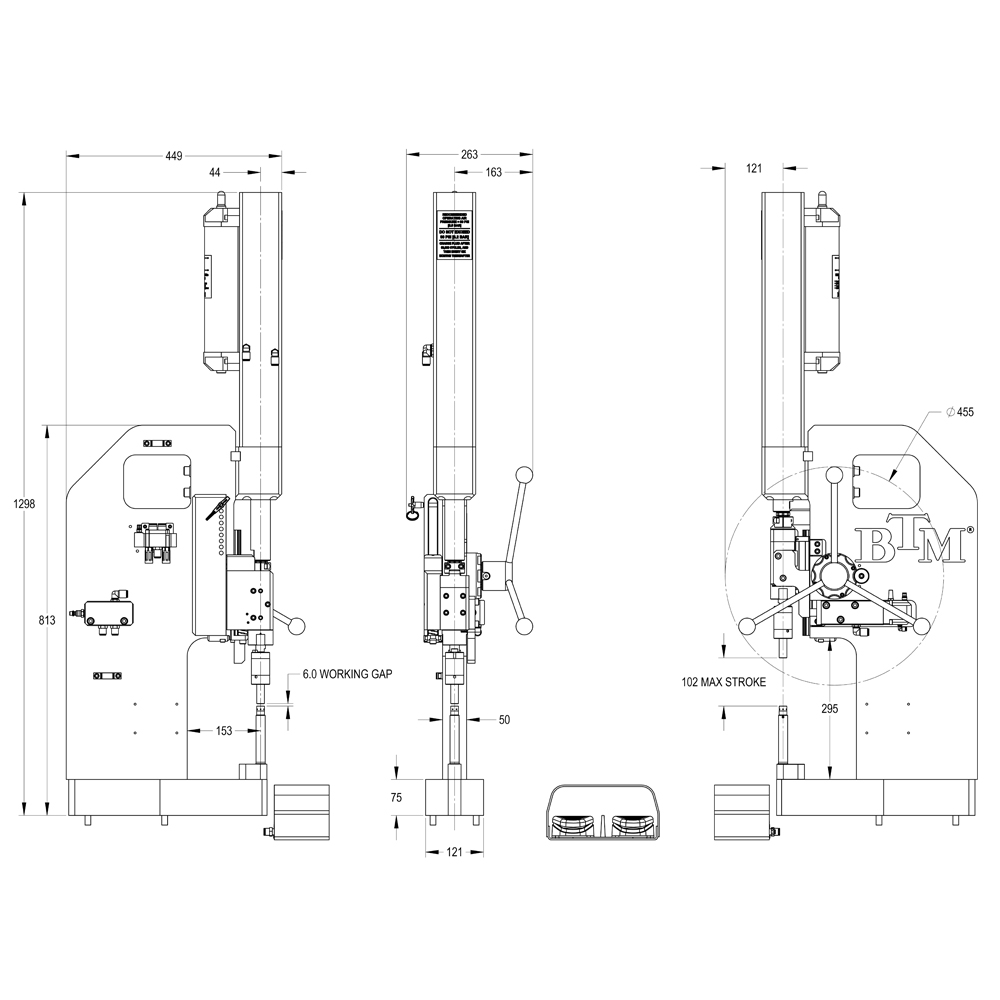

    Bench Model
    Bench Model with Foot Stand & Pedal

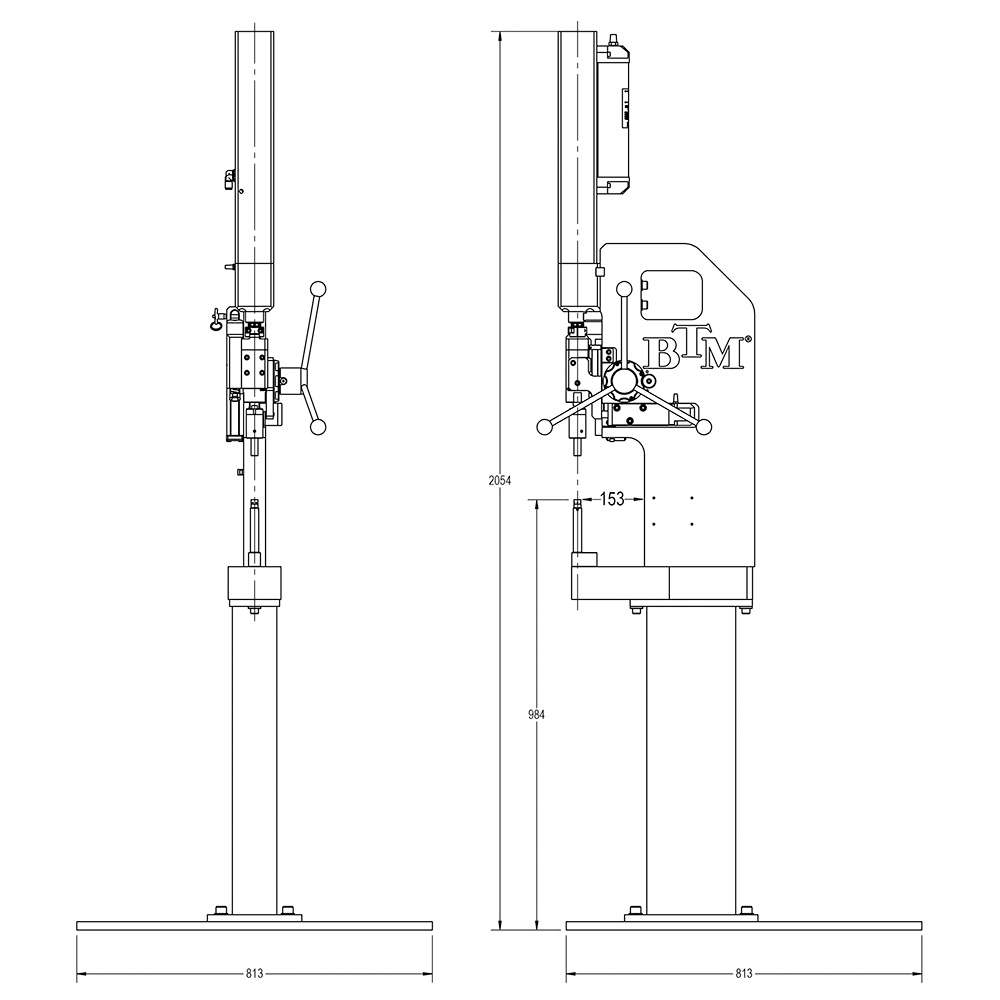

    Floor Stand with Foot Pedal
    Adjustable Return Stroke

    Manual drive presses provide the operator with full control to precisely locate the clinch. Designed specifically for sheet metal fabricators, this is an economic alternative for clinching and short stroke pressing needs.

    Key Specifications

    Maximum Combined Material Thickness

    3.5 mm [Mild Steel]

    Throat Depth

    153 mm

    Maximum Stroke

    102 mm

    Cycle Time

    1 second

    Weight

    134 kg [295 lb]

    Standard Input Pressure

    5.5 BAR [80 PSI]

    Tool Size

    2.3 to 4.6
    • High Volume Manual Clinching
    • Steel & Aluminum Sheet Metal Fabrication
    • HVAC Industry
    • Metal Structure Assembly
    • Roofing
    • Office Furniture
    • Filter Assembly
    • Press Bushings & Bearings
    • Prototype Assembly
    • Compact Design
    • Foot Pedal Control Package for Operator Part Handling Convenience
    • Hand Lever Allows Operator to Quickly Position Tooling
    • Adjustable Return Stroke for Faster Cycle Time
    • Quick Change Tooling for Multiple Applications
    • Tool Guard
    • Reversible Tooling
    • Precision Linear Slide for Improved Clinch Joint Integrity
    • Non-Rotating Tool Holder for Consistent Geometric Tooling Application
    • Operates From a Single Shop Line
    • Self-Contained Air-Over-Oil Cylinder for Clean, Quiet, Reliable Operation
    • 44 kN Compressive Force [5 Ton]
    • Press Unit Only
    • Bench Model
    • Floor Stand
    • Custom Force-Frame Engineered to Your Requirements
    • Heavy Duty Stripper for Thicker Material
    • Tog-L-Loc® 3.0, 3.8, 4.6
    • Lance-N-Loc® 2.3, 3.0, 3.8
    • V-Loc™ 3.8, 4.6
    • Oval-Loc® 3x6
