Manual drive presses provide the operator with full control to precisely locate the clinch. Designed specifically for sheet metal fabricators, this is an economic alternative for clinching and short stroke pressing needs.

    Key Specifications

    Maximum Combined Material Thickness

    4.0 mm [Mild Steel]

    Throat Depth

    460 mm

    Maximum Stroke

    102 mm

    Cycle Time

    1 second

    Weight

    165 kg [362 lb]

    Standard Input Pressure

    5.5 BAR [80 PSI]

    Tool Size

    3.0 to 4.6

    • High Volume Manual Clinching
    • Steel & Aluminum Sheet Metal Fabrication
    • HVAC
    • Metal Structure Assembly
    • Roofing
    • Office Furniture
    • Filter Assembly
    • Press Bushings & Bearings
    • Prototype Assembly
    • Foot Pedal for Operator Handling Convenience
    • Hand Lever Allows Operator to Quickly Position Tooling
    • Adjustable Return Stroke for Faster Cycle Time
    • Quick Change Tooling for Multiple Applications
    • Reversible Tooling
    • Precision Linear Slide for Improved Clinch Joint Integrity
    • Operates From a Single Shop Air Line
    • Self-Contained Air-Over-Oil Cylinder for Clean, Quiet, Reliable Operation
    • 44 kN Compressive Force [5 Ton]
    • Forklift Tubes for Safe Repositioning [Floor Model]
    • Press Unit Only

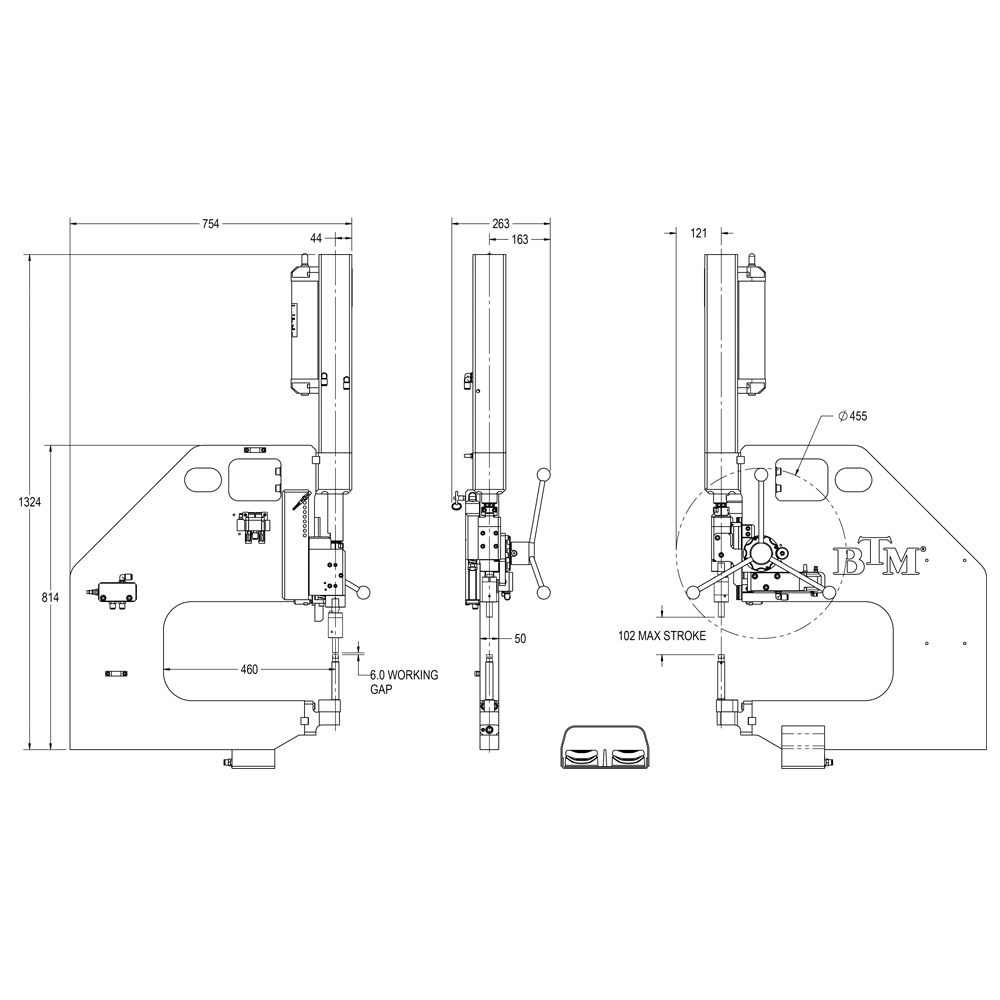

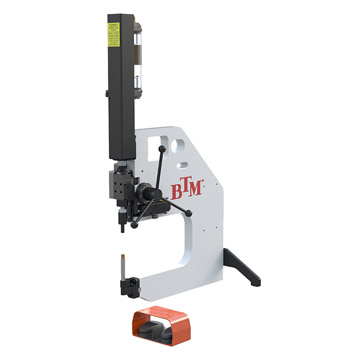

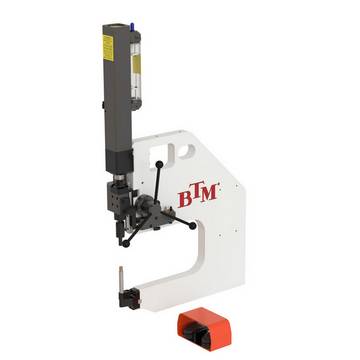

    • Bench Mount

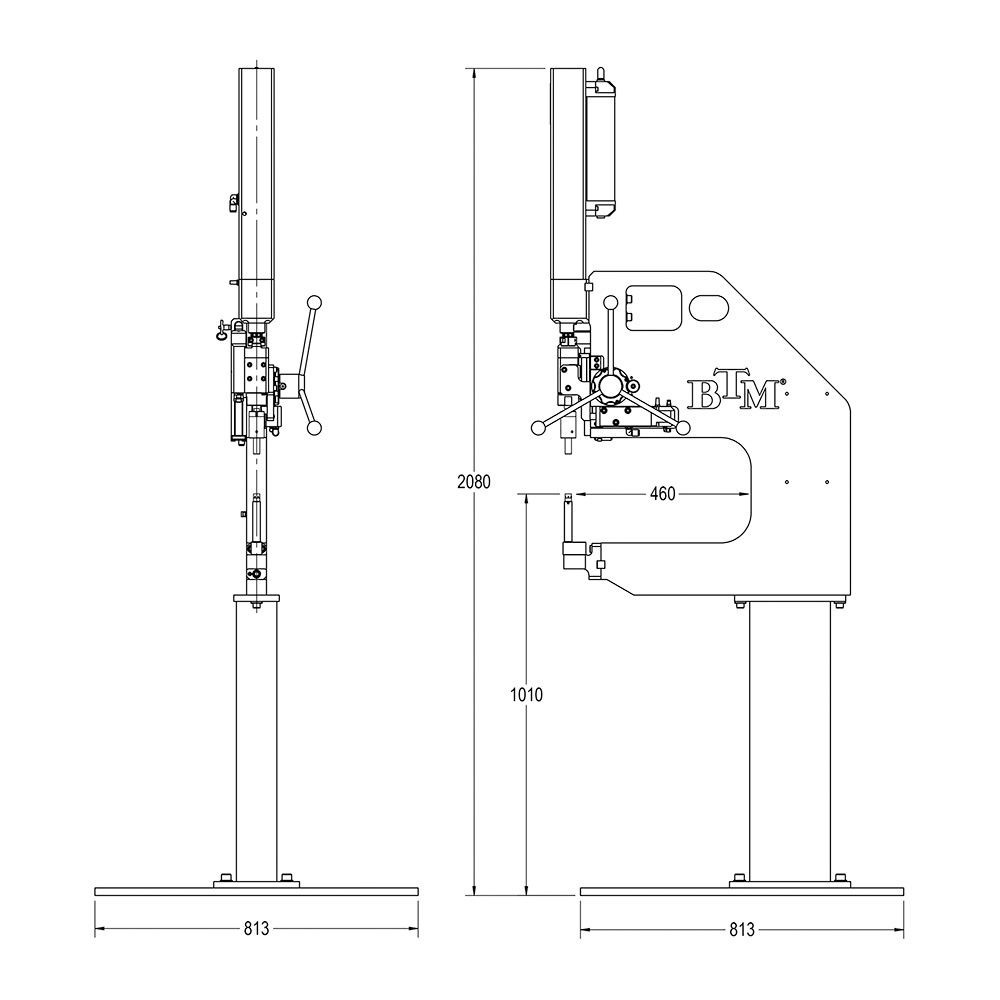

    • Floor Stand
    • Custom Force-Frames Engineered to Your Requirements
    • Heavy Duty Stripper for Thicker Materials
    • Tog-L-Loc® 3.0, 3.8, 4.6
    • Lance-N-Loc® 2.3, 3.0, 3.8
    • V-Loc™ 3.8, 4.6
    • Oval-Loc® 3x6
