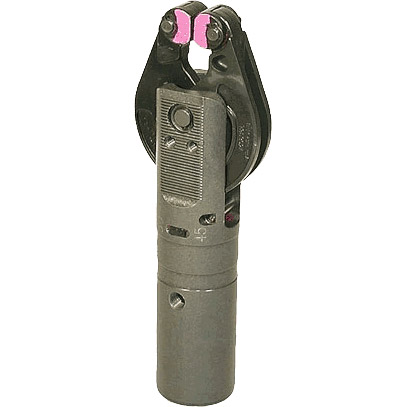

PG45
BTM’s locking grippers feature a roller and detent on the cam surface to hold the part if air pressure is lost.
Key Specifications | |
|---|---|
Gripping Force | 2.9kN @ 5.5 BAR [650lbs @ 80PSI) |
Overall Dimensions | 245 (L) x 50 (W) x 162 (H) With Arms Opened |
Weight | 1.4kg [2.8 lbs] |
- Robot End-Effector
- Stamping and Press Room
- Automation
- Automation Positioning
- Component Assembly
- Adjustable Opening using a Single Pin to Adjust Opening 30 - 45° or remove the pin to open 75°
- Locking Cam Arm
- Interchangeable Arm Style by pulling a single pin (single or double opening)
- Common Gripper Body for all Styles
- Interchangeable Gripper Pads
- Serated
- Smooth
- Urethane
- Cone & Point
- Gripper Mounts
- Base Mount
- Tube Mount
- Port Type
- 1/8 NPT
- Switch Options
- DC Proximity Switch
- AC Proximity Switch
