PG Mini-Locking Gripper
BTM’s locking grippers feature a roller and detent on the cam surface to hold the part if air pressure is lost.
Key Specifications | |
|---|---|
Gripping Force | 0.9 kN @ 5.5 BAR [205lbs @ 80PSI] |

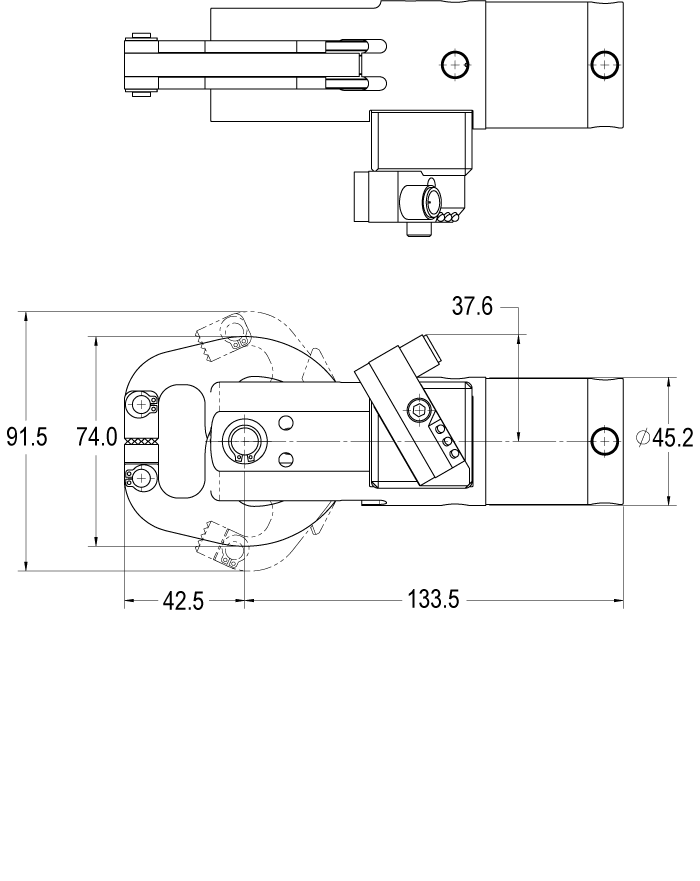

Overall Dimensions | 186.5 (L) x 44.5 (W) x 91.6 mm (H) |
Weight | 0.7 kg [1.5 lb] Without Arm |
- Robot End-Effector
- Stamping and Press Room
- Automation
- Automation Positioning
- Component Assembly
- Locking Mechanism Remains Locked if Air Pressure is Lost
- Interchangeable Arm Style by Pulling a Single Pin (single or double opening)
- Common Gripper Body for all Styles
- Interchangeable Gripper Pads
- Serated
- Smooth
- Gripper Mounts
- Base Mount
- Tube Mount
- Port Type
- 1/8 NPT
- Switch Options
- DC Switch
- AC Switch
