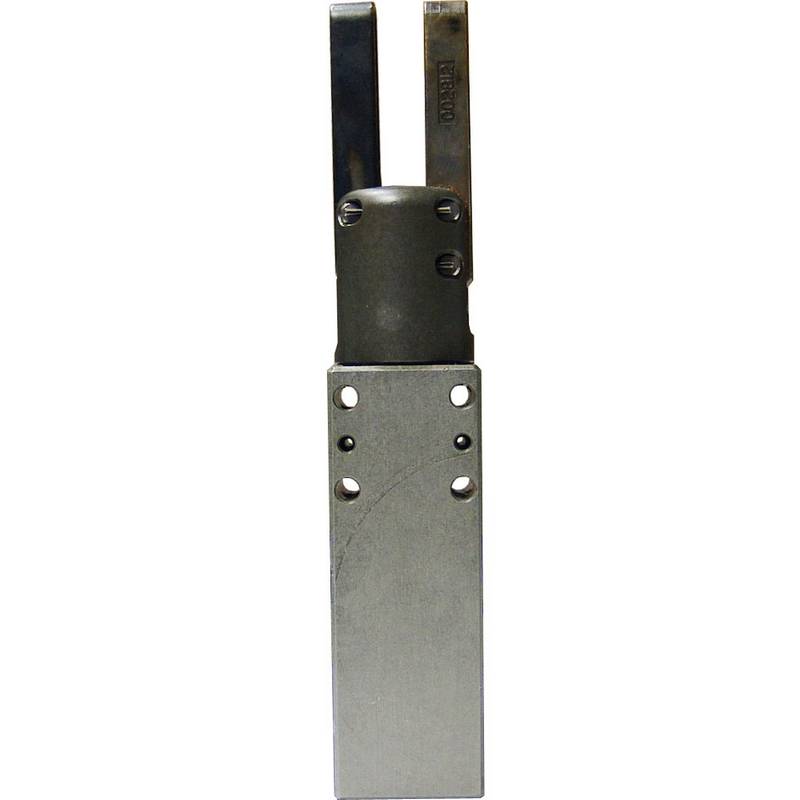

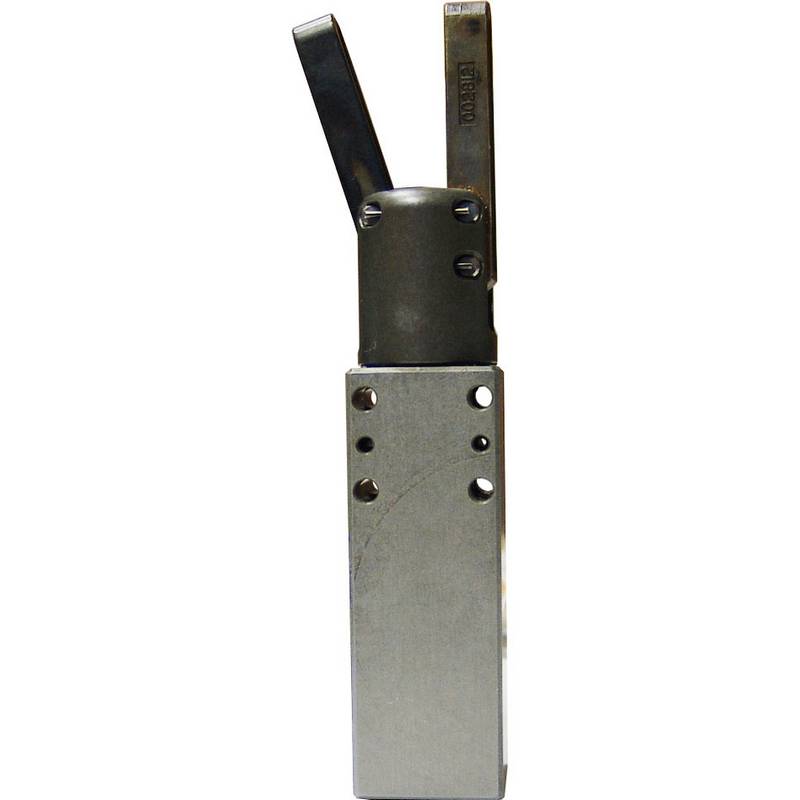

The Single 20 is a light-duty griper with one moving arm that opens 20°.
Key Specifications | |
|---|---|
Gripping Torque | 4.5 N∙m @ 5.5 BAR [3.33 lbf∙ft. @ 80PSI] |

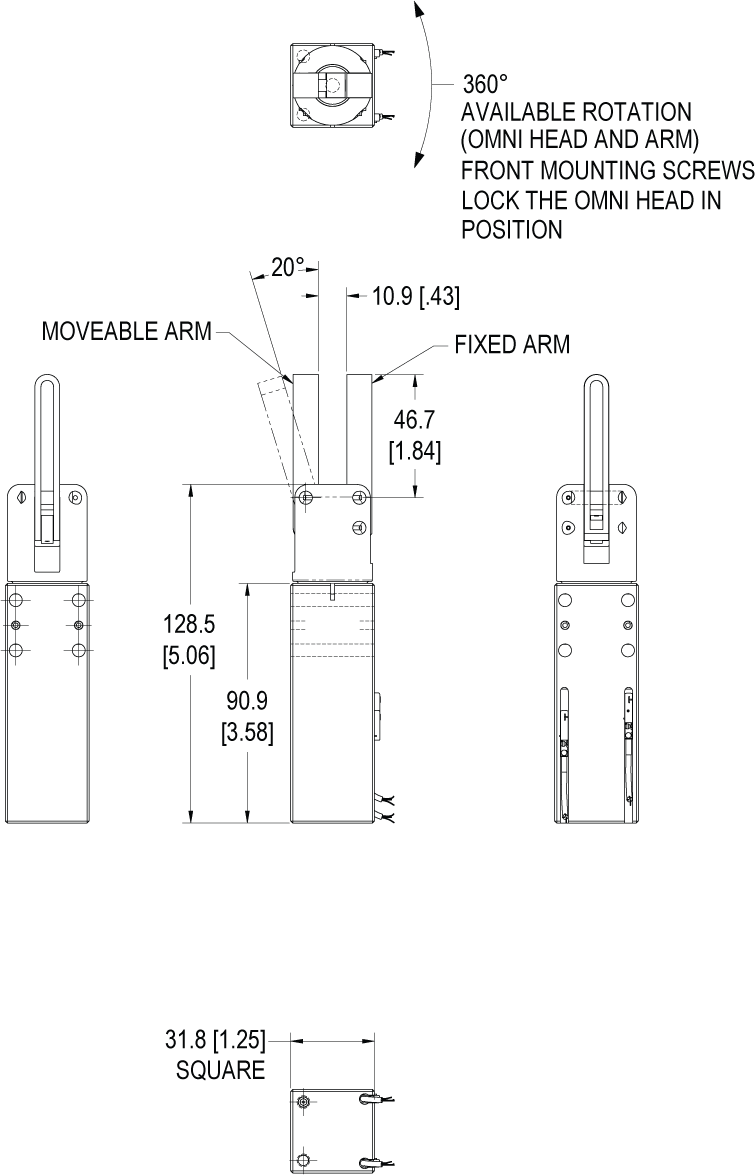

Overall Dimensions | 31.8 (L) x 31.8 (W) x 170.4 mm (H) |
Weight | 0.34 kg [0.75 lb] |
- Plastics
- Stamping and Press Room
- Automation
- Automation Positioning
- Component Assembly
- Manually Rotatable 360° Head
- Compact and Lightweight
- Designed for High Production
- Common Mounting Pattern with BTM’s Light-Duty Clamps and Grippers
- Position Sensing DC Switch
