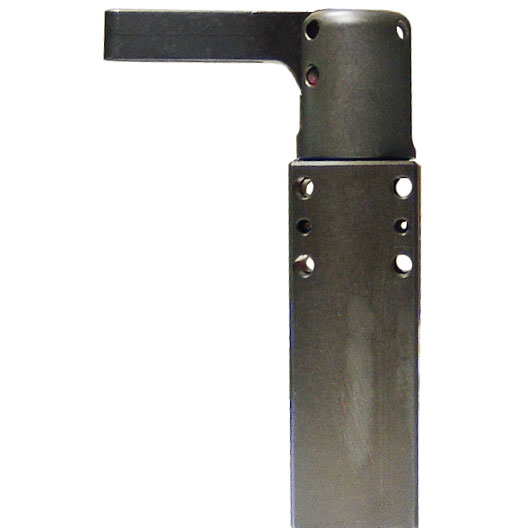

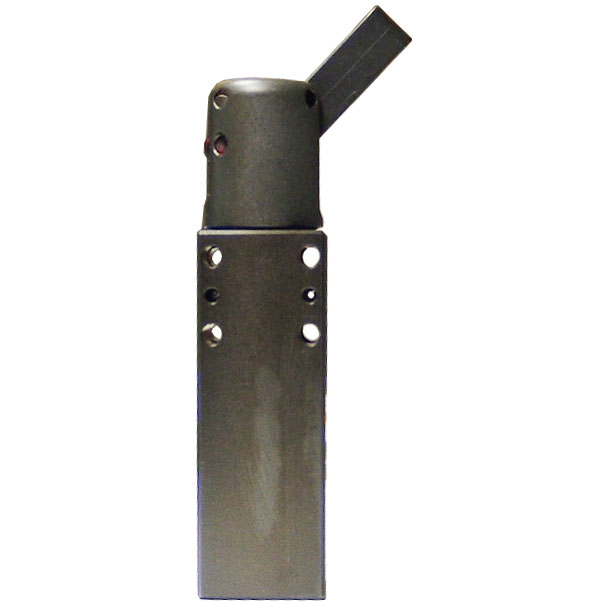

The V130-Vertical is a light-duty vertical clamp with a 130° arm opening.
Key Specifications | |
|---|---|
Clamping Torque | 4.5 N∙m @ 5.5 BAR [3.33 lbf∙ft. @ 80PSI] |
Standard Arm Length | 47.5mm |

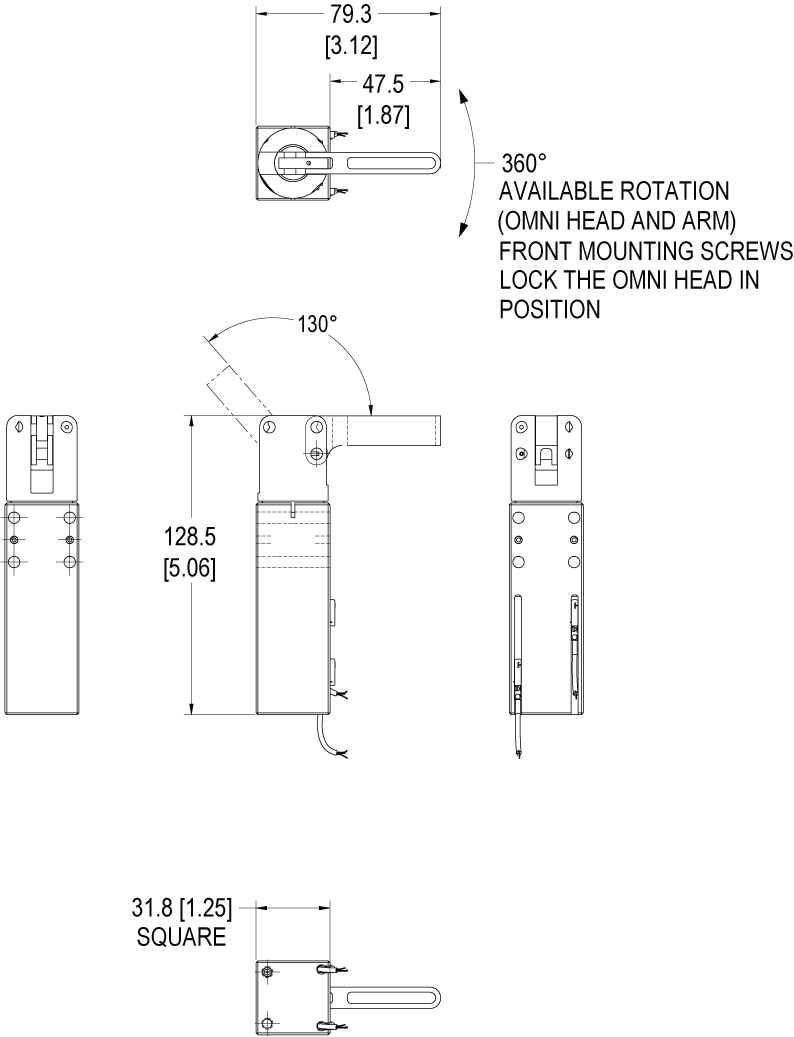

Overall Dimensions | 31.8 (L) x 79.3 (W) x 128.5mm (H) |
Weight | 0.34 kg [0.75 lb] |
- Plastics
- Stamping and Press Room
- Automation
- Nesting
- Fixtures and Test Fixtures
- Automation Positioning
- Component Assembly
- 360° Positionable Head
- Compact and Lightweight
- Designed for High Production
- Common Mounting Pattern with BTM’s Light-Duty Clamps and Grippers
- Position Sensing DC Switch
