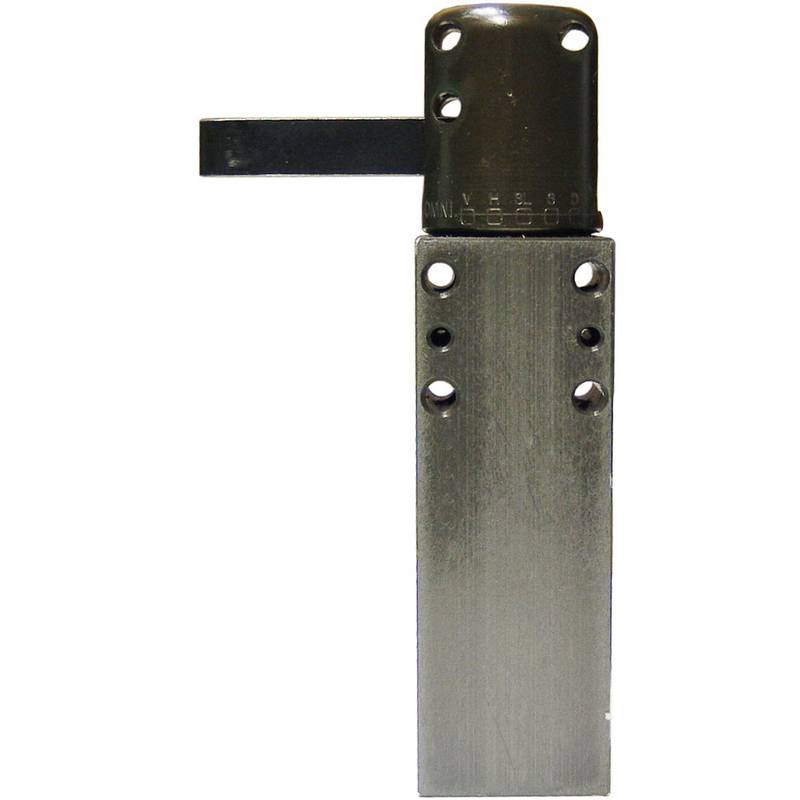

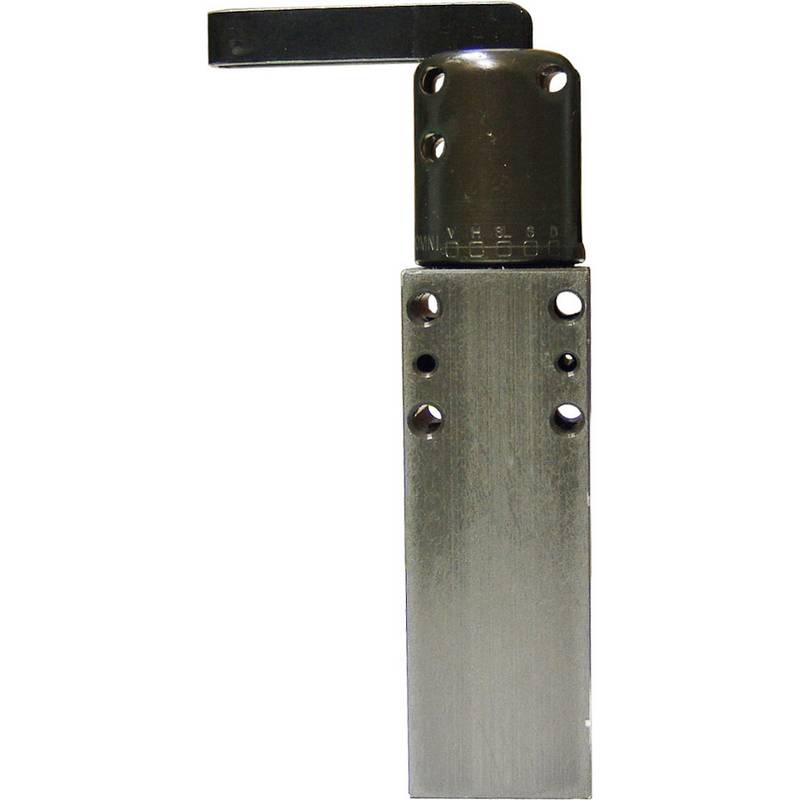

A light duty clamp for linear clamping.
Key Specifications | |
|---|---|
Clamping Force | 231 N @ 5.5 BAR [52 lbf @ 80PSI] |
Standard Arm Length | 52.6mm |

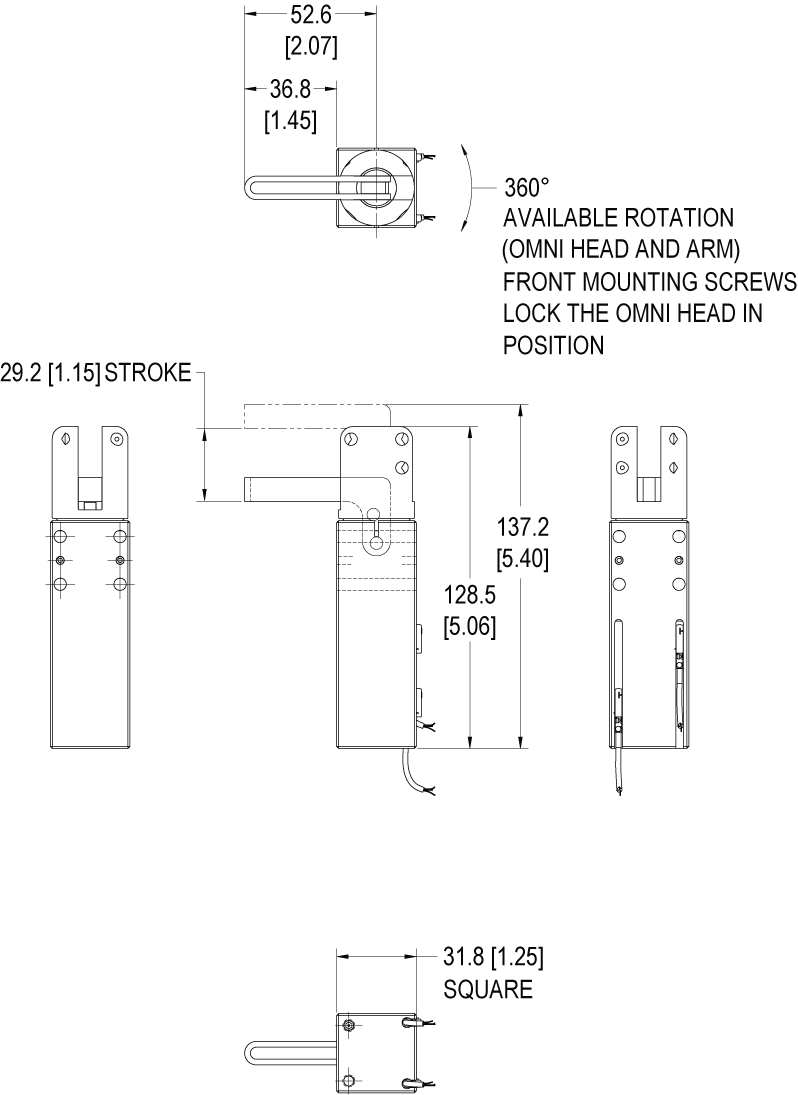

Overall Dimensions | 31.8 (L) x 31.8 (W) x 137.2mm (H) with arm raised |
Weight | 0.30 kg [0.66 lb] Without Arm |
- Plastics
- Stamping and Press Room
- Automation
- Nesting
- Fixtures and Test Fixtures
- Automation Positioning
- Component Assembly
- 360° Positionable Head
- Compact and Lightweight
- Designed for High Production
- Common Mounting Pattern with BTM’s Light Duty Clamps and Grippers
- Position Sensing DC Switch
