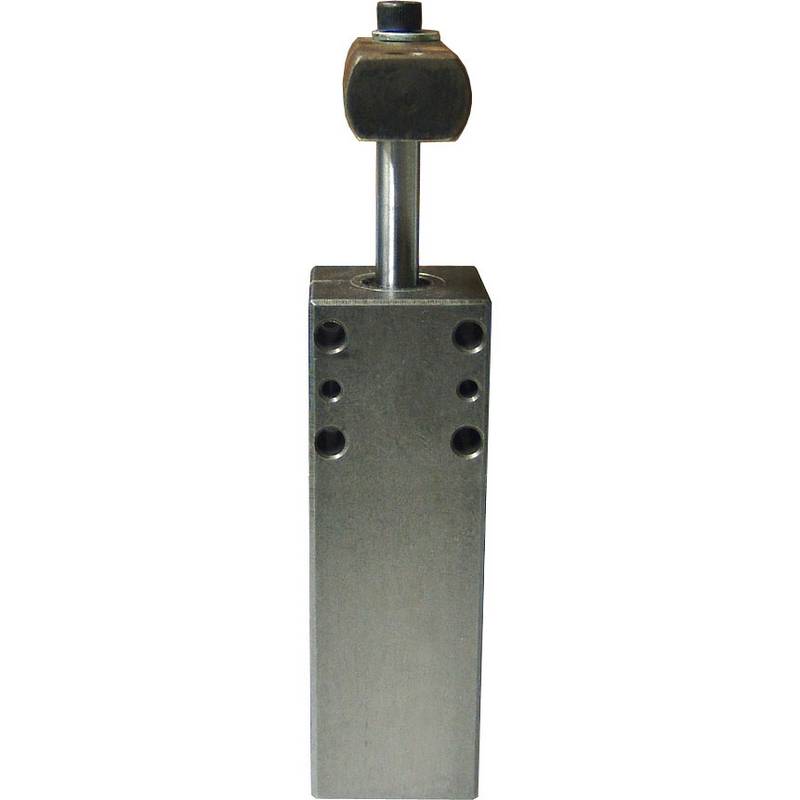

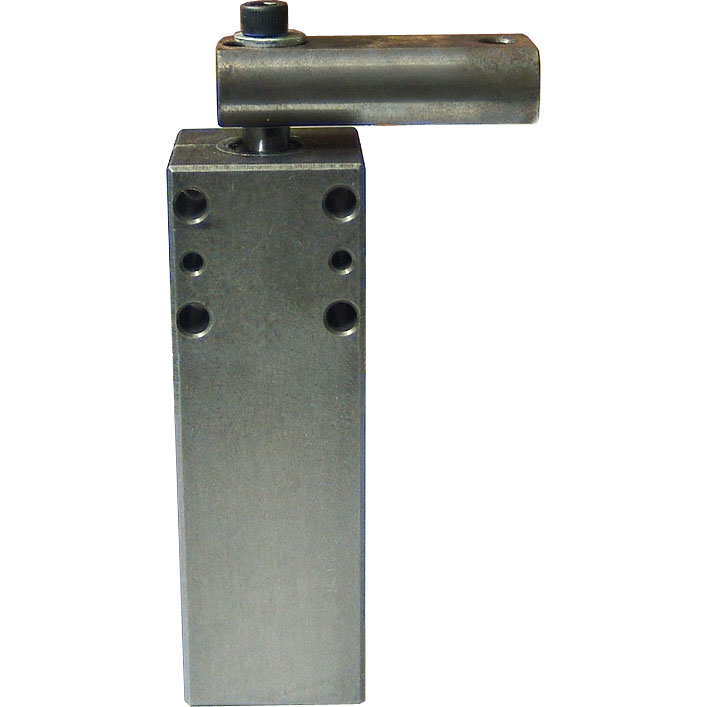

The Rotary-Linear is a light-duty clamp which rotates 90° to perform linear clamping.
Key Specifications | |
|---|---|
Clamping Force | 231 N @ 5.5 BAR [52 lbf @ 80PSI] |
Standard Arm Length | 44.5mm |

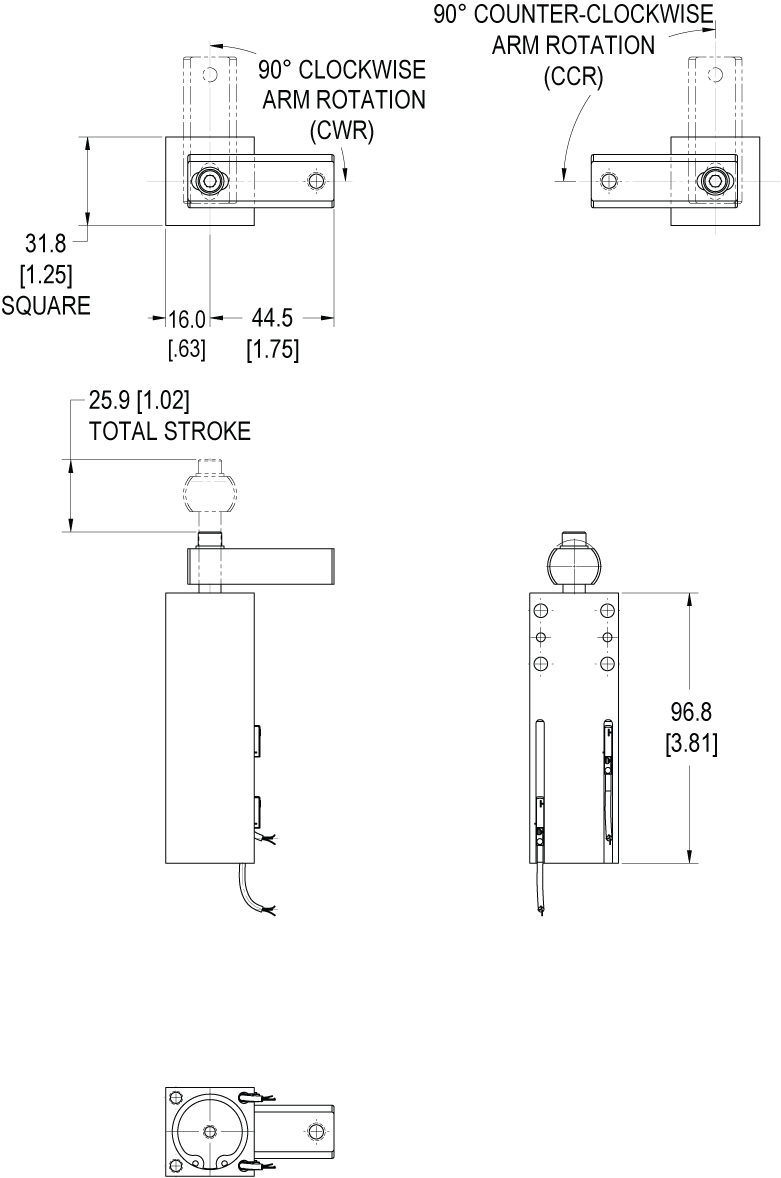

Overall Dimensions | 31.8 (L) x 31.8 (W) x 96.8mm (H) to clamping surface |
Weight | 0.35 kg [0.77 lb] |
- Plastics
- Stamping and Press Room
- Automation
- Nesting
- Fixtures and Test Fixtures
- Automation Positioning
- Component Assembly
- 360° Positionable Head
- Compact and Lightweight
- Designed for High Production
- Common Mounting Pattern with BTM’s Light-Duty Clamps and Grippers
- Position Sensing DC Switch
