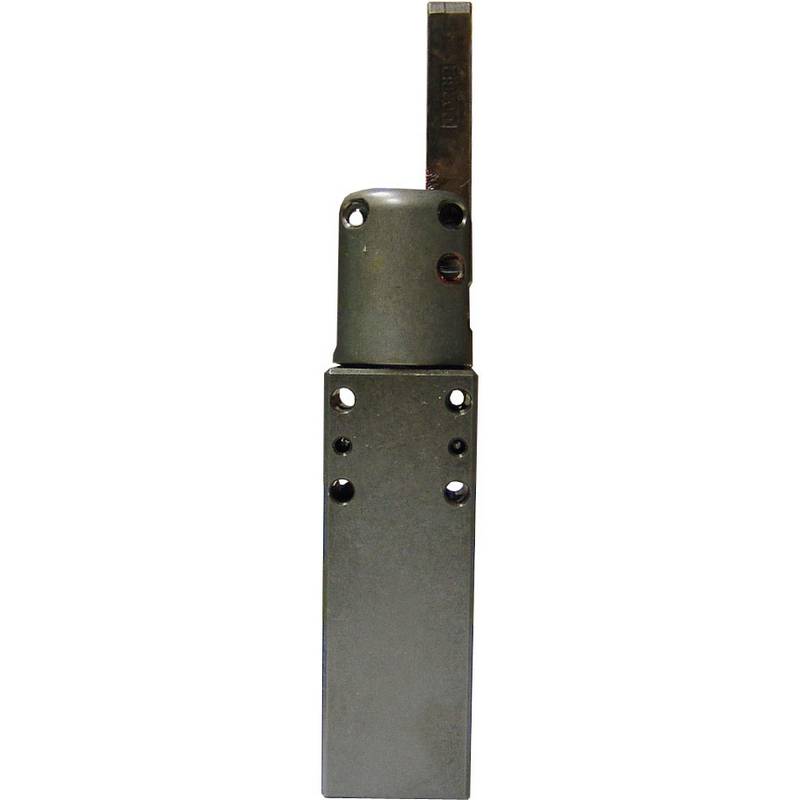

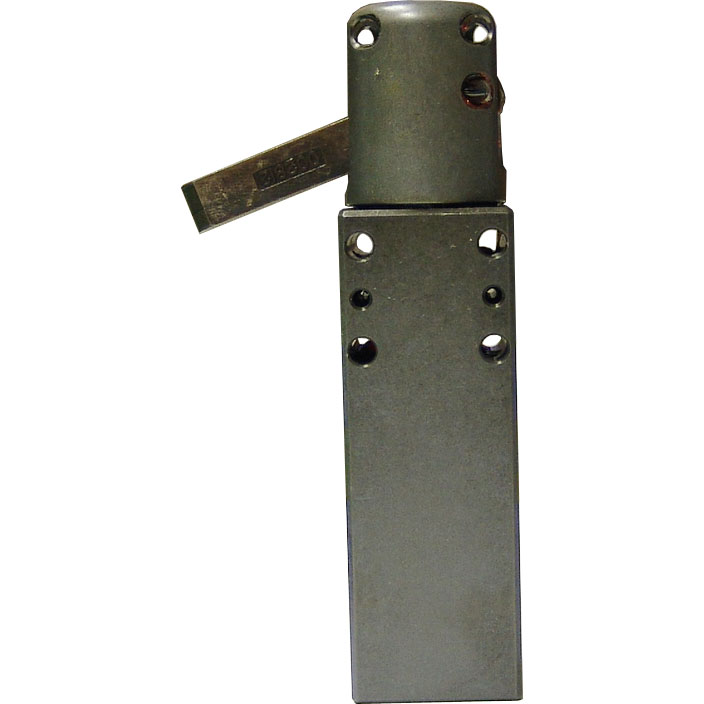

The H110 Horizontal is a light-duty horizontal clamp with a 110° arm opening.
Key Specifications | |
|---|---|
Clamping Torque | 4.5 Nm @ 5.5 BAR [3.33 lbf∙ft. @ 80PSI] |
Standard Arm Length | 58mm |

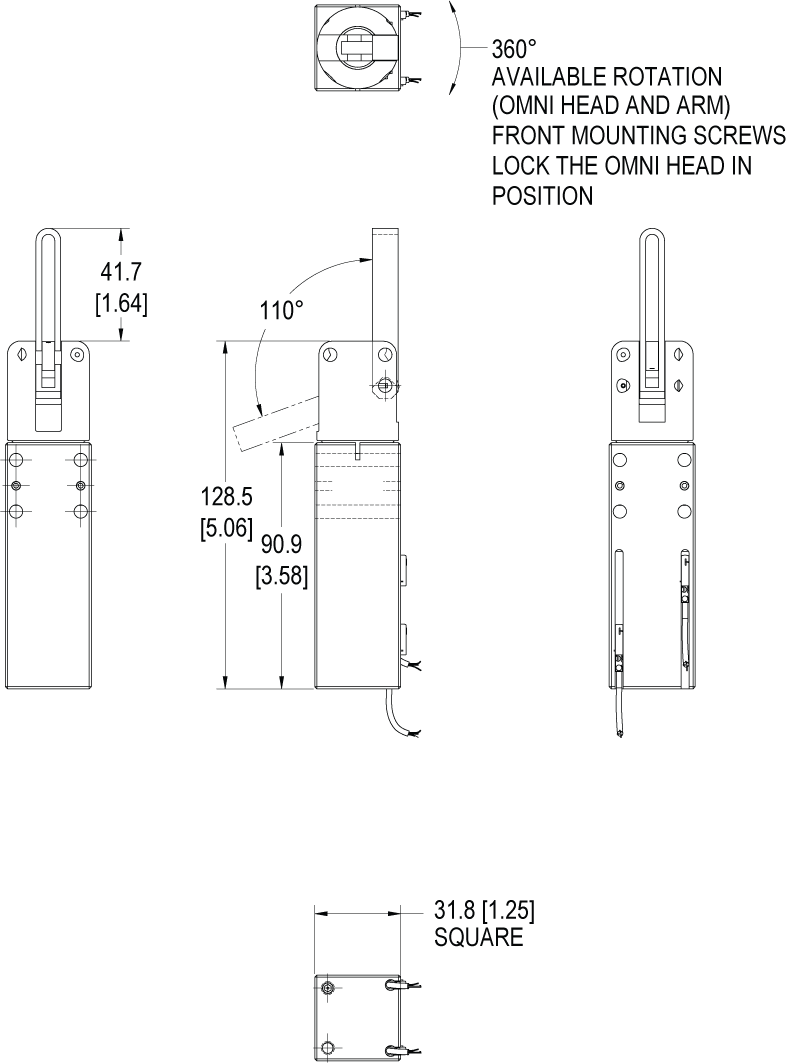

Overall Dimensions | 31.8 (L) x 31.8 (W) x 128.5mm (H) without arm |
Weight | 0.30 kg [0.67 lb] Without Arm |
- Plastics
- Stamping and Press Room
- Automation
- Nesting
- Fixtures and Test Fixtures
- Automation Positioning
- Component Assembly
- 360° Positionable Head
- Compact and Lightweight
- Designed for High Production
- Common Mounting Pattern with BTM’s Light-Duty Clamps and Grippers
- Position Sensing DC Switch
