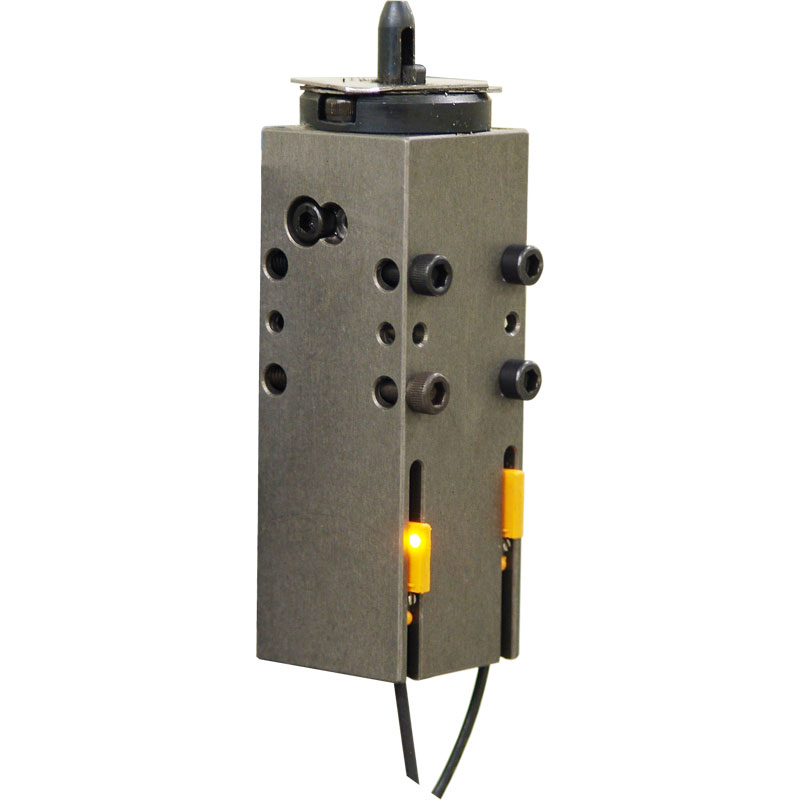

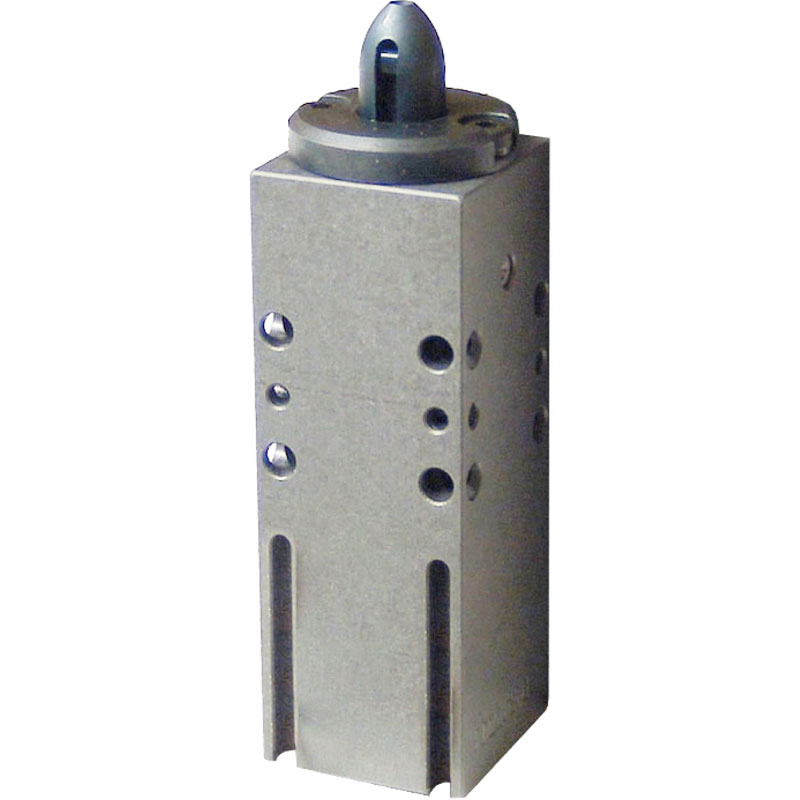

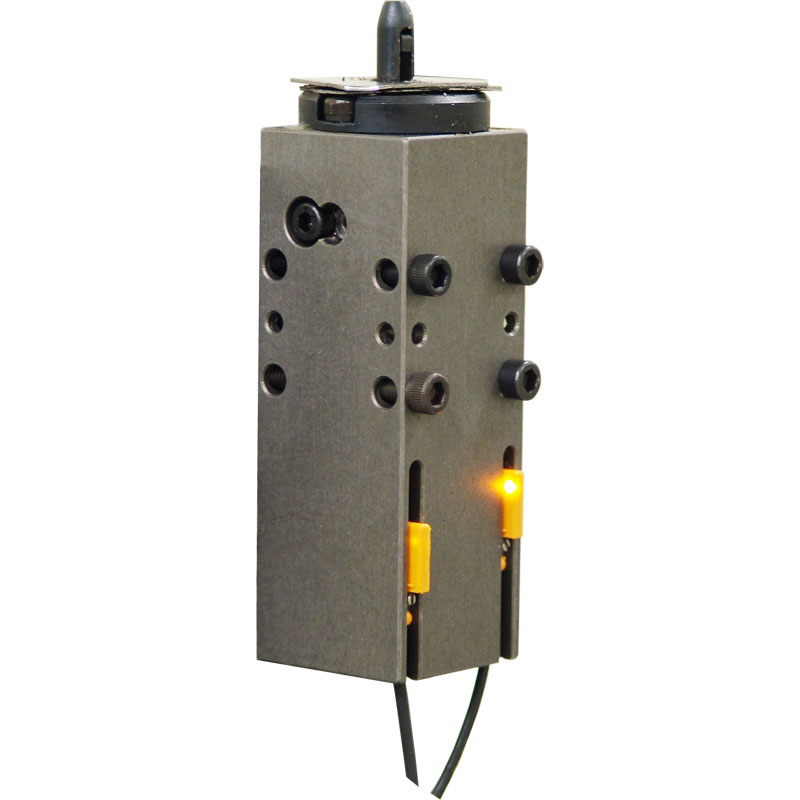

The PLC25 is a non-locking light-duty pin locator clamp designed to clamp through small holes or slots.
Key Specifications | |
|---|---|
Clamping Force | 222 N |
Standard Hole Slot Size | 6mm – 12mm |
Clamping Force | 222N @ 5.5 BAR [50 lbf @ 80PSI] |
Finger Travel | 6mm Total (3mm rotational, 3mm straight line pull down stroke) |
Overall Dimensions | 31.8 (L) x 31.8 (W) x 115mm (H) |
Weight | .28 kg [.62 lb] |
- Plastics
- Stamping and Press Room
- Automation
- Nesting
- Fixtures and Test Fixtures
- Compact and Lightweight
- Designed for High Production
- Common Mounting Pattern with BTM’s Light-duty Clamps and Grippers
- Locating Pin (6 – 12mm)
- Position Sensing DC Switch
