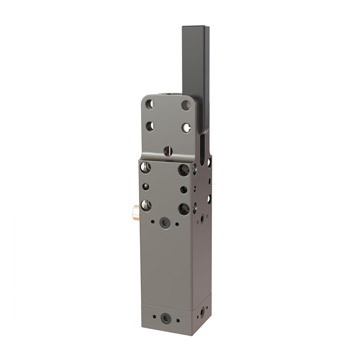

BTM standard general purpose horizontal clamp has an arm opening of 110°.
Key Specifications | |
|---|---|
Clamping Torque |
135.6 Nm @ 5.5 BAR [100 lbf @ 80PSI] |
Standard Arm Length |
127mm |

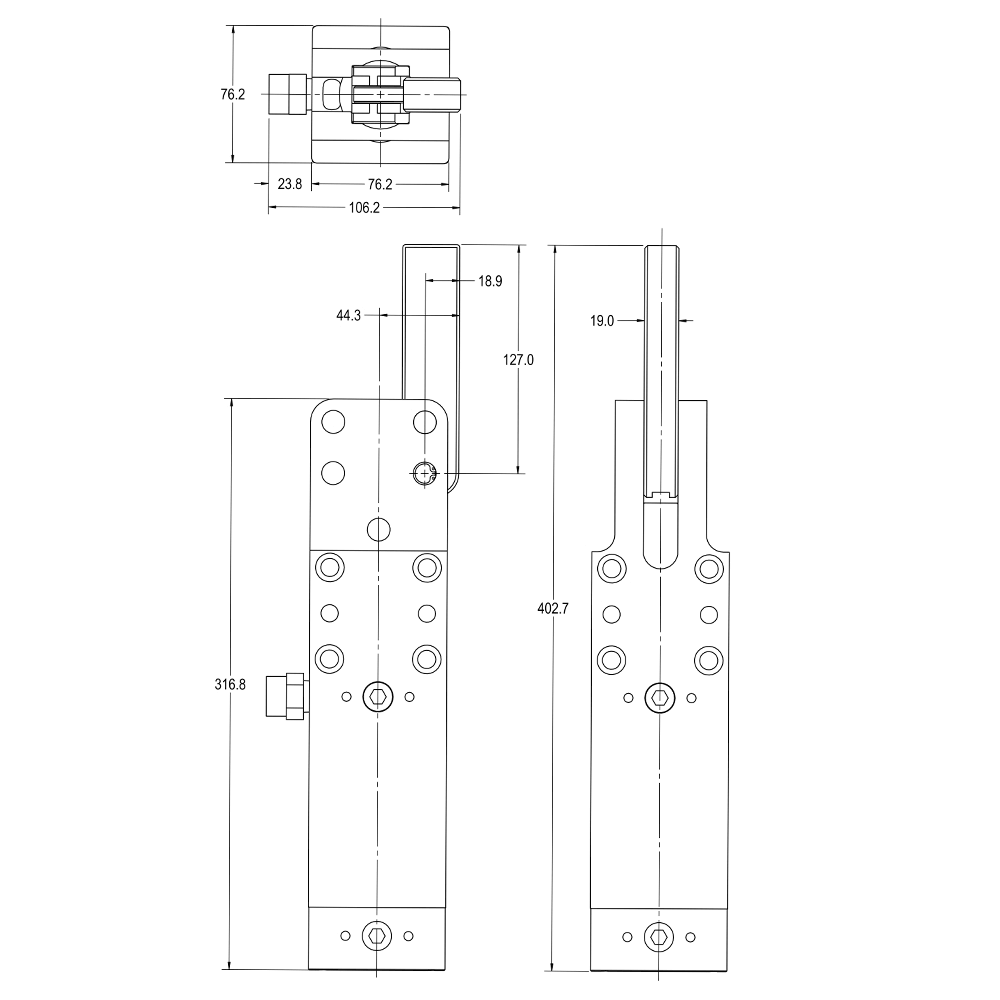

Overall Dimensions |
76.2 (L) x 106.2 (W) x 402.7mm (H) |
Weight |
5 kg [11 lb] Including Arm |
