The largest TPCA power clamp comes with an integrated 82mm oval cylinder.
Key Specifications | |
|---|---|
Holding Torque | 745 Nm [550 lbf] |
Clamping Torque | 496.2 Nm @ 5.5 BAR [366 lbf @ 80 PSI] |
Standard Arm Lengths | 155 - 395mm |

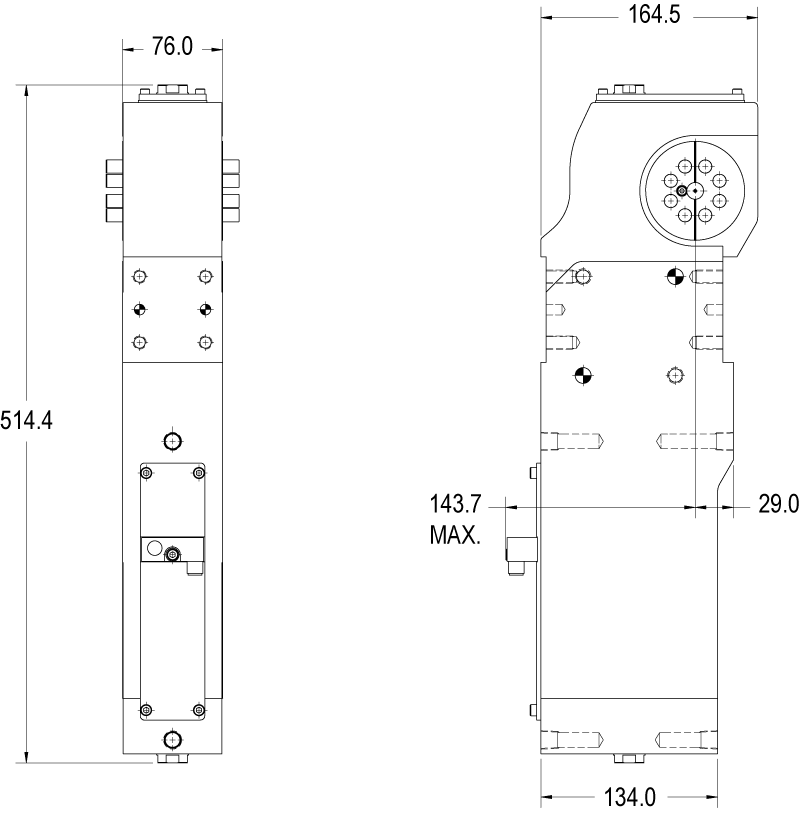

Overall Dimensions | 514.4mm (L) x 76mm (W) x 164.5mm (H) without arm |
Weight | 14.3 kg [31.5 lbs] Without Arm |
- Weld Cells
- Automation
- Nesting
- Fixtures and Test Fixtures
- Harsh Environments
- Automation Positioning
- Component Assembly
- Pin Arm Drive for Versatile Arm Positioning and Simplified Arm Change

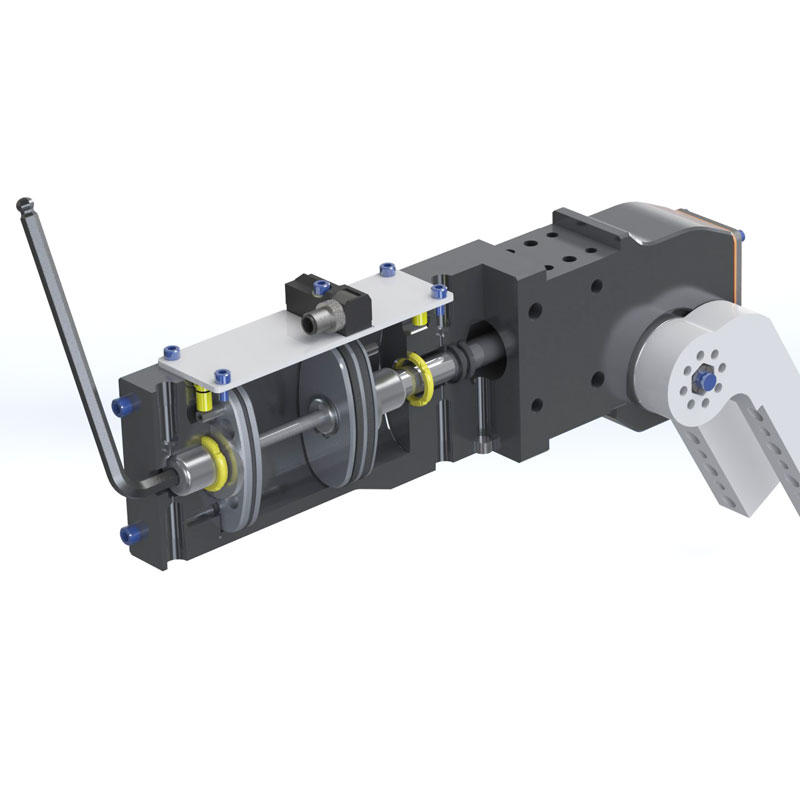

- Fully Adjustable Arm Opening to 120°
- Integrated Proximity Switch
- Top and Bottom Porting
- One Piece Body with Integrated Cylinder
- Sealed Mechanism – Lubricated for Life of Clamp
- Access to Manually Unlock Clamp Linkage

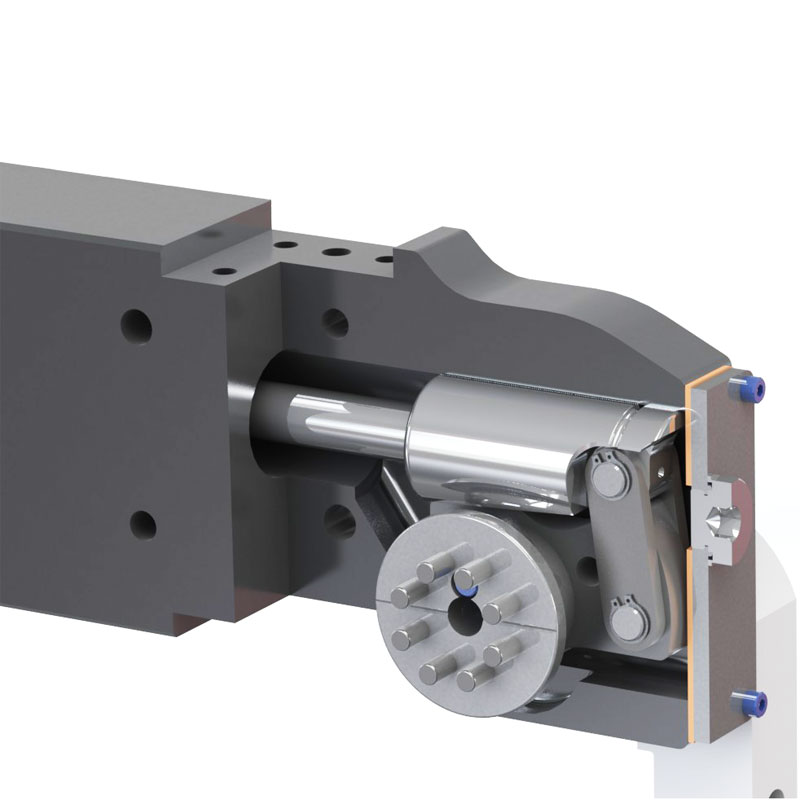

- Patented Precision TriLok Mechanism

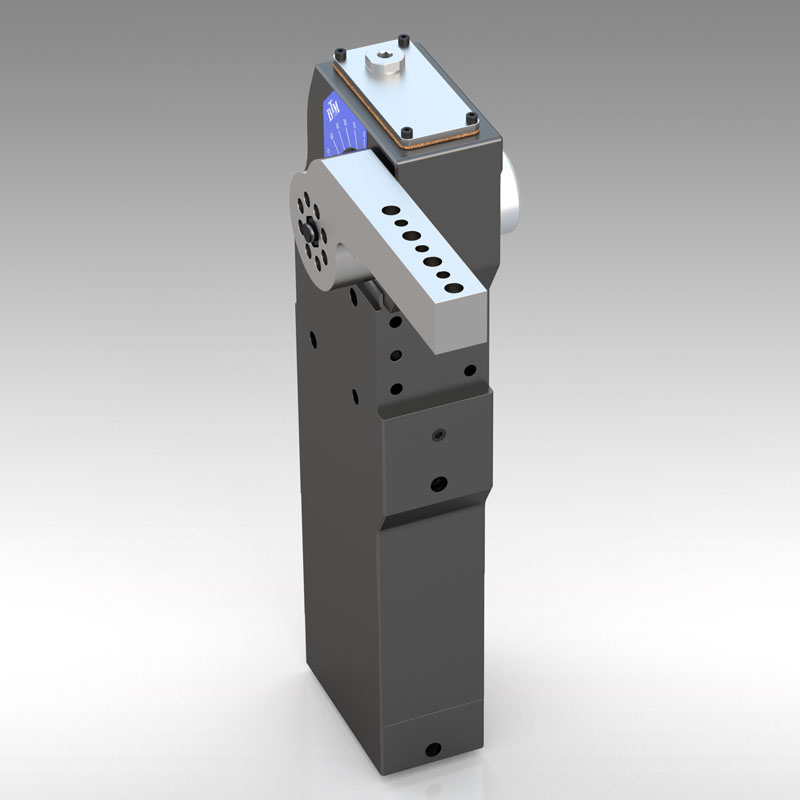

- Single Arm (Right or Left)

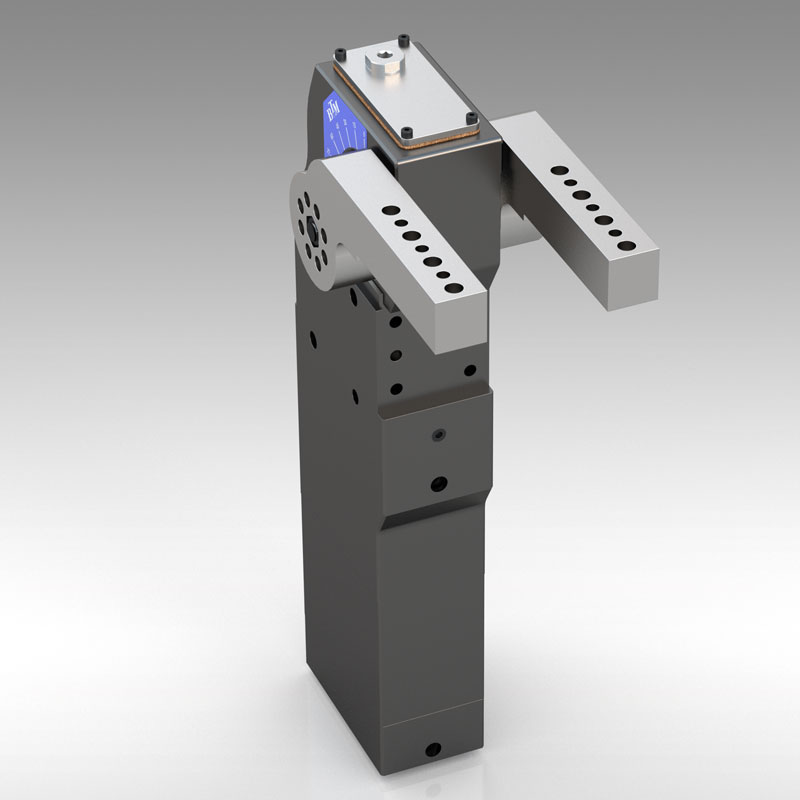

- Dual Arms
- Straight Arm
- Offset arms 25, 70 and 120mm
- Custom Offset available
- G 1/4 or 1/4 NPT
