The second largest TPCA power clamp comes with a 62mm oval cylinder.
Key Specifications | |
|---|---|
Holding Torque | 450 Nm [330 lbf] |
Clamping Torque | 257.6 Nm @ 5.5 BAR [190lbf @ 80PSI] |
Standard Arm Lengths | 135 – 285mm |

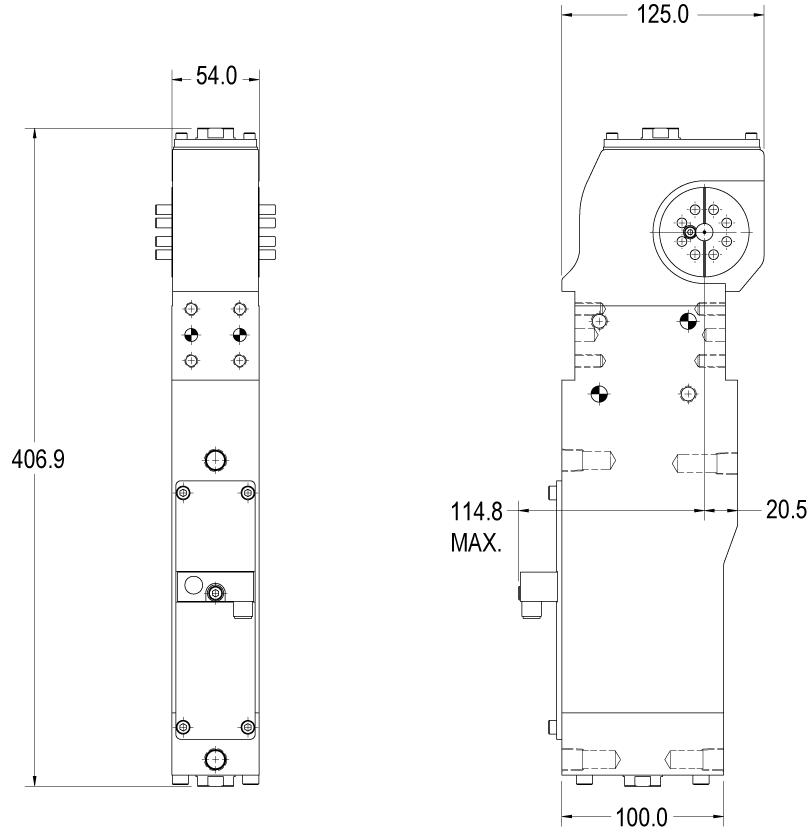

Overall Dimensions | 406.9 (L) x 54 (W) x 125mm (H) |
Weight | 5.8 kg [12.6 lb] Without Arm |
- Weld Cells
- Automation
- Nesting
- Fixtures and Test Fixtures
- Harsh Environments
- Automation Positioning
- Component Assembly
- Pin Arm Drive for Versatile Arm Positioning and Simplified Arm Change
- Fully Adjustable Arm Opening to 120°
- Integrated Proximity Switch
- Top and Bottom Porting
- One Piece Body with Integrated Cylinder
- Sealed Mechanism – Lubricated for Life of Clamp
- Self Pumping Slide Rod Lubrication
- Access to Manually Unlock Clamp Linkage
- Patented Precision TriLok Mechanism

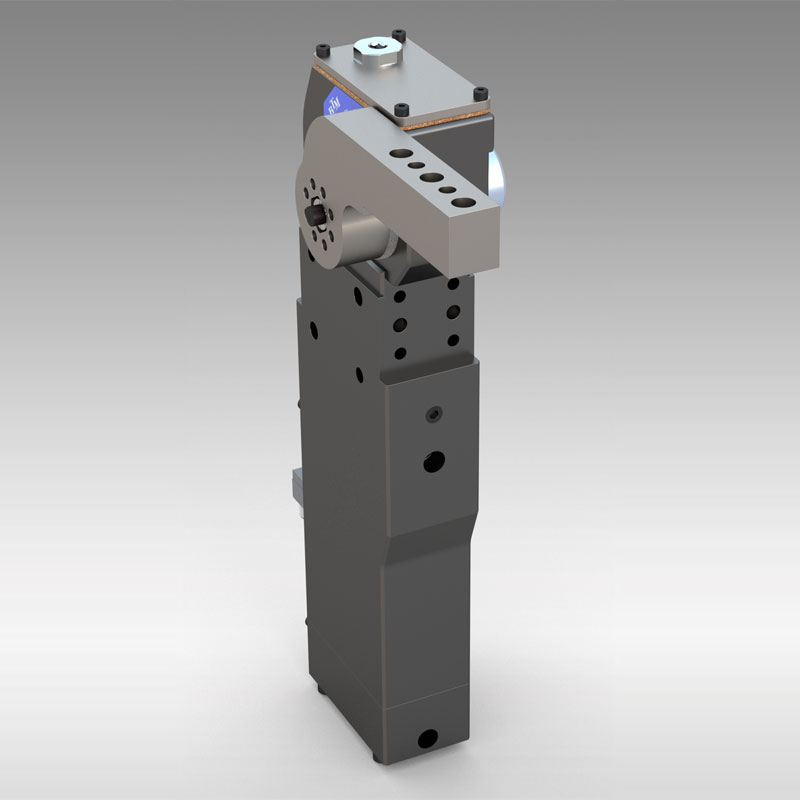

- Single Arm (Right or Left)

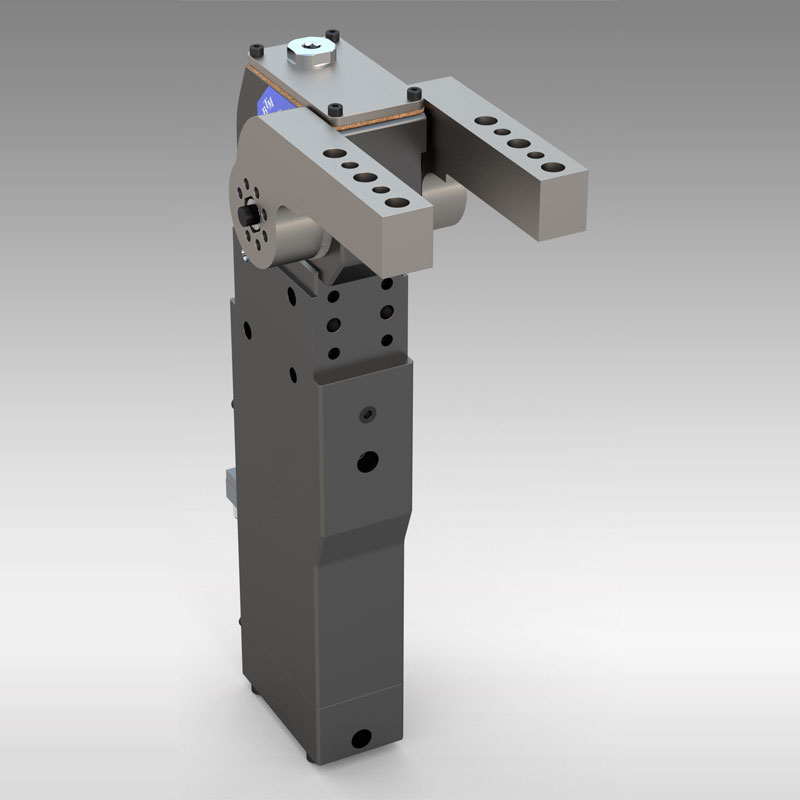

- Dual Arms
- Custom Designed Arms
- Straight Arm
- Offset Arms 10, 70 and 120mm
- Custom Offset available
- G 1/4 or 1/4 NPT
