The TPCA52 power clamp comes with a 52 mm overall cylinder.
Key Specifications | |
|---|---|
Holding Torque | 290 Nm [214 lbf] |
Clamping Torque | 89.5 Nm @ 5.5 BAR [66lbf @ 80PSI] |
Standard Arm Lengths | 90 – 150mm |

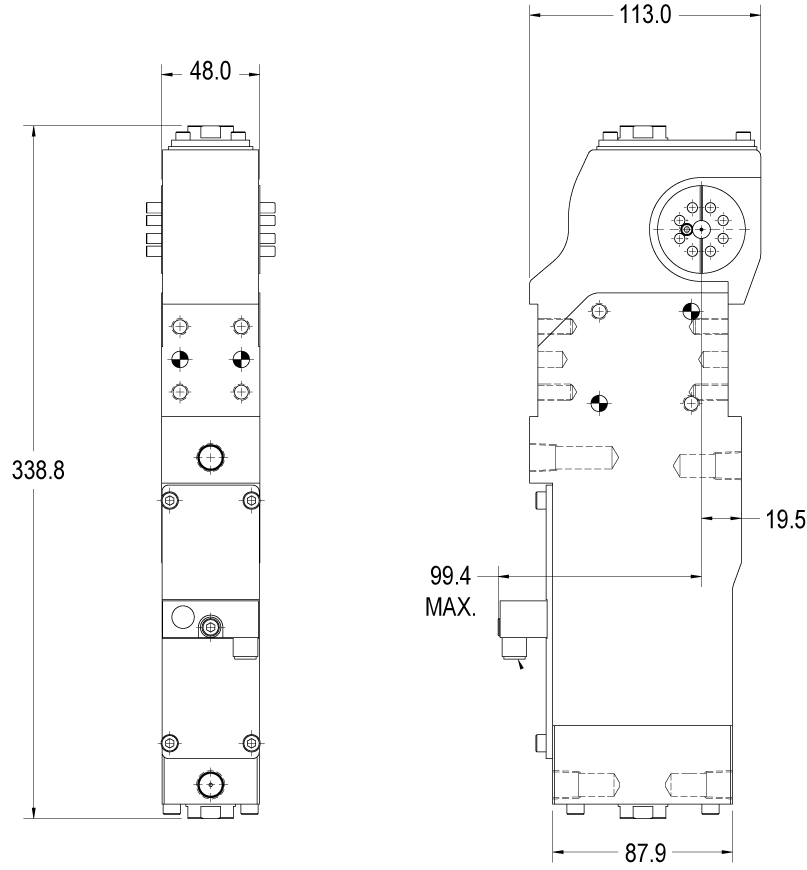

Overall Dimensions | 338.8 (L) x 48 (W) x 113mm (H) |
Weight | 3.8 kg [8.4 lb] Without Arm |
- Weld Cells
- Automation
- Nesting
- Fixtures and Test Fixtures
- Harsh Environments
- Automation Positioning
- Component Assembly
- Pin Arm Drive for Versatile Arm Positioning and Simplified Arm Change
- Fully Adjustable Arm Opening to 120°
- Integrated Proximity Switch
- Top and Bottom Porting
- One Piece Body with Integrated Cylinder
- Sealed Mechanism – Lubricated for Life of Clamp
- Access to Manually Unlock Clamp Linkage
- Patented Precision TriLok Mechanism

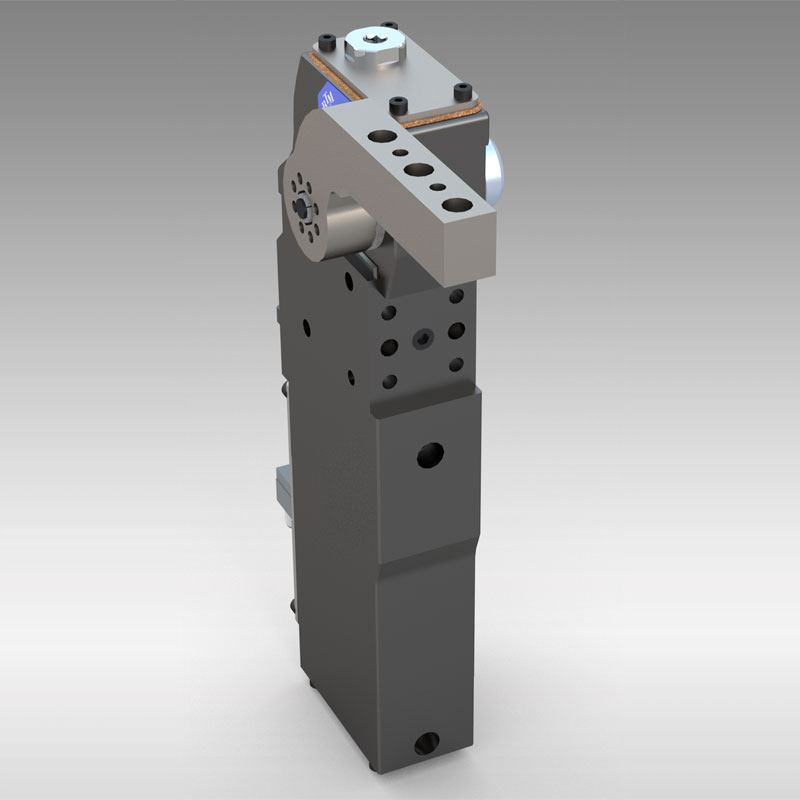

- Single Arm (Right or Left)

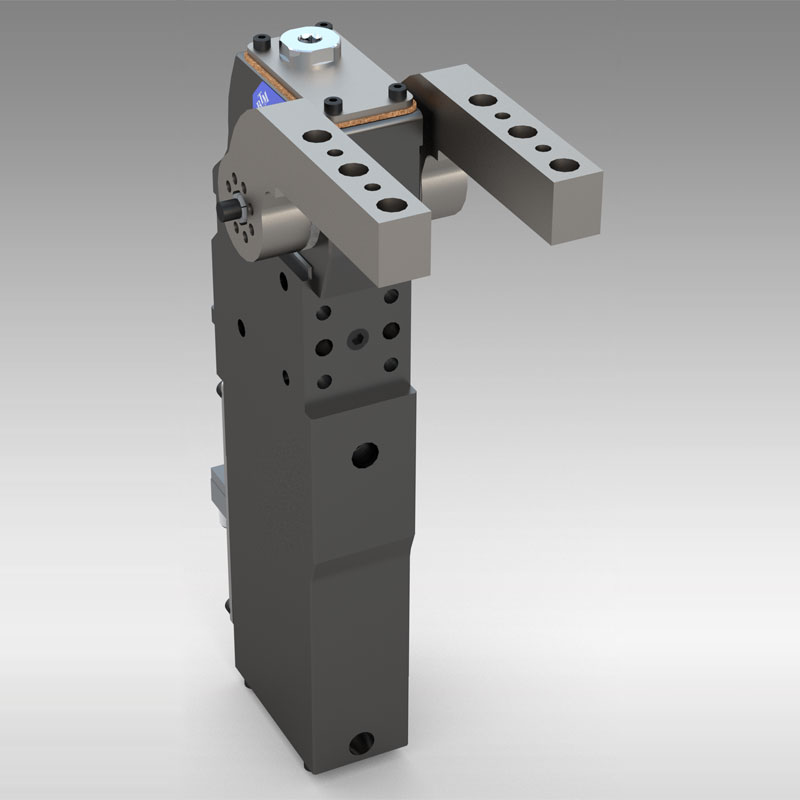

- Dual Arms
- Custom Designed Arms
- Straight Arm
- Offset Arms 25 and 50mm
- Custom Offset available
- G 1/4 or 1/4 NPT
