The TPCA42 is the smallest of the TPC adjustable series with a 42 mm oval cylinder.
Key Specifications | |
|---|---|
Holding Torque | 165 Nm [122 lbf] |
Clamping Torque | 43.4 Nm @ 5.5 BAR [32lbf @ 80PSI] |
Standard Arm Lengths | 90 – 150mm |

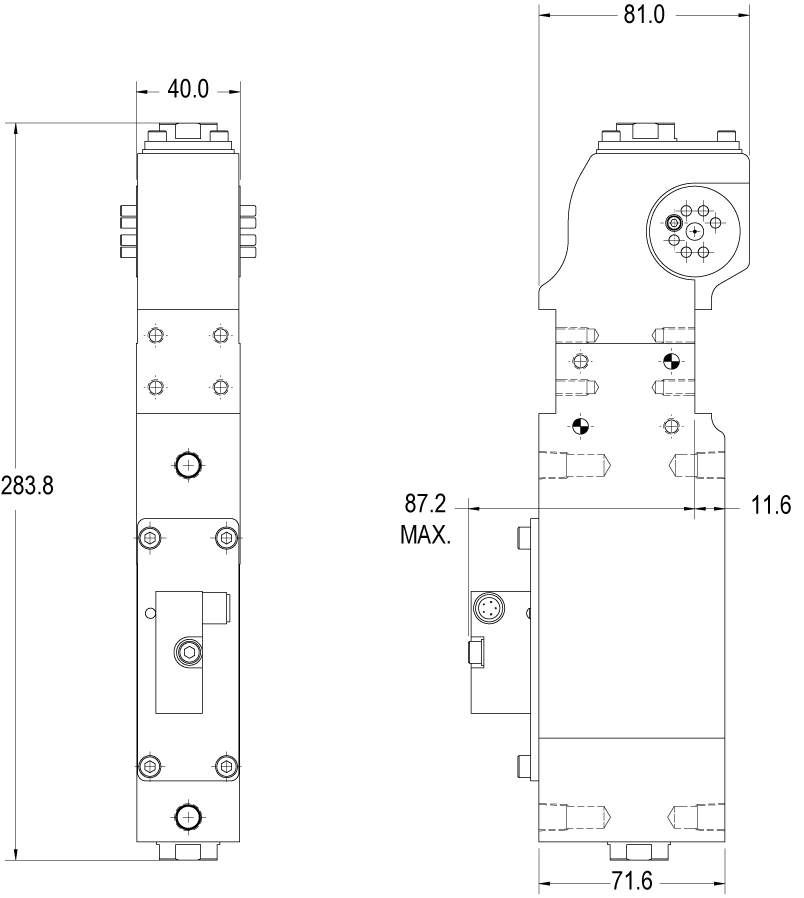

Overall Dimensions | 283.8 (L) x 40 (W) x 81mm (H) |
Weight | 2.0 kg [4.5 lb] Without Arm |
- Weld Cells
- Automation
- Nesting
- Fixtures and Test Fixtures
- Harsh Environments
- Automation Positioning
- Component Assembly
- Pin Arm Drive for Versatile Arm Positioning and Simplified Arm Change
- Fully Adjustable Arm Opening up to 120°
- Integrated Proximity Switch
- Top and Bottom Porting
- One Piece Body with Integrated Cylinder
- Sealed Mechanism – Lubricated for Life of Clamp
- Access to Manually Unlock Clamp Linkage
- Patented Precision TriLok Mechanism

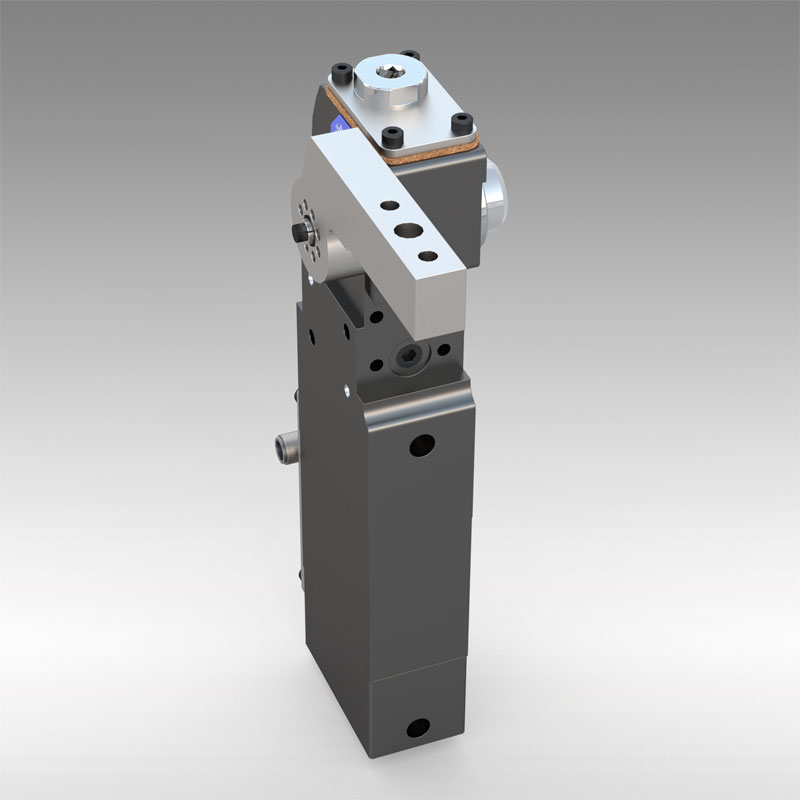

- Single Arm (Right or Left)

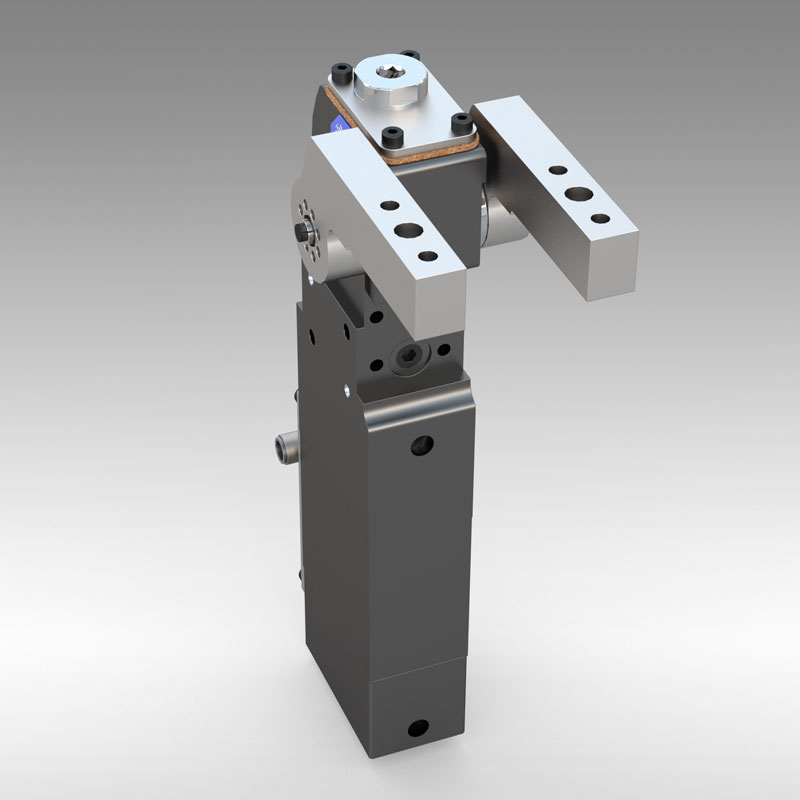

- Dual Arms
- Custom Designed Arms
- Straight Arm
- Arm Offsets 15mm and 45mm
- Custom Offset available
- G 1/8 or 1/8 NPT
