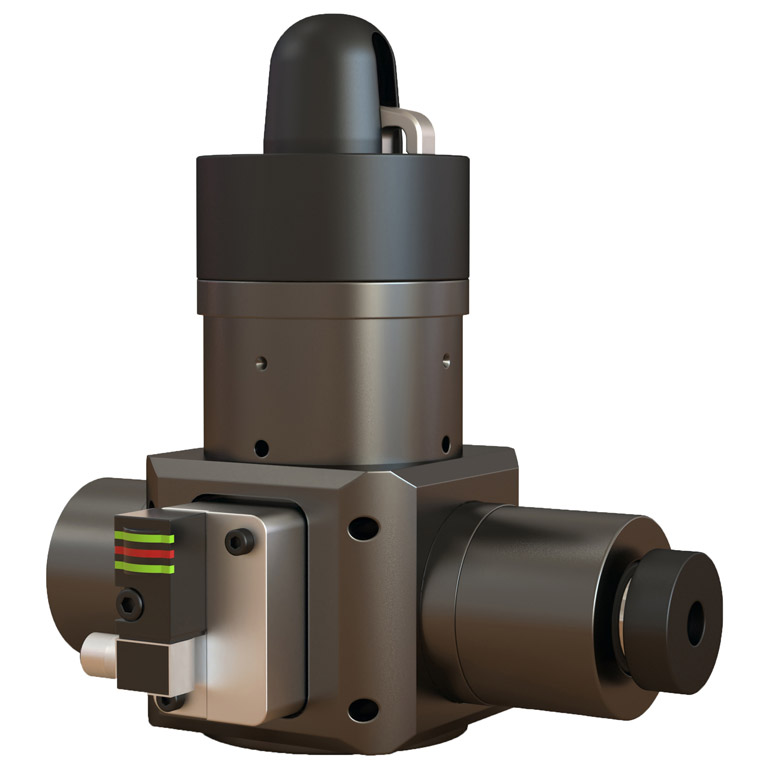

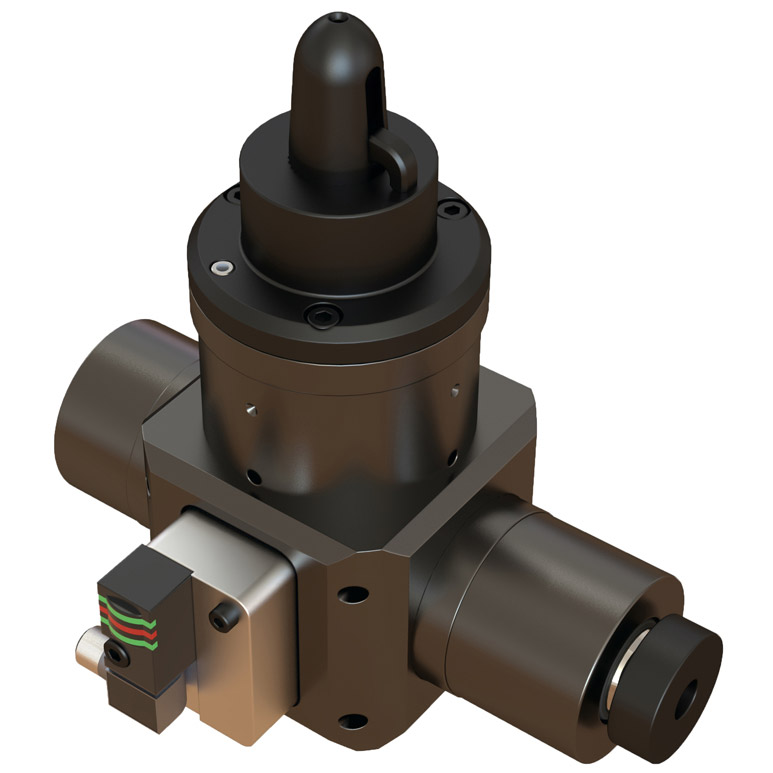

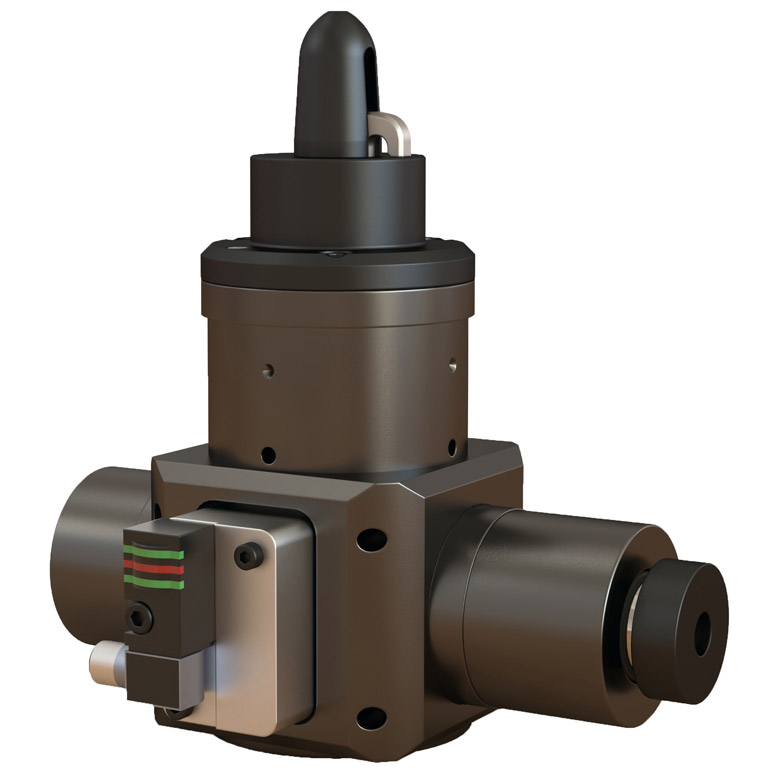

The CPC uses a cam driven locking pin locator clamp for high production and harsh environments.
Key Specifications | |
|---|---|
Standard Hole Slot Size | 25 mm, 40 mm |
Custom Hole Slot Sizes | 18 – 40 mm |
Clamping Force | 1223 N [275 lbf] @ 5.5 BAR [80 PSI] |
Finger Travel | 15 mm Total |
Finger Locking Range | 3.0 mm Locking Range From Clamping Surface |
Weight | 4.1 kg [9.1 lb], 4.8 kg [10.6 lb] |
- Automated Welding Cells
- Stamping & Press Room
- Palletized Assembly
- General Automation
- End of Arm Tooling
- Nesting
- Production Fixtures & Test Fixtures
- Harsh Environments
- High Volume Production
- Best-in-Class Contamination Resistance
- Modular Design Addresses Wide Range of Customer Needs
- Designed for Easy Fixture Integration & Mounting
- Clamp Finger Rotates 180°
- Remains Locked if Air Pressure is Removed
- Simple Manual Unlock
- 360° Mounting
- Quick Change Pin & Clamp Finger Kits
- Aerospace Grade Aluminum
- Aluminum Hardcoated for Durability & Weld-Spatter Resistance
- Can be used as Replacement for Existing LPLC-38 Applications
- Easy to Repair
- Pin Diameters Available 18 to 40 mm
- Custom Pin Configurations
- Custom Fingers
- Custom Donuts
- Lower Mount Extension

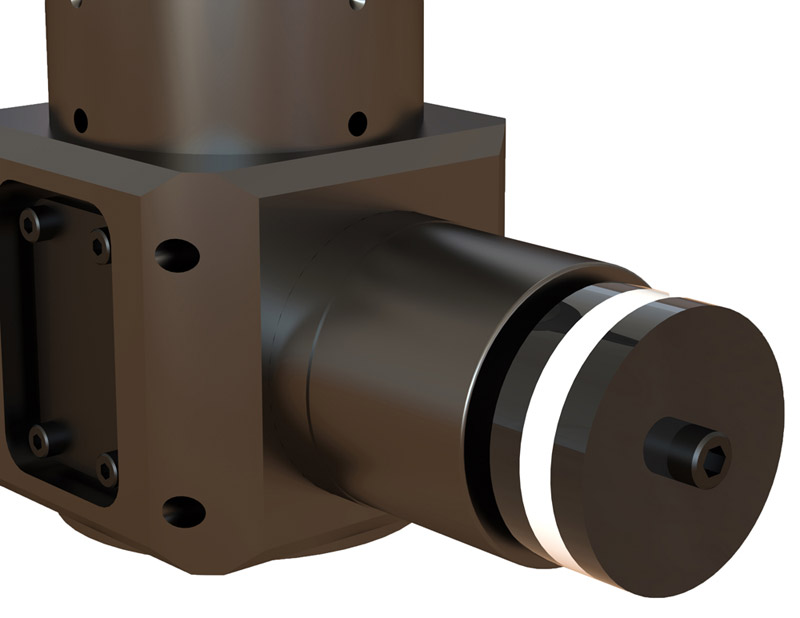

- Alternative Camera Sensing Flags
- Proximity Switches
