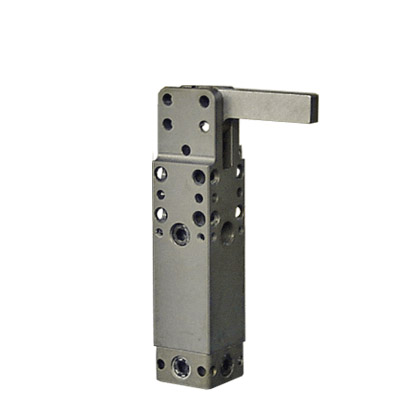

PC1500-V130
BTM standard general purpose vertical clamp has an arm opening of 130°.
Key Specifications | |
|---|---|
Clamping Torque | 36.1 Nm @ 5.5 BAR [26.7lbf @ 80PSI) |
Standard Arm Length | 76mm |

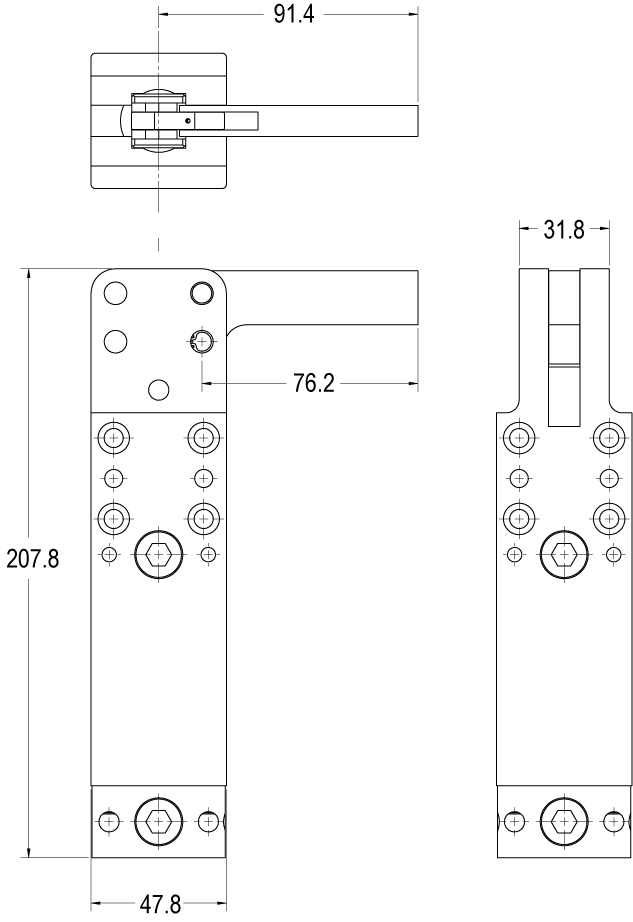

Overall Dimensions | 47 (L) x 115.3 (W) x 207.8mm (H) |
Weight | 1.4 kg [3 lb] Without Arm |
- Automation
- Nesting
- Fixtures and Test Fixtures
- Automation Positioning
- Component Assembly
- 4-sided Symmetrical Mounting for Quick and Accurate Repositioning
- Integral Cylinder
- High Clamping Forces
- Long Work Life
- Compact and Lightweight
- Porting on all 4 sides
- Flange Mount End Cap
- 3/8 NPT Ports
- DC Proximity Switch
- AC Proximity Switch
