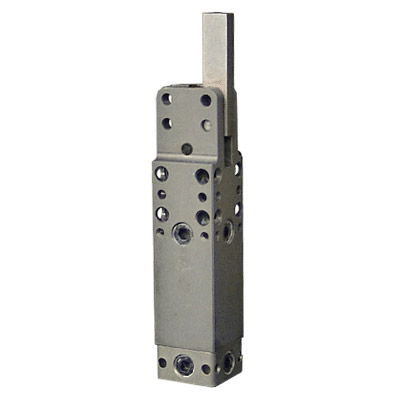

PC1500-H110
BTM standard general purpose horizontal clamp has an arm opening of 110°.
Key Specifications | |
|---|---|
Clamping Torque | 36.1 Nm @ 5.5 BAR [26.7lbf @ 80PSI] |
Standard Arm Length | 3mm |

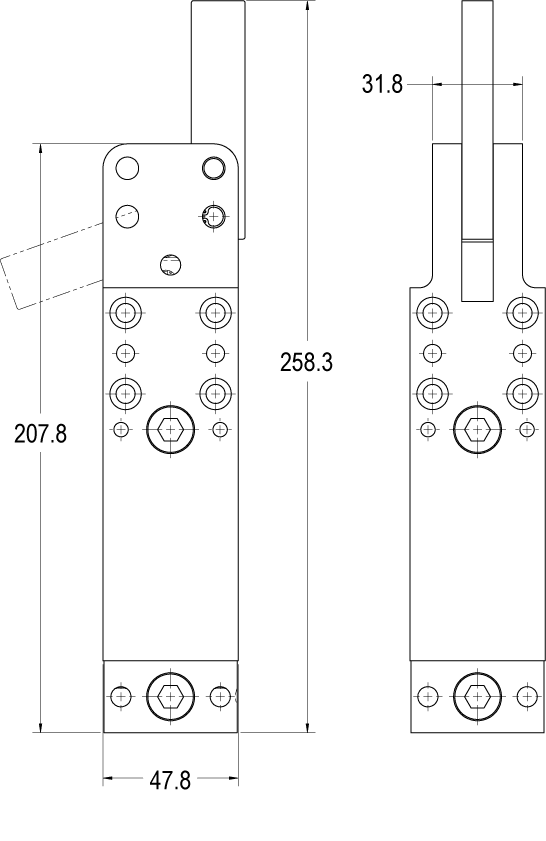

Overall Dimensions | 253.49 (L) x 47.0 (W) x 50.0 mm (H) |
Weight | 1.4 kg [3 lb] |
- Automation
- Nesting
- Fixtures and Test Fixtures
- Automation Positioning
- Component Assembly
- 4-sided Symmetrical Mounting for Quick and Accurate Repositioning
- Integral Cylinder
- High Clamping Forces
- Long Work Life
- Compact and lightweight
- Porting on all 4 sides
- Flange Mount
- 3/8-18 NPT Ports
- DC Proximity Switch
- AC Proximity Switch
