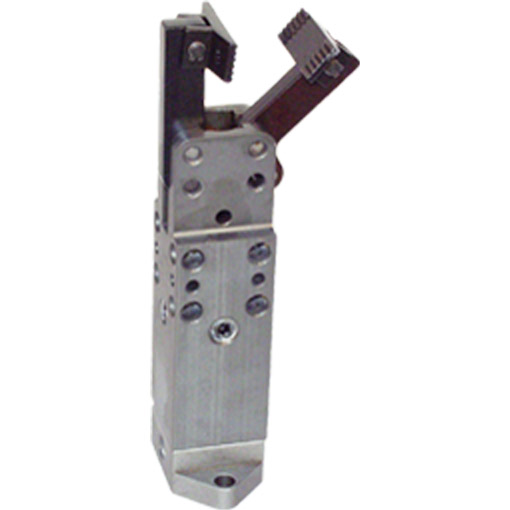

PG1500-S45
The one-piece precision machined gripper body maintains exceptional alignment of the cylinder to the toggle mechanism for superior reliability.
Key Specifications | |
|---|---|
Gripping Torque | 18.1 Nm @ 5.5 BAR [13.3lbf @ 80PSI] |
Overall Dimensions | 47.75 (L) x 92 (W) x 258.6 mm (H) |
Weight | 1.4 kg [3 lb] |
- Stamping and Press Room
- Automation
- Automation Positioning
- Component Assembly
- Fixtures and Test Fixtures
- Positive Locking Toggle Action with Air Pressure
- Hard Coated Aircraft Aluminum Body
- Optional Pre-Fitted Proximity Switches
- Lightweight
- Rugged Construction
- 4 Sided Symmetrical Mounting for Accurate Repositioning
- Ports on all 4 sides
- Self-Aligning Gripper Pads
- Steel
- Thin
- Full
- Double
- Urethane
- Thin
- Full
- Double
- Special Urethane Pads
- Steel
- Gripper Mounts
- Flange Mount
- Port Type
- 3/8-18 NPTF
- Switch Options
- Proximity DC Switch
- Proximity AC Switch
