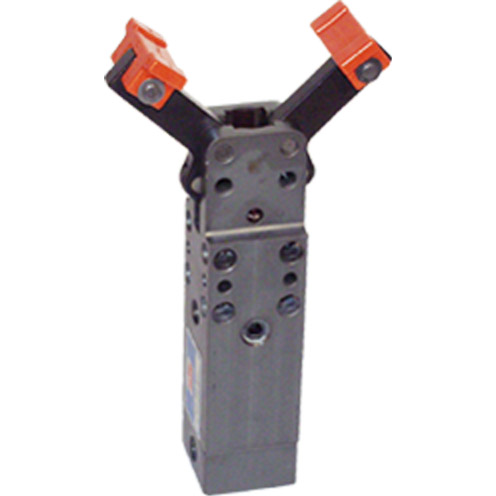

PG1500-D90
The PG 1500-D90 is a one-piece precision machined gripper body that maintains cylinder alignment with the toggle mechanism for superior reliability.
Key Specifications | |
|---|---|
Gripping Torque | 18.1 Nm @ 5.5 BAR [13.3lbf @ 80PSI] |

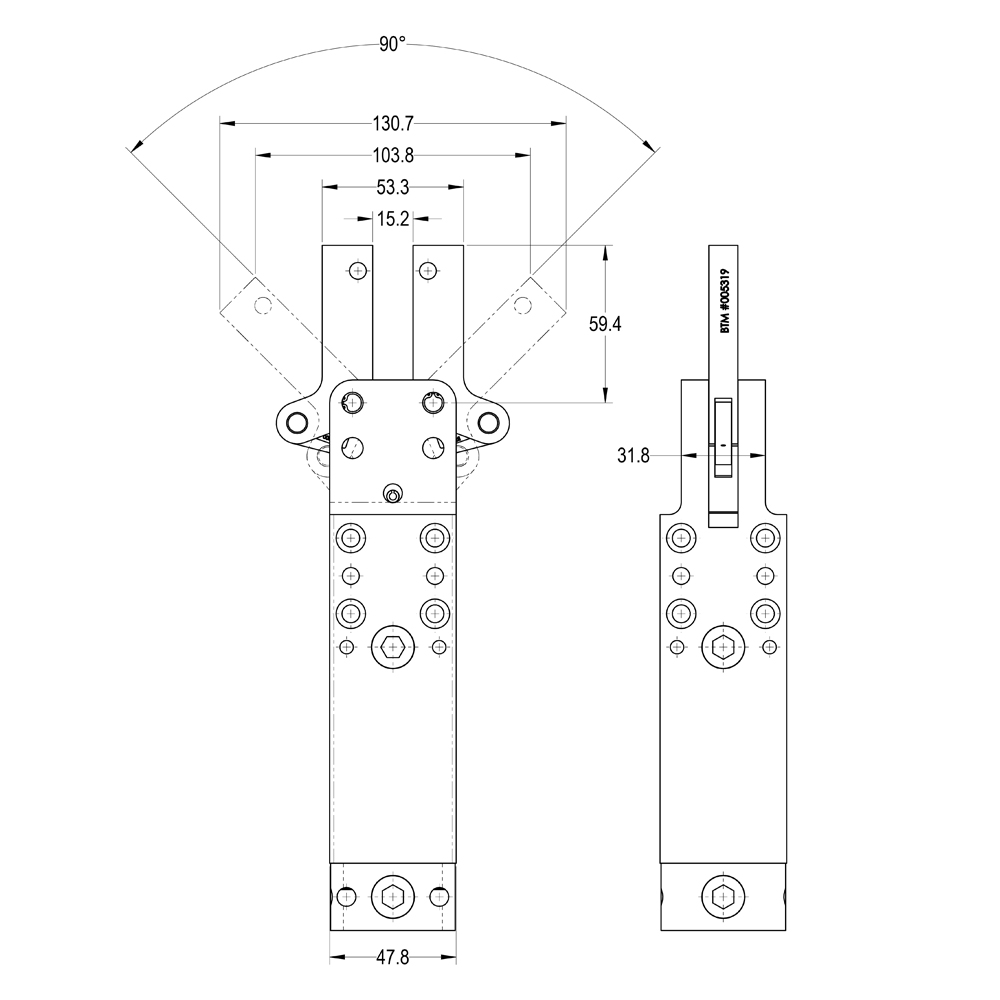

Overall Dimensions | 47.75 (L) x 130.71 (W) x 258.6 mm (H) |
Weight | 1.4 kg [3 lb] |
- Stamping and Press Room
- Automation
- Automation Positioning
- Component Assembly
- Hard Coated Aircraft Aluminum Body
- Optional Pre-Fitted Proximity Switches
- Lightweight
- Rugged Construction
- 4 Sided Symmetrical Mounting for Accurate Repositioning
- Ports on all 4 sides
- Gripper Pads
- Serated
- Smooth
- Urethane
- Flange Mount End Cap
- 3/8-18 NPT Ports
- DC Proximity Switch
- AC Proximity Switch
