The TPC32 is a compact and lightweight Power Clamp featuring a three-point locking system, and contamination seal. It is designed to remain locked even when air pressure is lost. The built-in pin riser allows weld gun arms to easily clear the clamp mechanism and mounting brackets. It is also able to reach the area around the pin and go into deeper cross-sections. All this reduces the need for complex brackets and risers.
Key Specifications | |
|---|---|
Clamping Torque | 12.4 Nm @ 5.5 BAR [9.16lbf @ 80PSI] |
Standard Arm Length | 85mm |

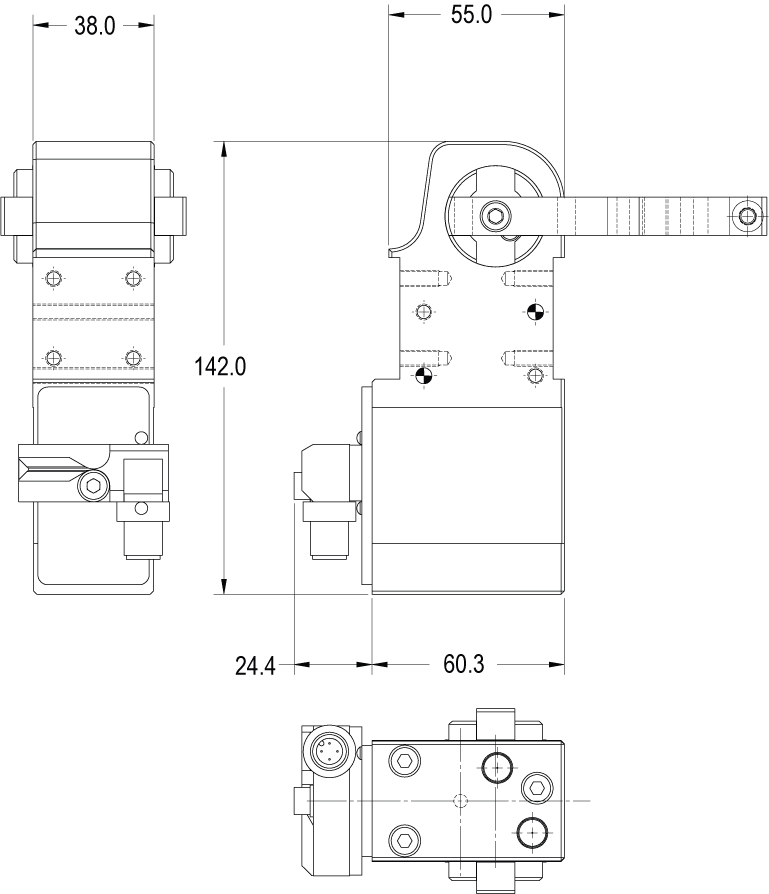

Overall Dimensions | 142 (L) x 38 (W) x 47mm (H) (Without Arm) |
Weight | 1.0 kg [2.21 lb] Without Arm |
- Weld Cells
- Stamping and Press Room
- Automation
- Nesting
- Fixtures & Test Fixtures
- Harsh Environments
- Injection Molding
- Automation Positioning
- Component Assembly
- Integrated Proximity Switch
- One Piece Body with Integrated Cylinder
- Sealed Mechanism – Lubricated for Life of Clamp
- Access to manually unlock clamp linkage
- Patented TriLok Mechanism
- Remains locked when air pressure is removed
- Arm Options

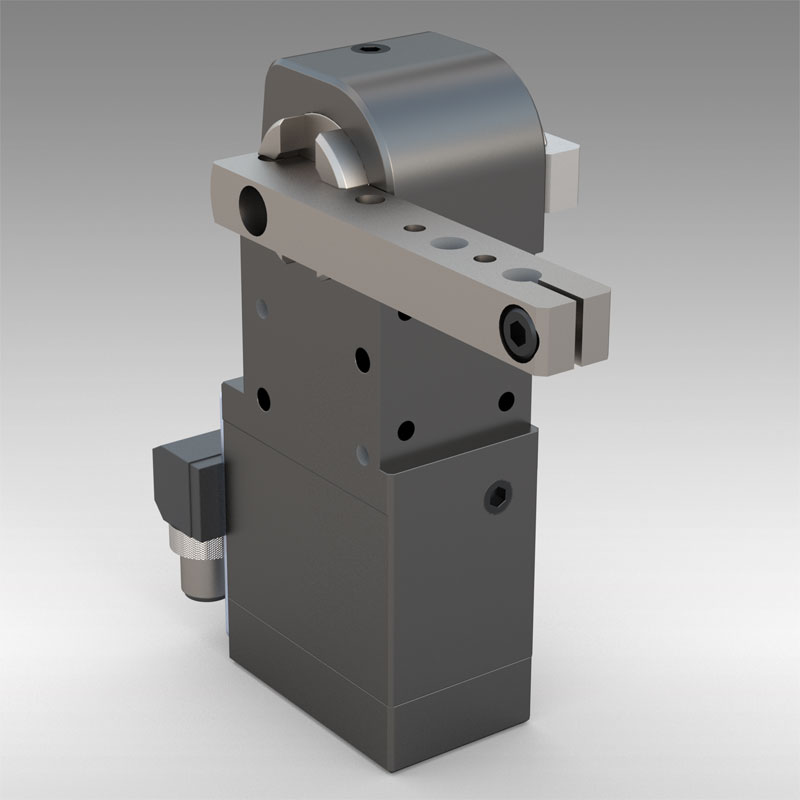

- Single Arm

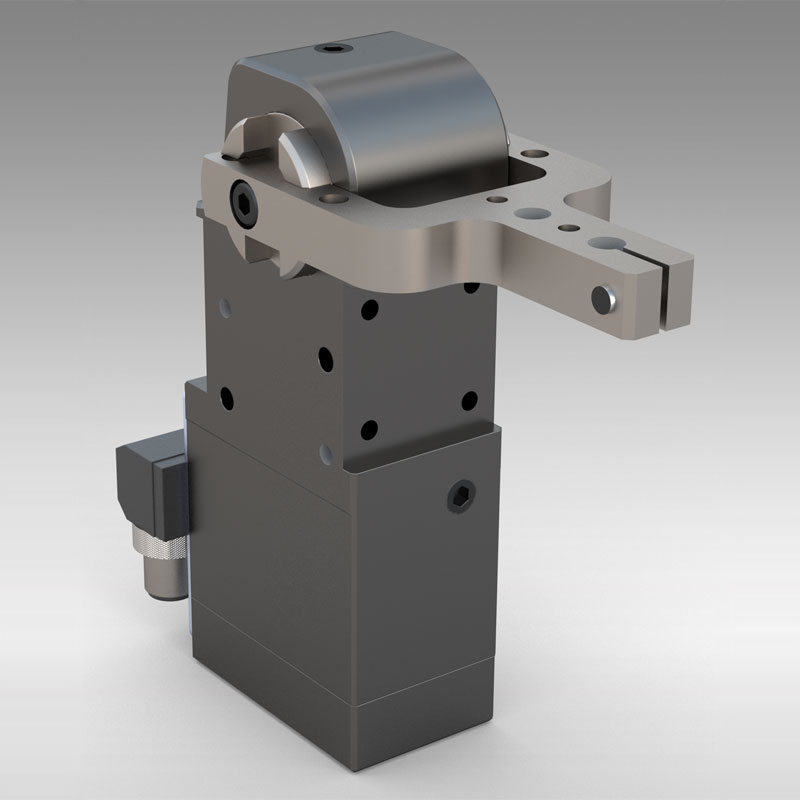

- Dual Arms
- Custom Designed Arms
- Straight Arm
- Yoke Arm
- Offset Arm Mount available
- 35 - 120° Arm Opening
- Port Type
- G 1/8 or 1/8 NPT
