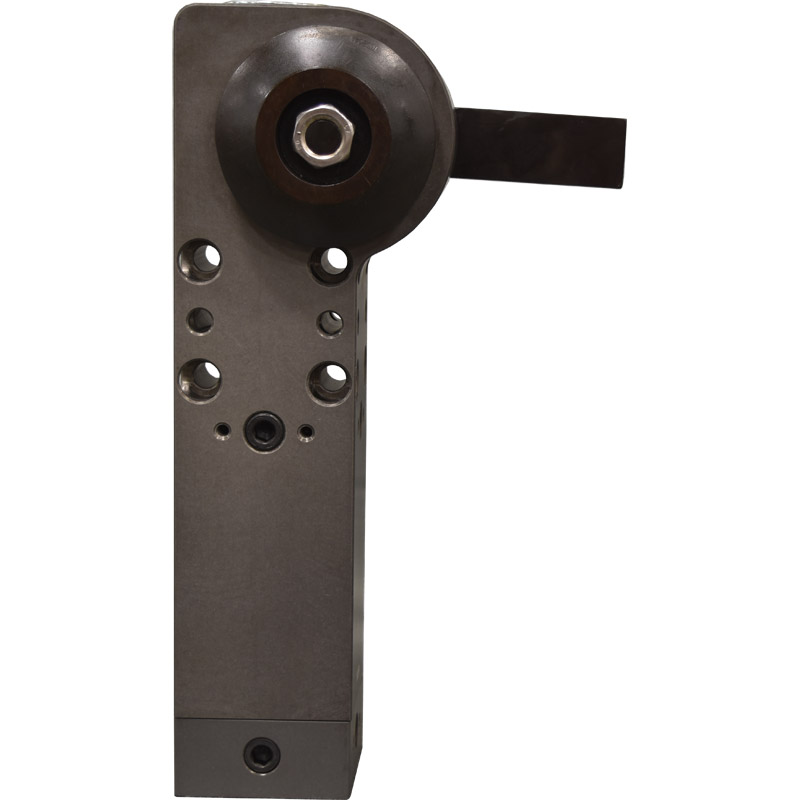

SO 2500
Sealed Offset
The S02500 Sealed Offset Clamp is the largest and most powerful Sealed Offset Clamps.
Key Specifications | |
|---|---|
Clamping Torque | 135.6 Nm @ 5.5 BAR [100lbf @ 80PSI] |
Standard Arm Length | 127mm |

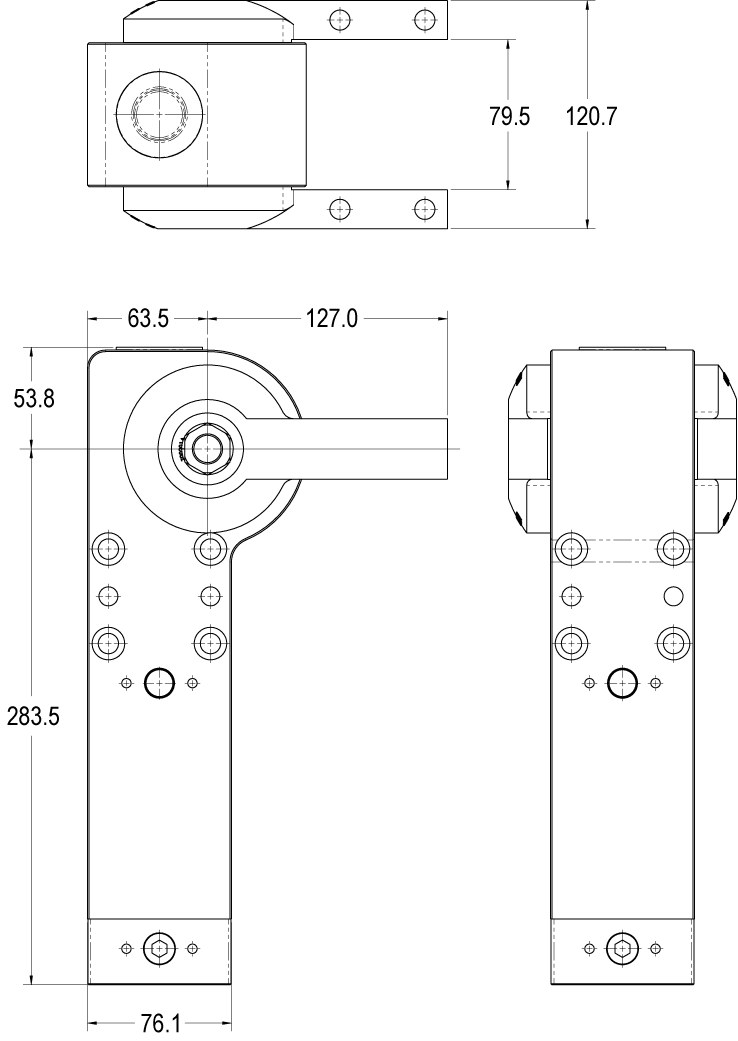

Overall Dimensions | 336 (L) x 120.6 (W) x 76.2mm (H) |
Weight | 9 kg [20 lb] Without Arm |
- Welding Environments
- Automation
- Nesting
- Fixtures & Test Fixtures
- Harsh Environments
- Automation Positioning
- Component Assembly
- Pin Arm Drive for Versatile Arm Positioning and Simplified Arm Change
- Arm Opens 130°
- Porting on all 4 sides
- One Piece Body with Integrated Cylinder
- Sealed Mechanism – Lubricated for Life of Clamp
- Single Arm (Right or Left)
- Dual Arms
- Straight Arm
- 45° Interchangeable Arm Position
- 3/8-18 NPT Ports
- DC Proximity Switch
- AC Proximity Switch
