SO 1500
Sealed Offset
BTM’s 1500 Series Sealed Offset Clamp have 1.5" cylinder.
Key Specifications | |
|---|---|
Clamping Torque | 36.1 Nm @ 5.5 BAR [26.6lbf @ 80PSI] |
Standard Arm Length | 76.2mm |

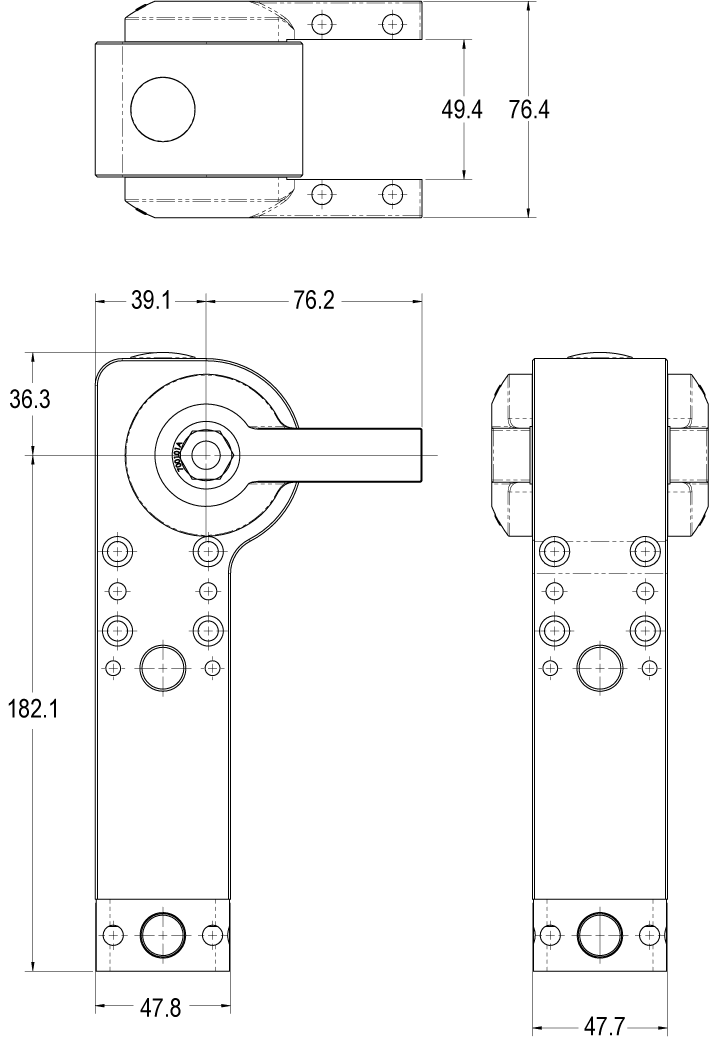

Overall Dimensions | 216 (L) x 76.2 (W) x 47.75mm (H) |
Weight | 2 kg [4.5 lb] Without Arm |
- Welding Environments
- Automation
- Nesting
- Fixtures & Test Fixtures
- Harsh Environments
- Injection Molding
- Automation Positioning
- Component Assembly
- Pin Arm Drive for Versatile Arm Positioning and Simplified Arm Change
- Arm opens 130°
- Porting on all 4 sides
- One Piece Body with Integrated Cylinder
- Sealed Mechanism – Lubricated for Life of Clamp
- Over-Center Locking
- Single Arm (Right or Left)
- Dual Arms
- Adjustable Arm Positioning (+/- 2 Degrees of precise closed arm position adjustment)
- Straight Arm
- 45° Interchangeable Arm Position
- 3/8-18 NPT Ports
- DC Proximity Switch
- AC Proximity Switch
