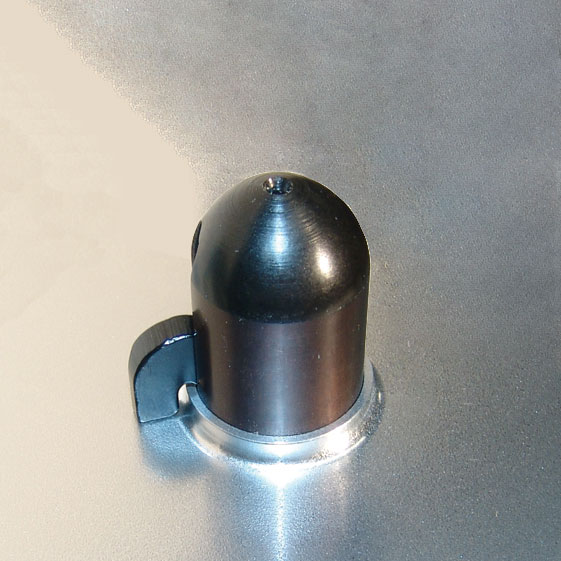

The PLC63 is a non-locking pin locator clamp designed to clamp through holes or slots. These clamps reduce cost by accurately locating through datum holes and clamping a part with only one device.
Key Specifications | |
|---|---|
Hole Slot Range | 18mm – 40mm |
Clamping Force | 1334N @ 5.5 BAR [300lbf @ 80PSI] |
Finger Travel | 15mm Total (5mm rotational, 10mm straight line pull down stroke) |
Overall Dimensions | 78.5 (L) x 87.4 (W) x 313.5mm (H) |
Weight | 3.04 – 3.99 kg [6.70 – 8.79 lb] With Pin |
- Stamping and Press Room
- Automation
- Nesting
- Fixtures and Test Fixtures
- Switch Package - Mounts in Four Different Orientations
- (2) 360° Diameter Mounting Locations
- Manual Drive Option
- Locating Pin (20 - 40mm) Available
- G 1/8 or 1/8 NPT Ports
- DC Switch Package
