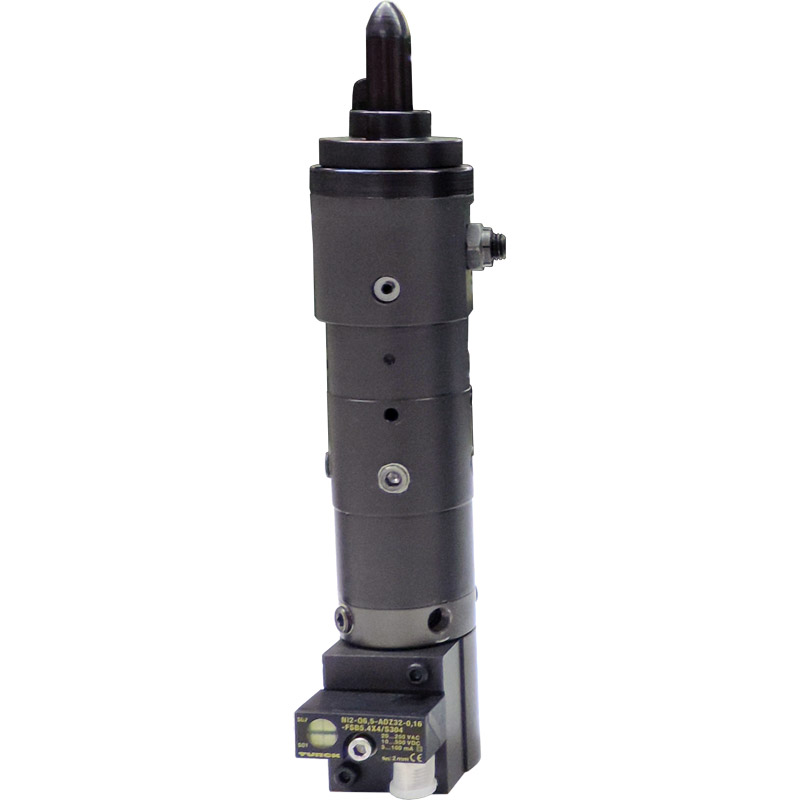

PLC45
BTM Pin Clamps reduce cost by both accurately locating through datum holes and clamping a part with one device. The PLC45 is a non-locking pin locator clamp designed to clamp through holes or slots.
Key Specifications | |
|---|---|
Hole Slot Range | 12.5mm – 18mm |
Clamping Force | 578N @ 5.5 BAR [130lbf @ 80PSI) |
Finger Travel | 15mm Total (5mm rotational, 10mm straight line pull down stroke) |
Overall Dimensions | 76.7 (L) x 58.9 (W) x 285.6mm (H) |
Weight | 1.55 – 1.56 kg [3.41 – 3.44 lb] Without Arm |
- Stamping and Press Room
- Automation
- Nesting
- Fixtures and Test Fixtures
- Switch Package - Mounts in Four Different Orientations
- (2) 360° Diameter Mounting Locations
- Manual Drive Option
- Locating Pin Diameters (13mm or 16mm)
- G 1/8 or 1/8 NPT Ports
- DC Switch Package
