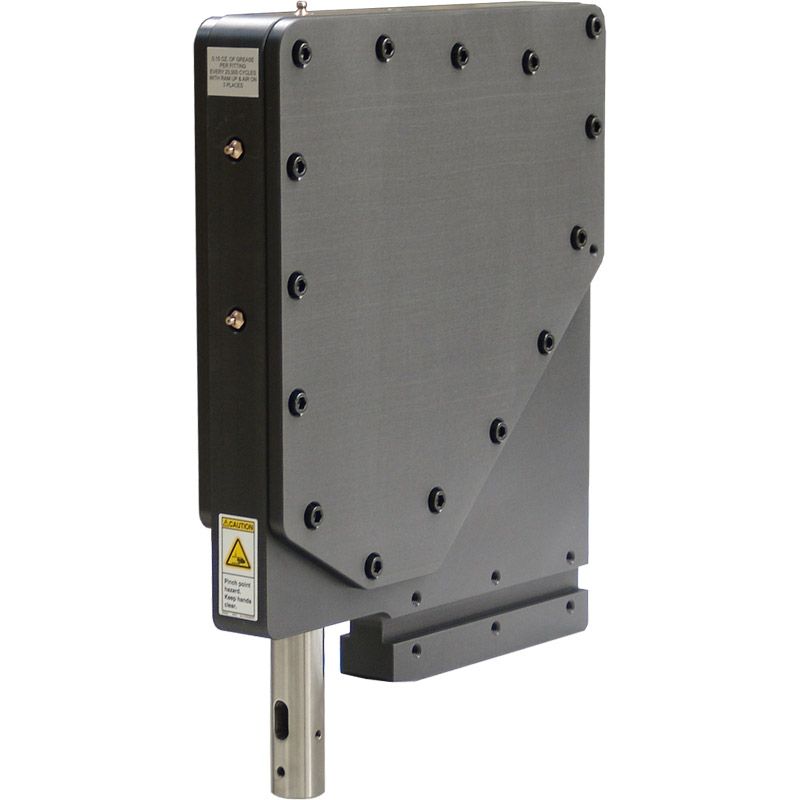

Series 5
Key Specifications | |
|---|---|
Toggle Force Output | 5 Tons |
Stroke | 76mm or 114mm |
Operating Pressure | 5.5 BAR (80 PSI) |
Overall Dimensions | 381 (L) x 76 (W) x 478mm (H) |
Weight | 32 kg [70 lbs] |
- Clinching
- Piercing
- Riveting
- Stamping
- Bending
- Coining
- Shearing
- Notching
- Fastener Insertion
- 60 Strokes Per Minute
- 76 or 101 Standard Stroke
- Thin Profile for Close Stacking
- Non-Rotating Ram
- Simple Pneumatic Advance/Retract Operation
- Stroke lengths from 76 to 101
- Ram Options
- Lengths from 304 to 375
- Internally Threaded (PTA)
- Externally Threaded (TE)
- Custom Configuration (S)
- Port Type
- 1/2” NPT Port
- Switch Options
- Advance/Retract Toggle Position Sensing
- Ram Latch Sensing
- Standard or Custom Force Frames Available
- Self-Equalizing Available
- Control Packages
- Force Monitoring Packages
- Die Set Tooling Package
- Ram Latch
- Tooling Package
- Proximity Switches
- End of Stroke Cushions
