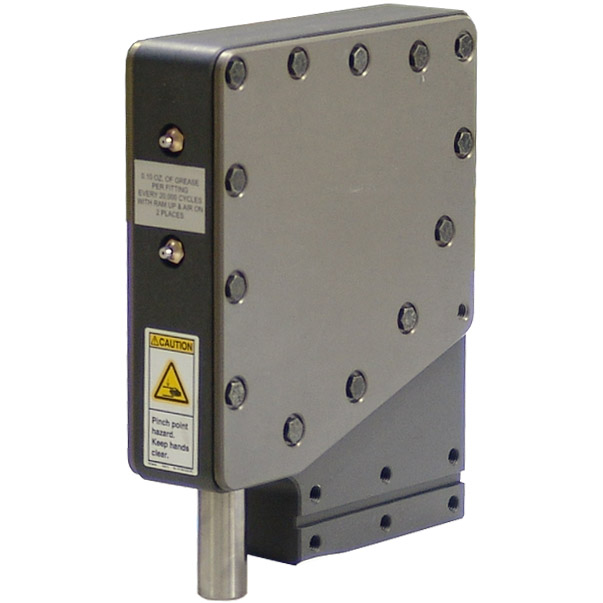

Series 2
Key Specifications | |
|---|---|
Toggle Force Output | 2 Tons |
Stroke | 38mm or 57mm |
Operating Pressure | 5.5 BAR (80 PSI) |
Overall Dimensions | 213 (L) x 63 (W) x 270mm (H) |
Weight | 9 kg [20 lbs] |
- Piercing
- 60 Strokes Per Minute
- 38 or 57mm Standard Stroke
- Thin Profile for Close Stacking
- Non-Rotating Ram
- Simple Pneumatic Advance/Retract Operation
- Stroke lengths from 38 to 57mm
- Ram Options
- Lengths from 150 to 200mm
- Internally Threaded (PTA)
- Externally Threaded (TE)
- Custom Configuration (S)
- 3/8” NPT Port
- Advance/Retract Toggle Position Sensing
- Standard or Custom Force Frames Available
- Self-Equalizing Available
- Control Packages
- Force Monitoring Packages
- Tooling Package
