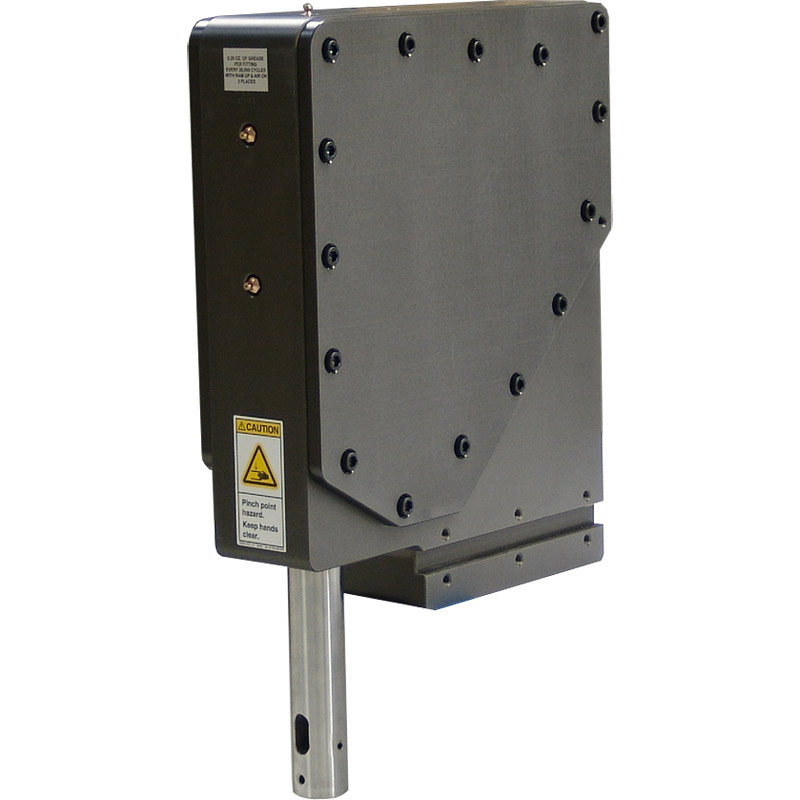

Series 10
Key Specifications | |
|---|---|
Toggle Force Output | 10 Tons |
Stroke | 76mm or 114mm |
Operating Pressure | 5.5 BAR (80 PSI) |
Overall Dimensions | 381 (L) x 125 (W) x 478mm (H) |
Weight | 55 kg [120 lbs] |
- Clinching
- Piercing
- Riveting
- Stamping
- Bending
- Coining
- Shearing
- Notching
- Fastener Insertion
- 60 Strokes Per Minute
- 76 or 101mm Standard Stroke
- Thin Profile for Close Stacking
- Non-Rotating Ram
- Simple Pneumatic Advance/Retract Operation
- Stroke lengths from 25 to 101
- Ram Options
- Lengths from 304 to 375mm
- Internally Threaded (PTA)
- Externally Threaded (TE)
- Custom Configuration (S)
- 1/2” NPT Port
- Advance/Retract Toggle Position Sensing
- Ram Latch
- Standard or Custom Force Frames Available
- Control Packages
- Force Monitoring Packages
- Tooling Package
- Proximity Switches
