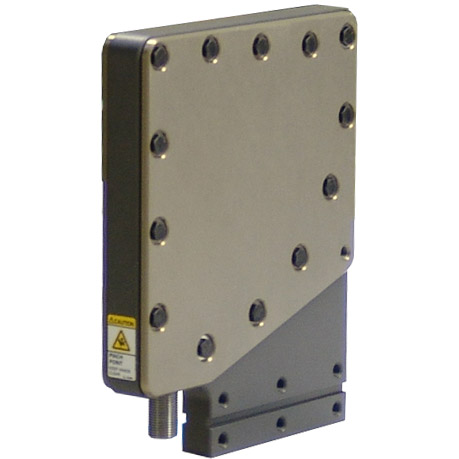

Series 1
Key Specifications | |
|---|---|
Toggle Force Output | 1 Ton |
Stroke | 38mm or 57mm |
Operating Pressure | 5.5 BAR (80 PSI) |
Overall Dimensions | 213 (L) x 37 (W) x 270mm |
Weight | 5.7 kg [12.5 lbs] |
- Piercing
- 60 Strokes Per Minute
- 38 or 57mm Standard Stroke
- Thin Profile for Close Stacking
- Non-Rotating Ram
- Simple Pneumatic Advance/Retract Operation
- Stroke lengths from 38 to 57mm
- Ram Options
- Lengths from 150 to 200mm
- Internally Threaded (PTA)
- Externally Threaded (TE)
- Custom Configuration (S)
- 3/8” NPT Port
- Control Packages
- Force Monitoring Packages
- Proximity Switches
