The thin design of the Bottom Anvil Presses offers simplified, flexible and cost-effective solutions. BTM clinching capabilities and our expertise in assembly technology can help you improve operator efficiency in high demand metal joining applications.
Key Specifications | |
|---|---|
Maximum Combined Material Thickness | 4.0 mm [0.16”] [Mild Steel] |
Throat Depth | 162 mm [6.38”] |
Maximum Stroke | 76 mm [3”] |
Cycle Time | 1 second |
Weight | 52 kg [115 lb] |
Standard Input Pressure | 5.5 BAR [80 PSI] |
Tool Size | 3.0 to 4.6 |
- High Volume Clinching – Purpose Built Automation
- High Volume Clinching – Robotic
- Steel & Aluminum Sheet Metal Fabrication
- Appliance
- Electrical & Electronics
- Garage Door
- HVAC
- Metal Structure Assembly
- Office Furniture
- Filter Assembly

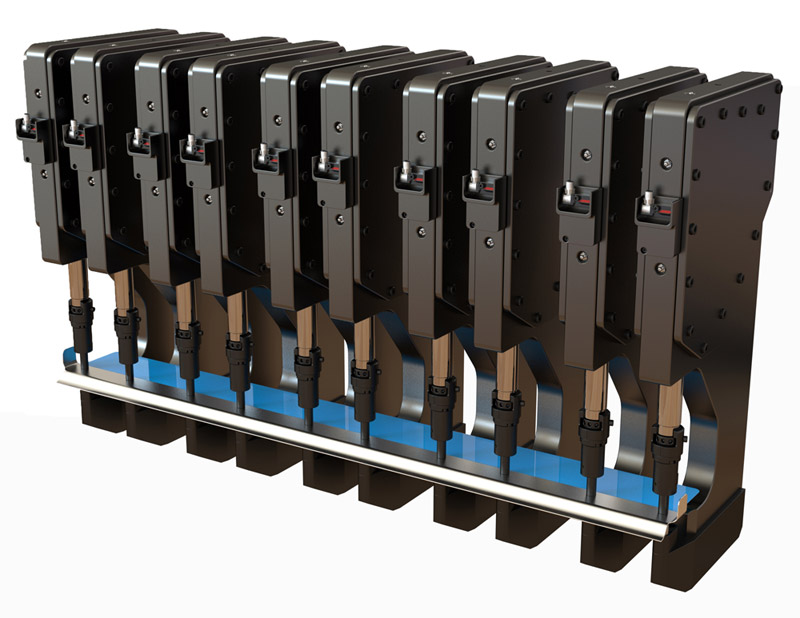

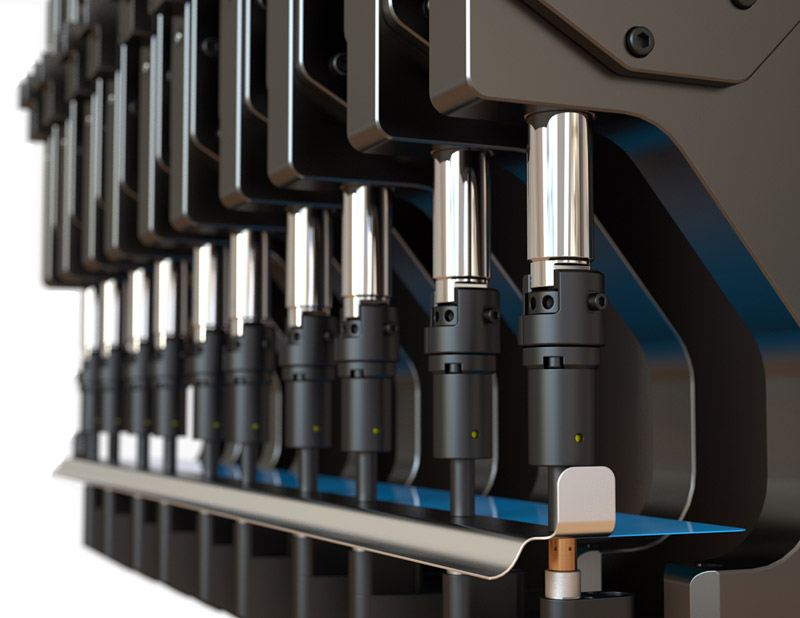

- Thin Profile for Close Stacking
- Simple Pneumatic Advance/Retract
- Quick Change Tooling for Multiple Applications
- Bottom Anvil
- 68% Lower/Reduced Air Consumption Compared with Conventional
- Pneumatic Cylinder
- Hardcoated to Rockwell C-70 for Excellent Wear Resistance
- 44 kN Compressive Force [5 Ton]

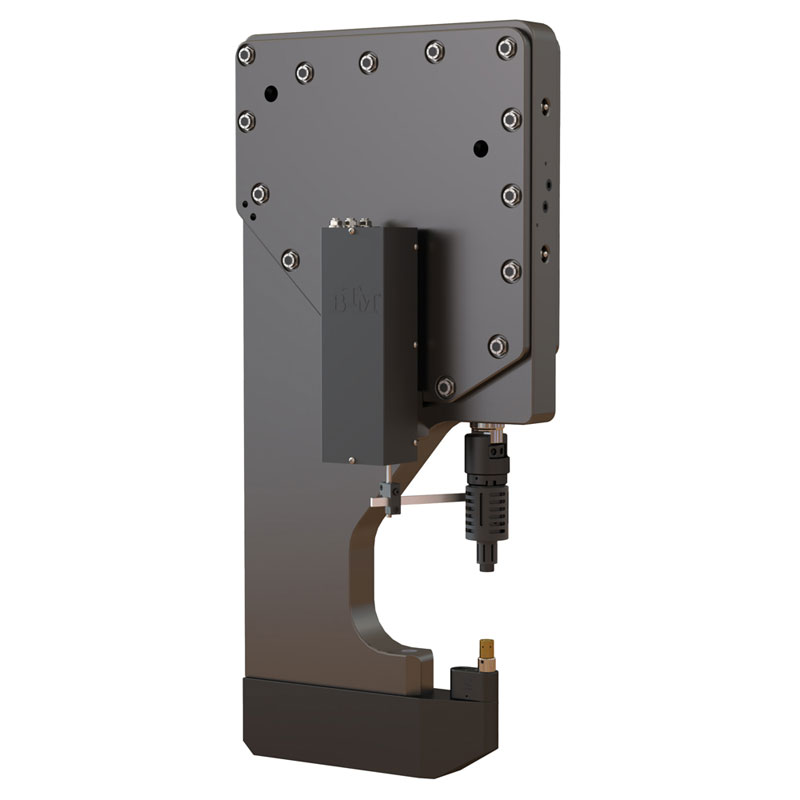

- Press Unit Only

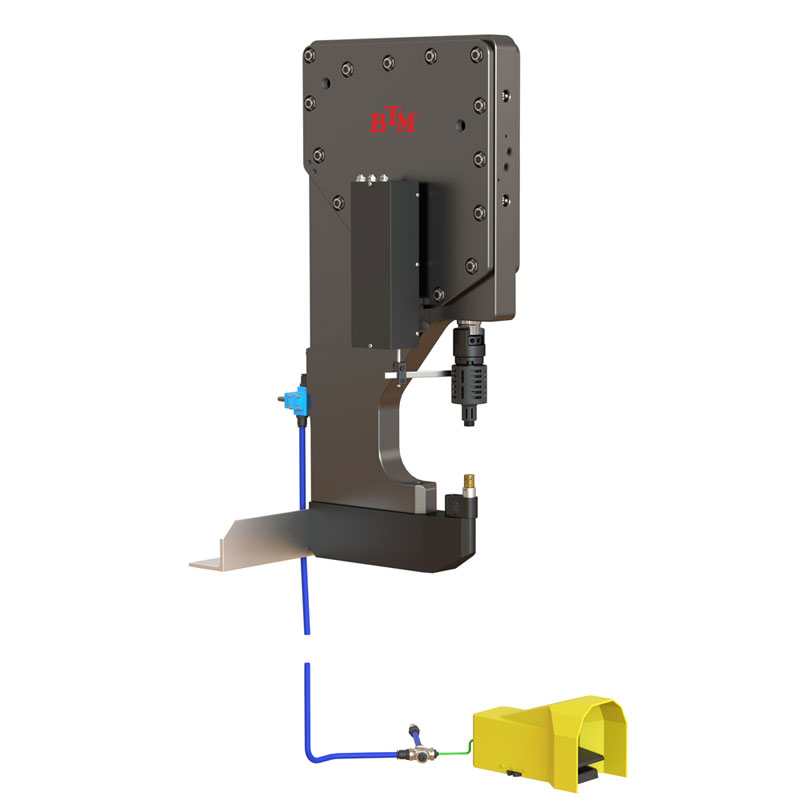

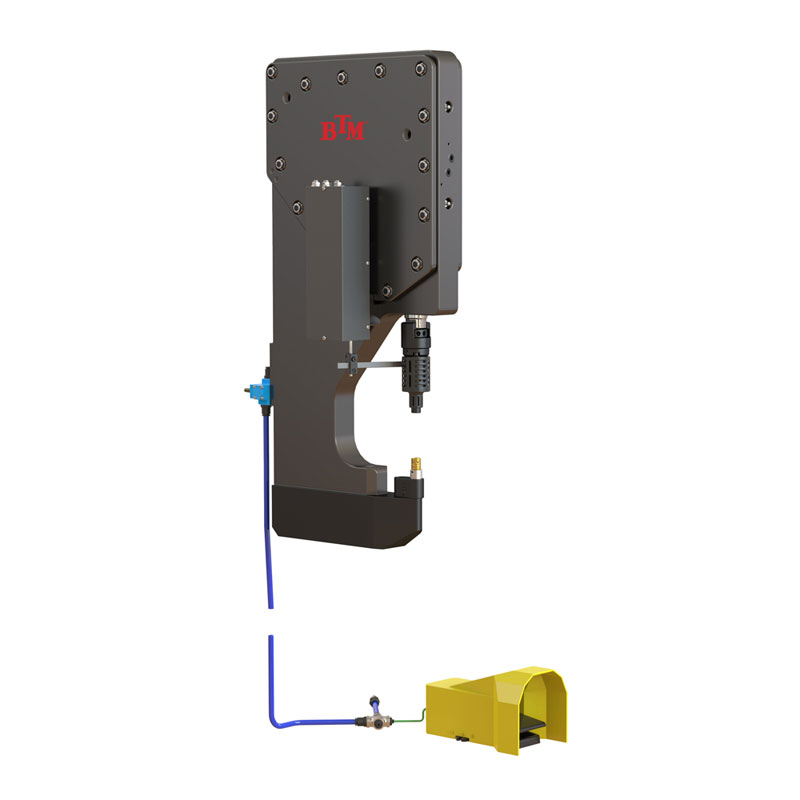

- Bench Press with Foot Stand

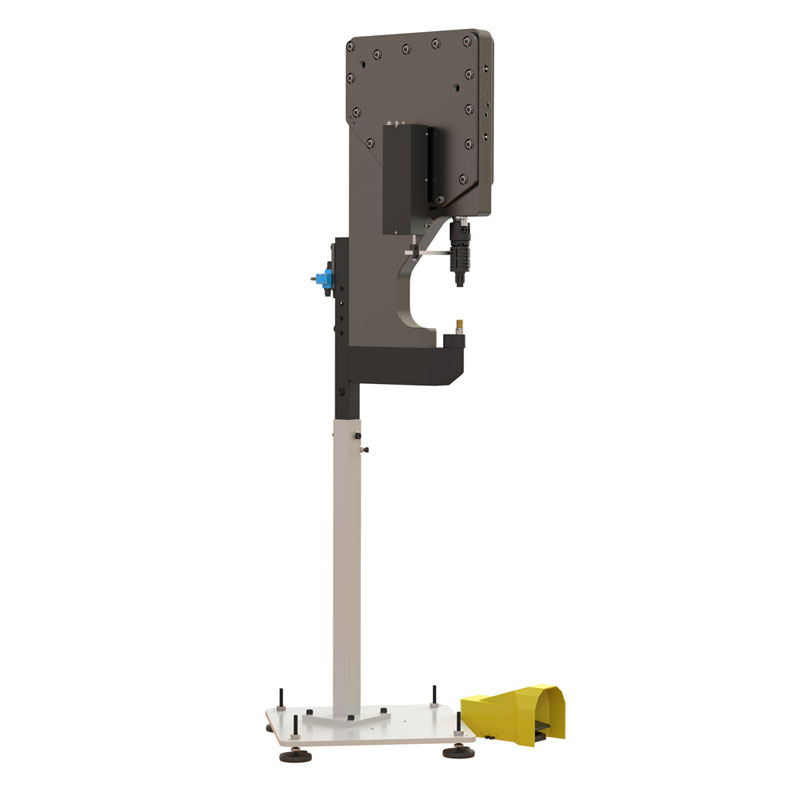

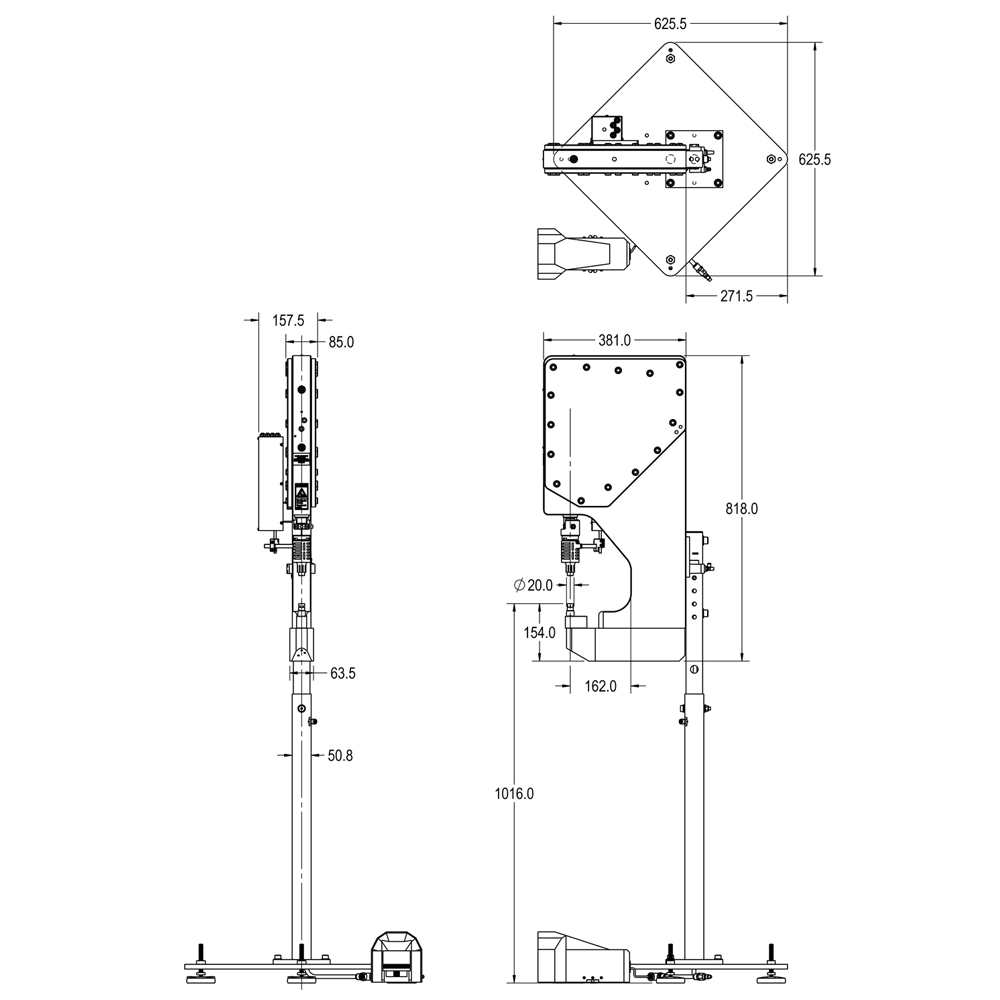

- Floor Stand
- Tool Guard (Required for Manual Integration)
- Foot Pedal Control Package for Operator Part Handling Convenience

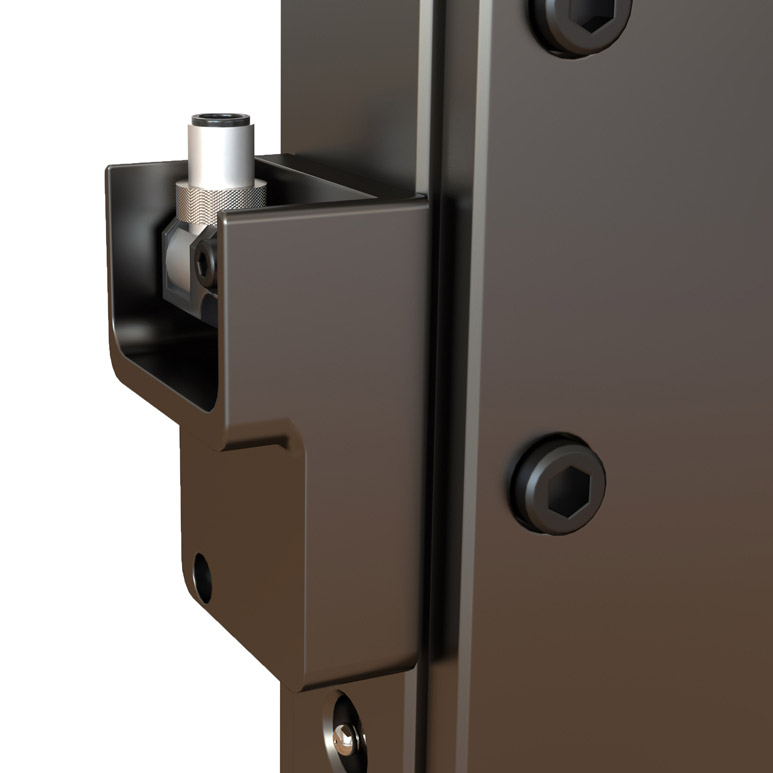

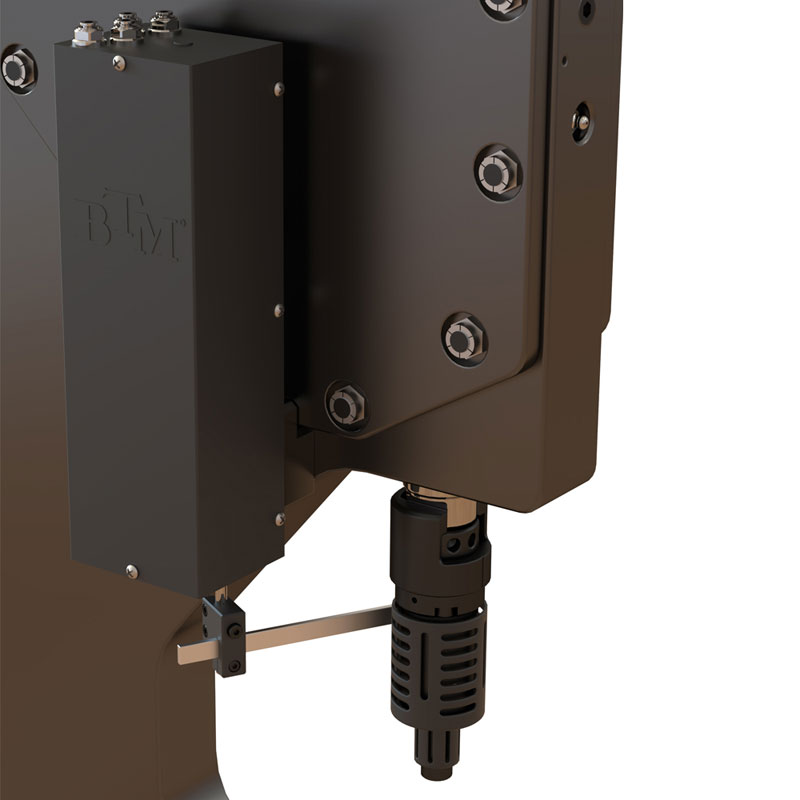

- Proximity Switch Packages for Control System Integration
- Custom Anvils Engineered to Your Requirements
- Tog-L-Loc® 3.0, 3.8, 4.6
- V-Loc™ 3.8, 4.6
