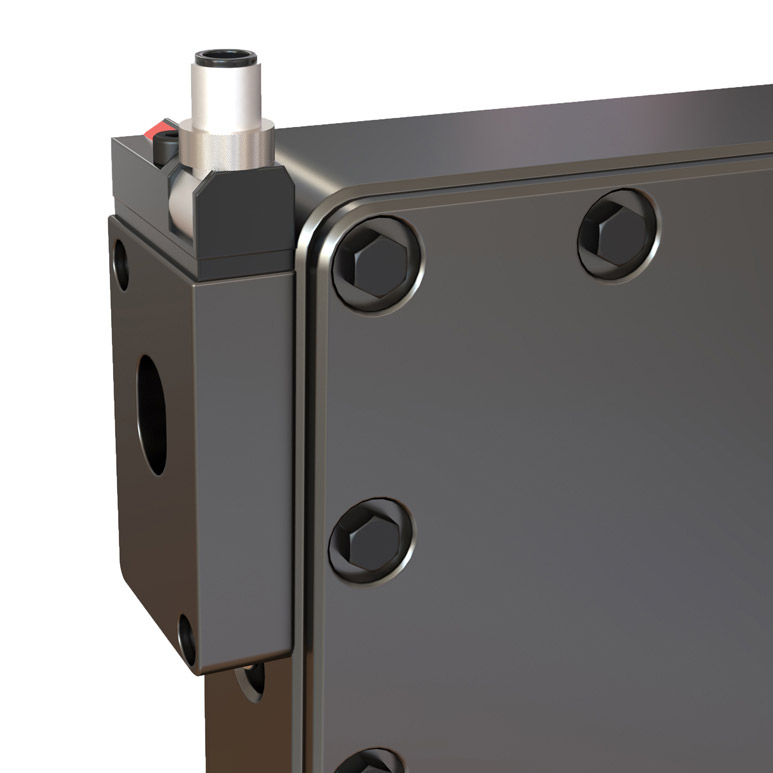

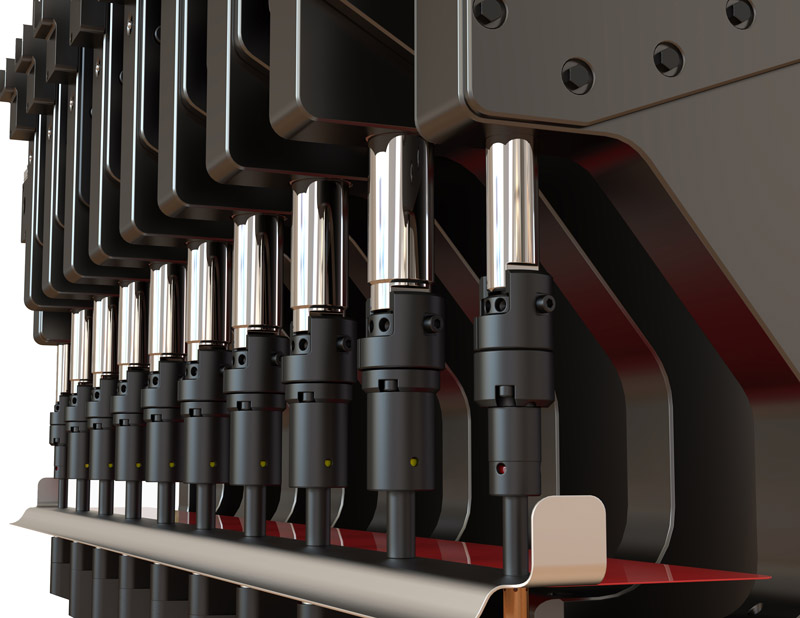

The thin design of the Bottom Anvil Presses offers simplified, flexible and cost-effective solutions. BTM clinching capabilities and our expertise in assembly technology can help you improve operator efficiency in high demand metal joining applications.
Key Specifications | |
|---|---|
Maximum Combined Material Thickness | 2.0 mm [0.18”] [Mild Steel] |
Throat Depth | 155 mm [6.10”] |
Maximum Stroke | 57 mm [2.24”] |
Cycle Time | 1 second |
Weight | 26.0 kg [57.4 lb] |
Standard Input Pressure | 5.5 BAR [80 PSI] |
Tool Size | 3.0 |
- High Volume Clinching – Purpose Built Automation
- High Volume Clinching – Robotic
- Steel & Aluminum Sheet Metal Fabrication
- Appliance
- Electrical & Electronics
- Garage Door
- HVAC
- Metal Structure Assembly
- Office Furniture
- Filter Assembly

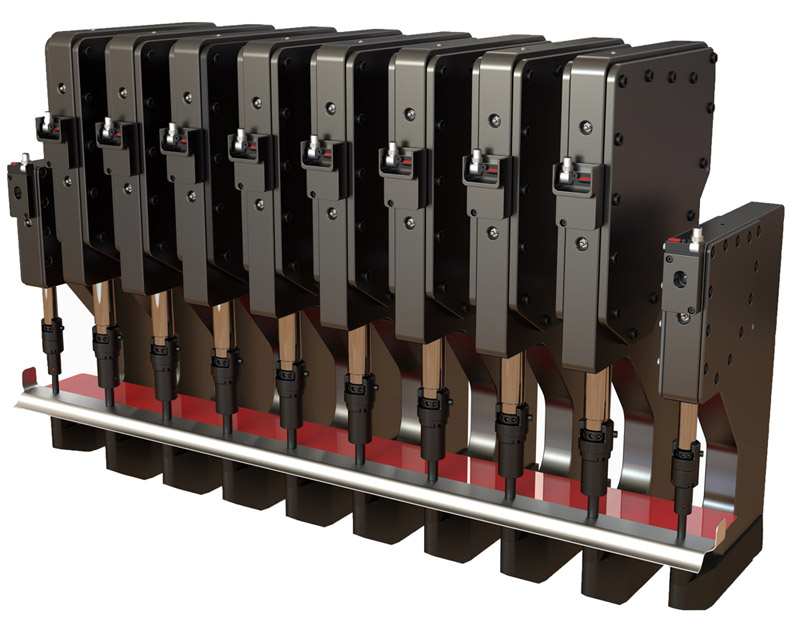

- Thin Profile for Close Stacking
- Simple Pneumatic Advance/Retract
- Quick Change Tooling for Easy Adjustments
- Bottom Anvil
- 68% Lower/Reduced Air Consumption Compared with Conventional
- Pneumatic Cylinder
- Hardcoated to Rockwell C-70 for Excellent Wear Resistance
- 18 kN Compressive Force [2 Ton]

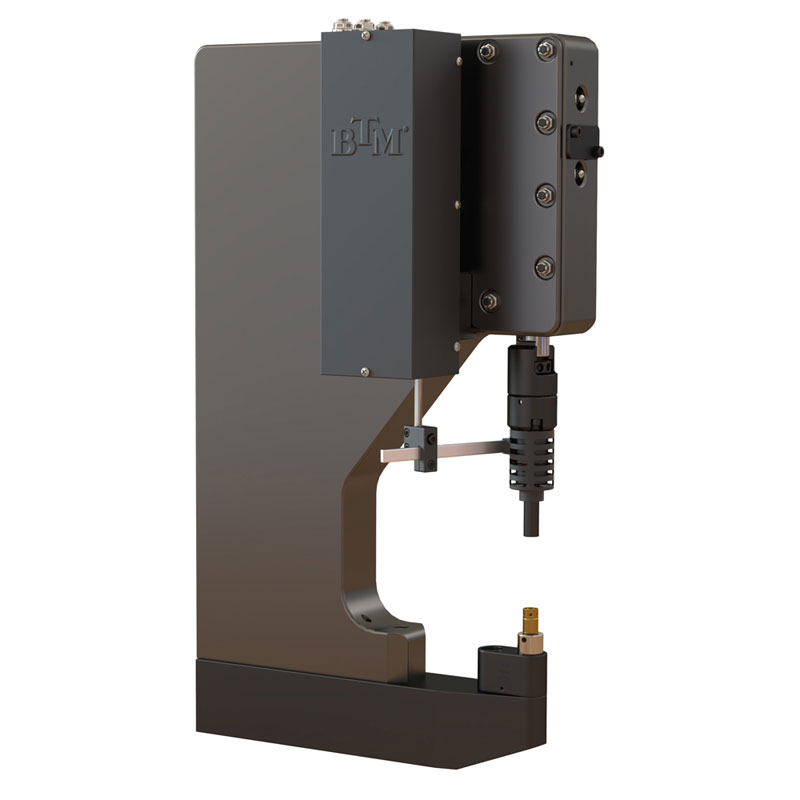

- Press Unit Only

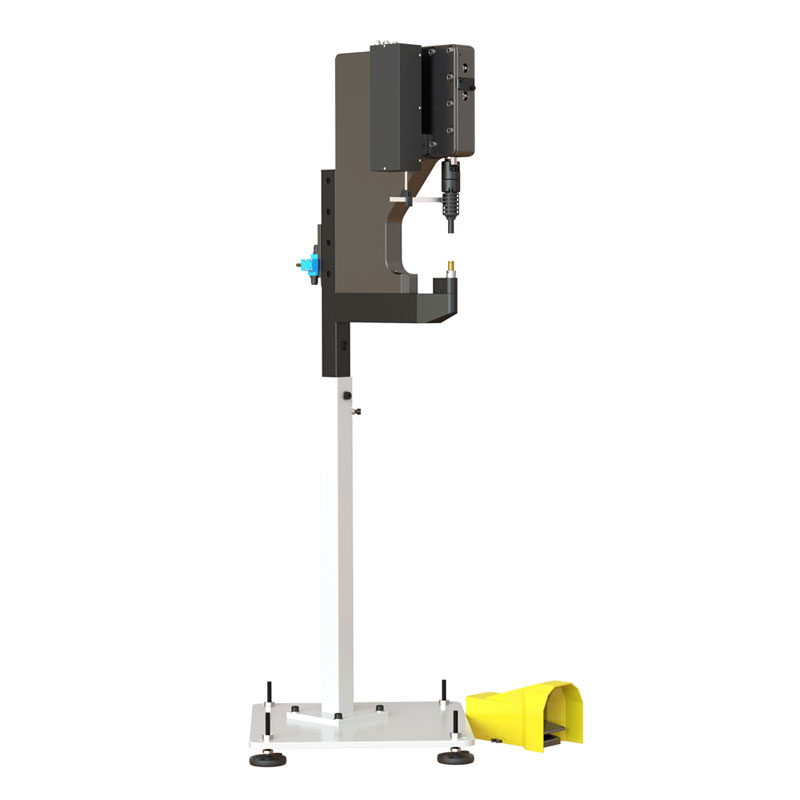

- Bench Press with Foot Stand

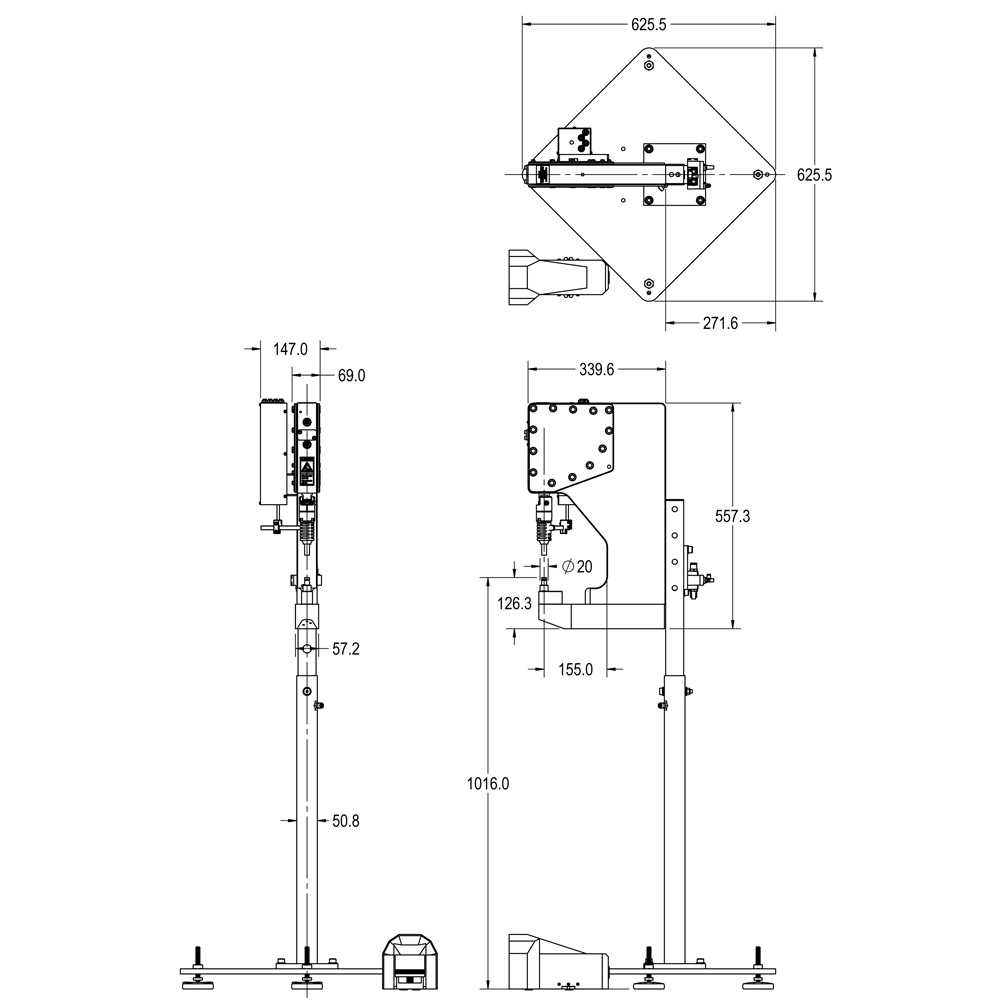

- Floor Stand

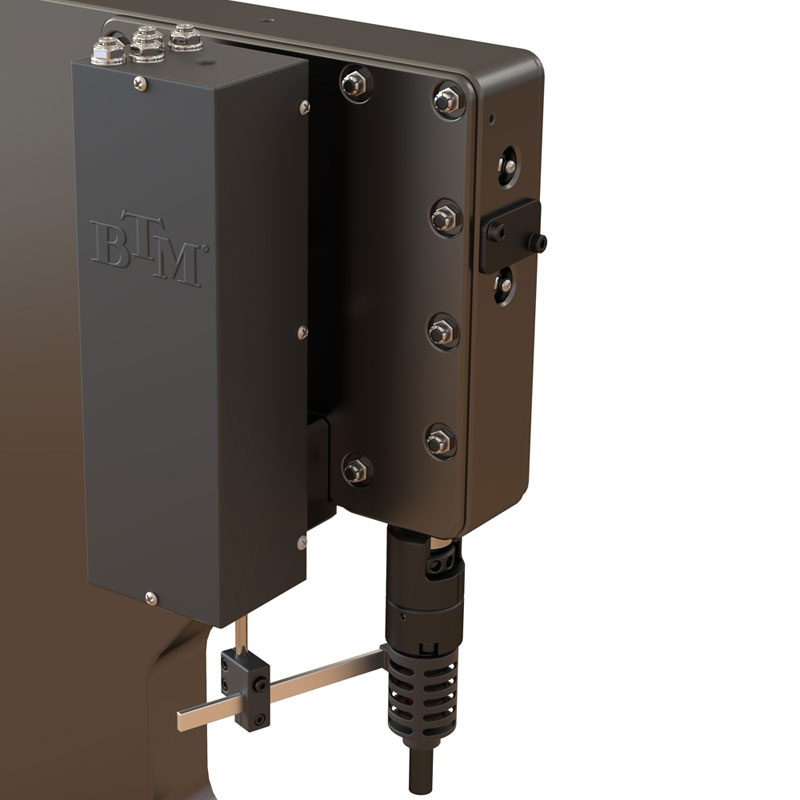

- Tool Guard (Required for Manual Integration)

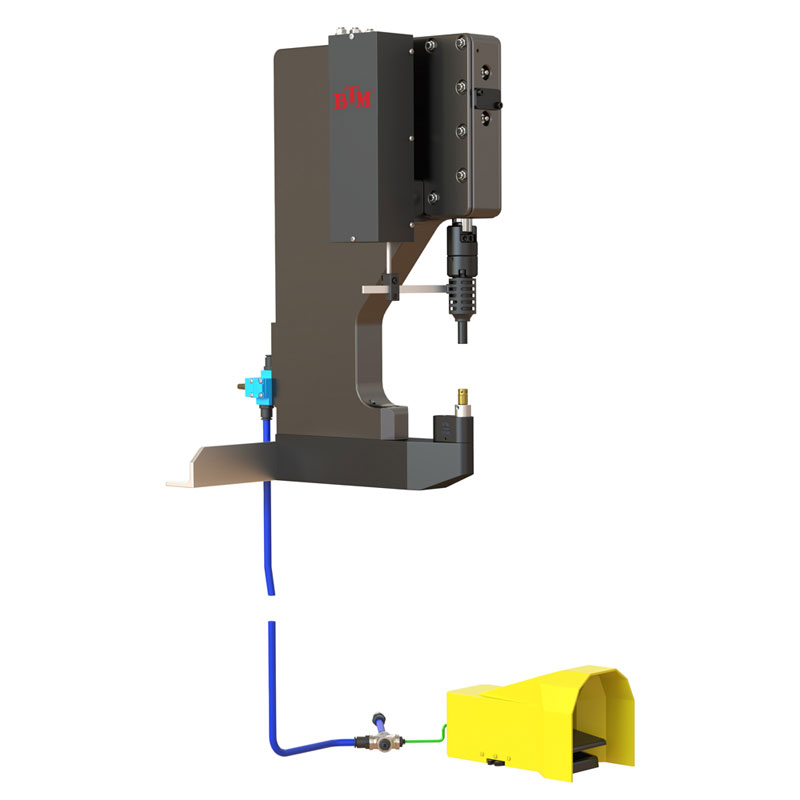

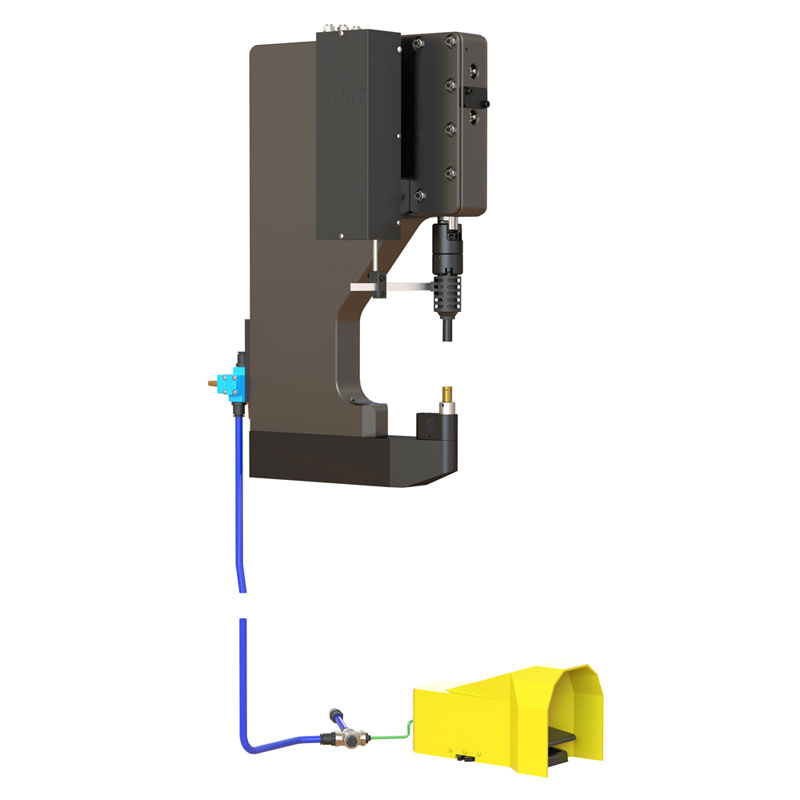

- Foot Pedal Control Package for Operator Part Handling Convenience
- Proximity Switch Packages for Control System Integration
- Custom Anvil Engineered to Your Requirements
- Tog-L-Loc® 3.0
