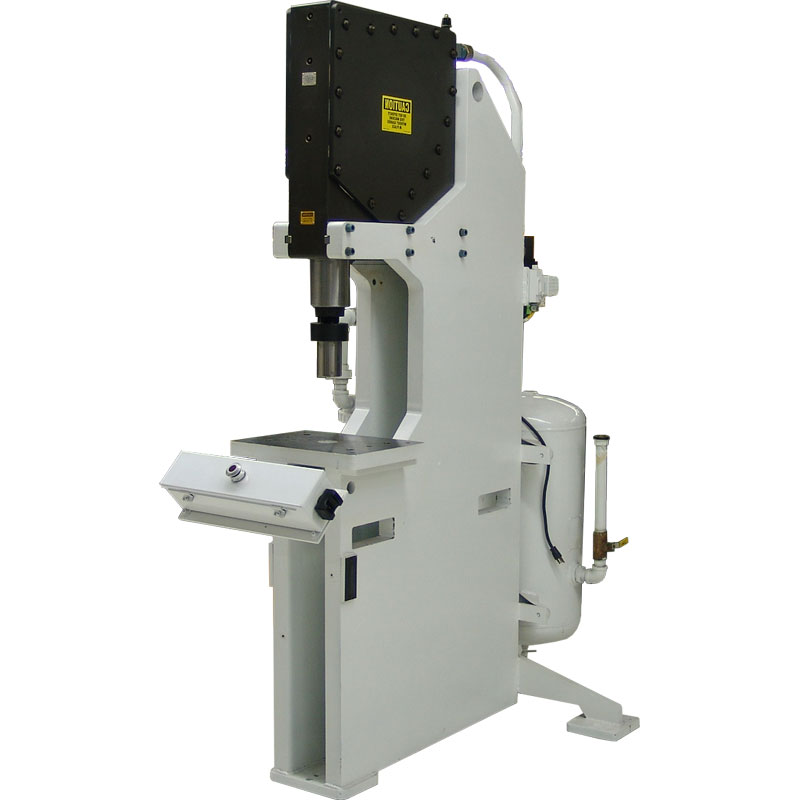

Air Toggle Tooling Press – Floor
Series 5 – 20
000850/56/62
Key Specifications | |
|---|---|
Force Output | 44 kN [5 Ton] to 178 kN [20 Ton] |
Stroke | 38 mm [1.50”] up to 114 mm [4.49”] |
Throat Depth | 254 mm [10”] Standard |
Input Pressure | 5.5 BAR [80 PSI] |
Cycle Time | Varies 2-4 sec. |
Weight | From 205 kg [450 lbs] to 1182 kg [2600 lb] |
- Clinching
- Piercing
- Riveting
- Stamping
- Bending
- Coining
- Shearing
- Notching
- Fastener Insertion
- Steel Frame
- Simple Pneumatic Function
- Controls Package
- Die Set Adapter
- Clinching Die Sets
| Size (Ton) | A | B | C | D | E | F | Stroke |
|---|---|---|---|---|---|---|---|
| 5 | 82.6 | 49.8 | 927 | 890 | 616 | 1787 | 76.2 - 114.3 |
| 10 | 163.5 | 99 | 927 | 889 | 616 | 1787 | 76.2 - 114.3 |
| 20 | 226.3 | 126 | 965 | 889 | 851 | 1991 | 76.2 - 114.3 |
All values are mm unless otherwise noted.
