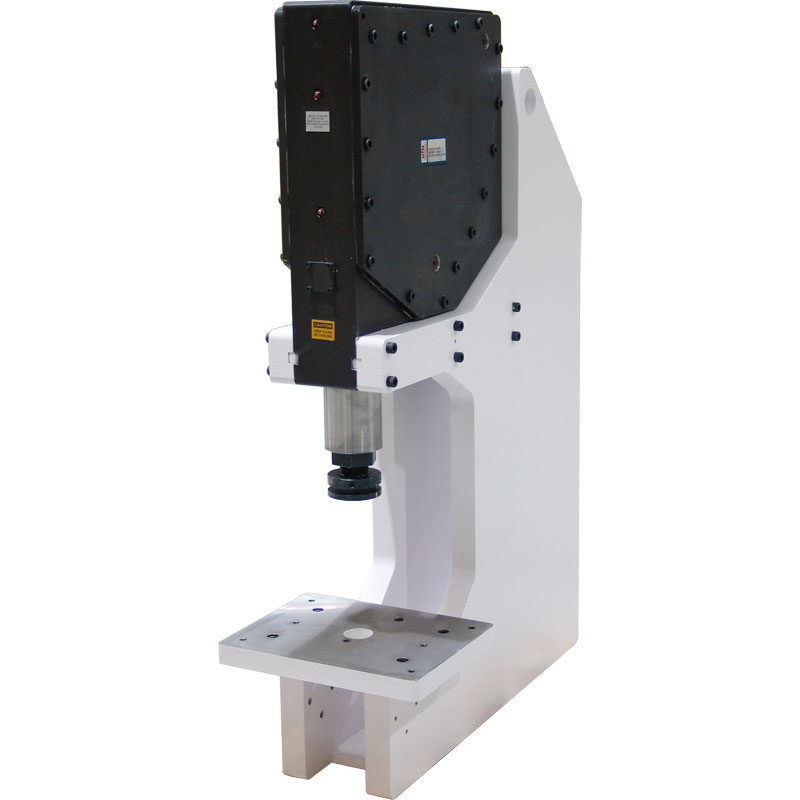

Air Toggle Tooling Press
Series 2 – 20
000844/48/54/60
Key Specifications | |
|---|---|
Force Output | 17 kN [2 Ton] to 178 kN [20 Ton] |
Stroke | 38 mm [1.50”] up to 114 mm [4.49”] |
Throat Depth | 254 mm [10”] Standard |
Input Pressure | 5.5 BAR [80 PSI] |
Cycle Time | Varies 2-4 sec. |
Weight | From 45 kg [100 lb] to 705kg [1550 lb] |
Overall Dimensions | See “Series” tabs below |
- Clinching
- Piercing
- Riveting
- Stamping
- Bending
- Coining
- Shearing
- Notching
- Fastener Insertion
- Steel Frame
- Simple Pneumatic Function
- Controls Package
- Die Set Adapter
- Clinching Die Sets
| Size (Ton) | A | B | C | D | E | Stroke |
|---|---|---|---|---|---|---|
| 2 | 75.7 | 49.8 | 139.7 | 341.2 | 692 | 38.1 - 57.2 |
| 5 | 82.6 | 49.8 | 185.4 | 616 | 1084 | 76.2 - 114.3 |
| 10 | 163.5 | 99.0 | 185.4 | 616 | 1084 | 76.2 - 114.3 |
| 20 | 226.3 | 126.0 | 266.7 | 851 | 1369 | 76.2 - 114.3 |
All values are mm unless otherwise noted.
