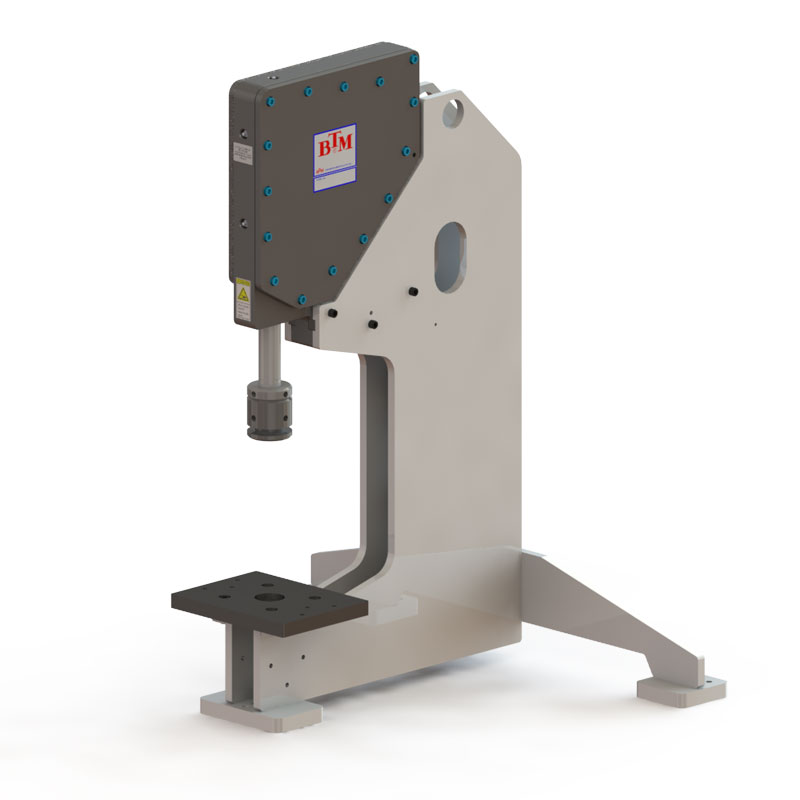

Air Toggle Tooling Press – Bench
Series 2 – 10
000842/46/52/58
Key Specifications | |
|---|---|
Force Output | 17 kN [2 Ton] to 88 kN [10 Ton] |
Stroke | 38 mm [1.50”] up to 114 mm [4.49”] |
Throat Depth | 254 mm [10”] Standard |
Input Pressure | 5.5 BAR [80 PSI] |
Cycle Time | 4 sec. |
Weight | From 45 kg [100 lb] to 318 kg [700 lbs] |
- Clinching
- Piercing
- Riveting
- Stamping
- Bending
- Coining
- Shearing
- Notching
- Fastener Insertion
- Steel Frame
- Foot Valve Operation
- Controls Package
- Die Set Adapter
- Clinching Die Sets
- Simple Pneumatic Function
| Size (Ton) | A | B | C | D | E | F | Stroke |
|---|---|---|---|---|---|---|---|
| 2 | 75.7 | 49.8 | 686 | 165.1 | 341.2 | 717 | 38.1 - 57.2 |
| 5 | 82.6 | 49.8 | 927 | 203.2 | 616 | 1101 | 76.2 - 114.3 |
| 10 | 163.5 | 99 | 927 | 203.2 | 616 | 1101 | 76.2 - 114.3 |
All values are mm unless otherwise noted.
