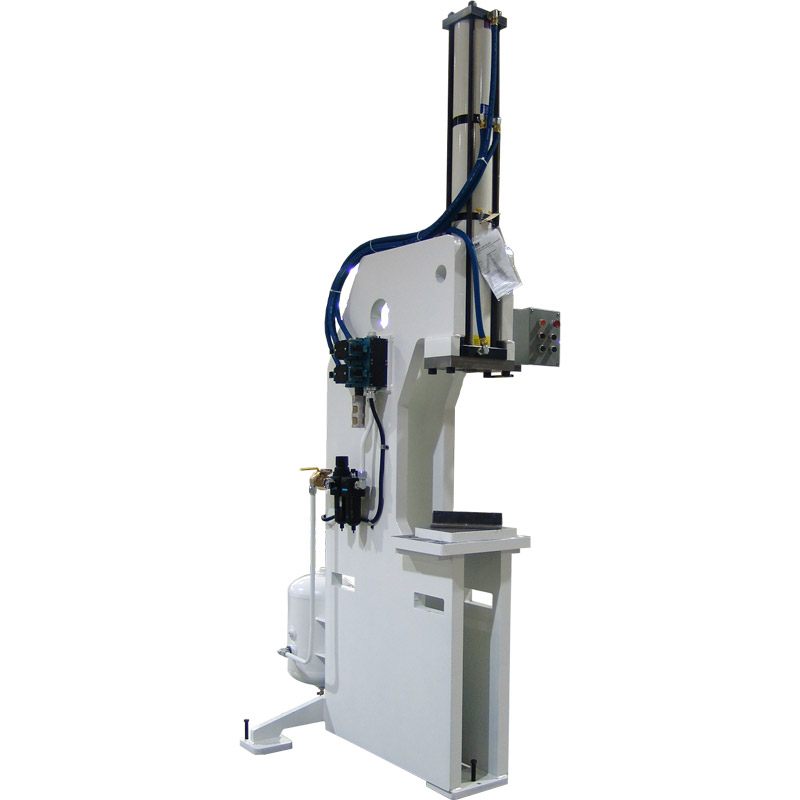

Air-Over-Oil Press Frame – Floor
Series 15
Key Specifications | |
|---|---|
Force Output | 138 kN [15 Ton] |
Stroke | 152 mm [5.98”] |
Throat Depth | 254 mm Standard (can be customized to meet your specifications). |
Input Pressure | 5.5 BAR [80 PSI] |
Cycle Time | Varies |
Weight | 1308 kg [2884 lbs.] |
Tool Size | Die set Tooling (see Applications listed below) |
Overall Dimensions | 1010 (L) x 965 (W) x 2771mm (H) |
- Clinching
- Piercing
- Riveting
- Stamping
- Bending
- Coining
- Shearing
- Notching
- Fastener Insertion
- Steel Frame
- Valve Packages
- Controls Packages
- Tooling
- Die Sets Adapter
- Clinching Die Sets
