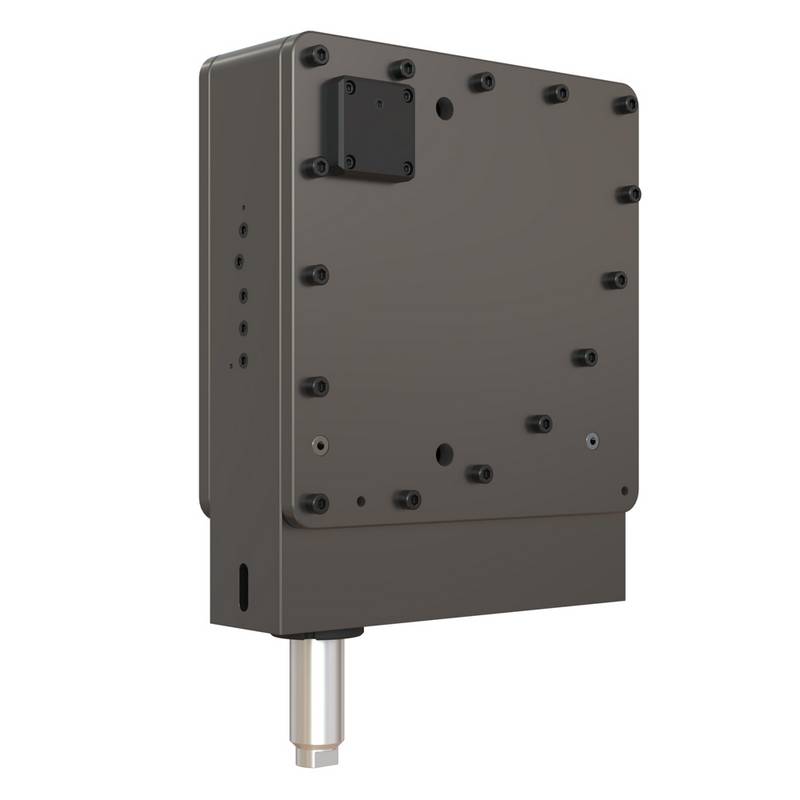

BTM Bearing Toggle Presses give machine builders a competitive advantage: compact, easy integration, low maintenance and long life.
Key Specifications | |
|---|---|
Force Output | 88 kN [10 Ton] |
Stroke | 25 mm [1 in] to 114 mm [4.5in] |
Cycle Time | 1 second |
Weight | 64.6 kg [142.4 lb] |
Standard Input Pressure | 5.5 BAR [80 PSI] |
- Mechanical Fastener Insertion
- Clinching
- Piercing
- Bending
- Stamping
- Coining
- Shearing
- Notching
- Other Forming Applications
- Lubricated for Life*
- End of Stroke Position Does Not Require Adjustment During Use*
- Thin Profile for Close Stacking
- Simpler Valving & Control Integration Than Air-Over-Oil
- No Hydraulic Fluids
- Non-Rotating Ram
- 70% Lower Air Consumption Compared with Conventional Pneumatic Cylinder
- Hardcoated to Rockwell C-70 for Excellent Wear Resistance
*Tested to 3 million cycles
- Stroke Lengths: 25 mm [1 in] to 114 mm [4.5 in]
- Ram Options

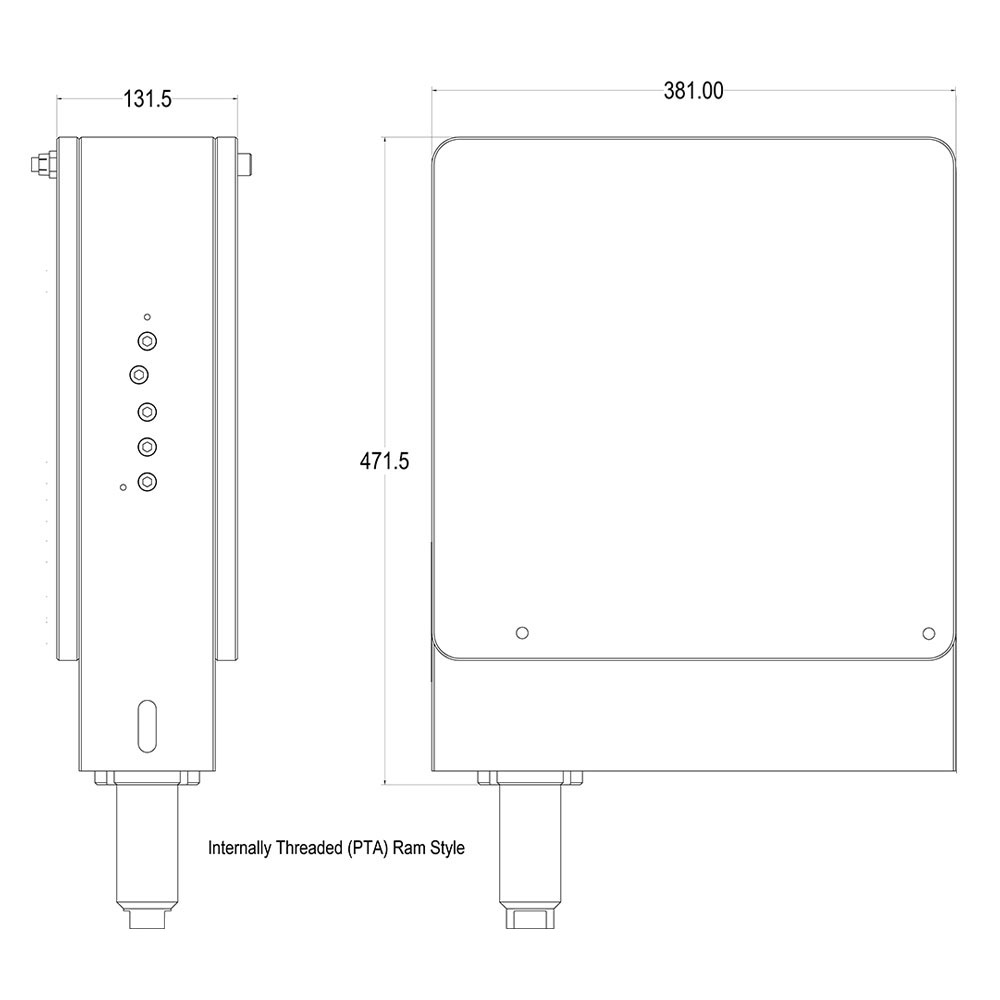

- Internally Threaded (PTA)
- Externally Threaded (TE)
- Custom Configuration (S)

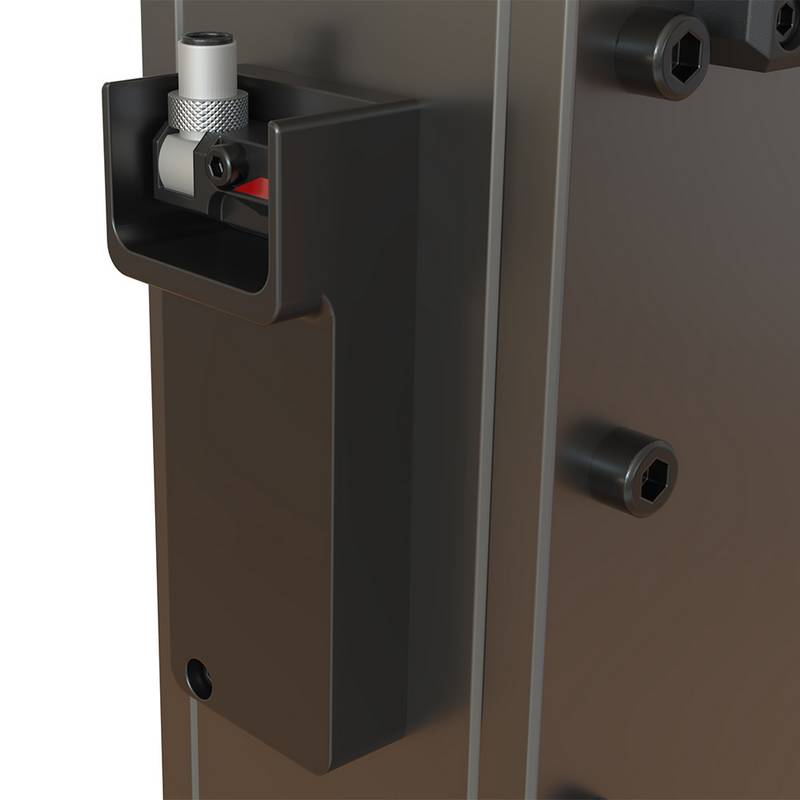

- Advance/Retract Proximity Switch Position Sensing

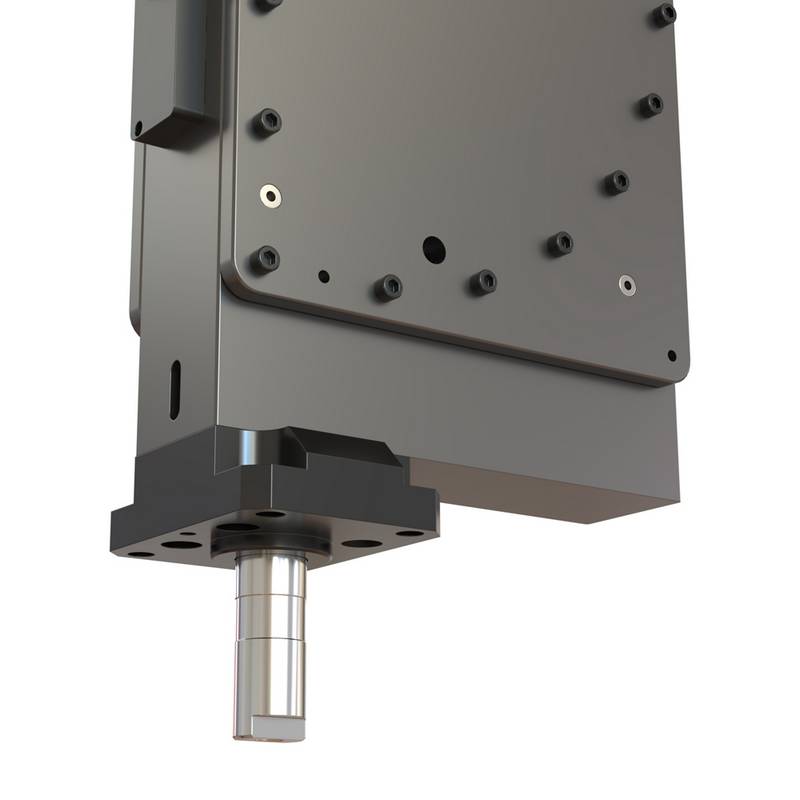

- Flange Mount

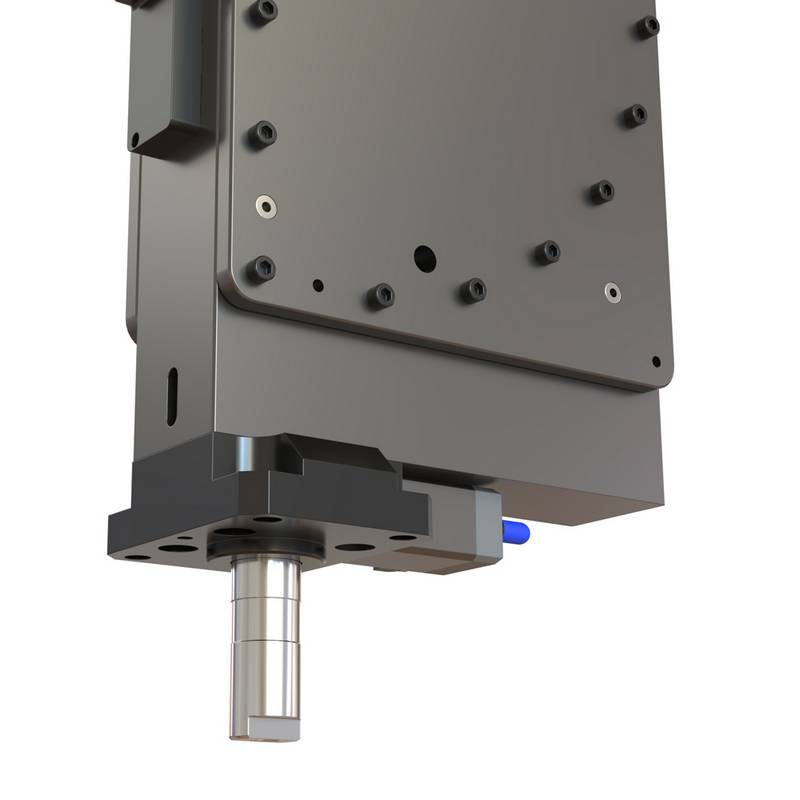

- Ram Latch
- Custom Force Frames Engineered to Your Requirements
- Control Packages
- Force Monitoring Packages
- Tooling Package
- Proximity Switch Packages for Control System Integration
