Presses & Press Units

BTM designs and builds press equipment for manufacturers, machine builders and systems integrators.

BTM products include standard, modular and custom-engineered servo-electric, pneumatic, air-over-oil and hydraulic:

Presses
Press Units
Press Components
Robot Mounted Presses
Integrated Tooling Solutions
Advanced Process Monitoring

Our vertically integrated flexible operations and modular equipment designs make BTM a partner you can trust to provide a wide range of robust press equipment in world-class time.

Servo-Electric Press Units

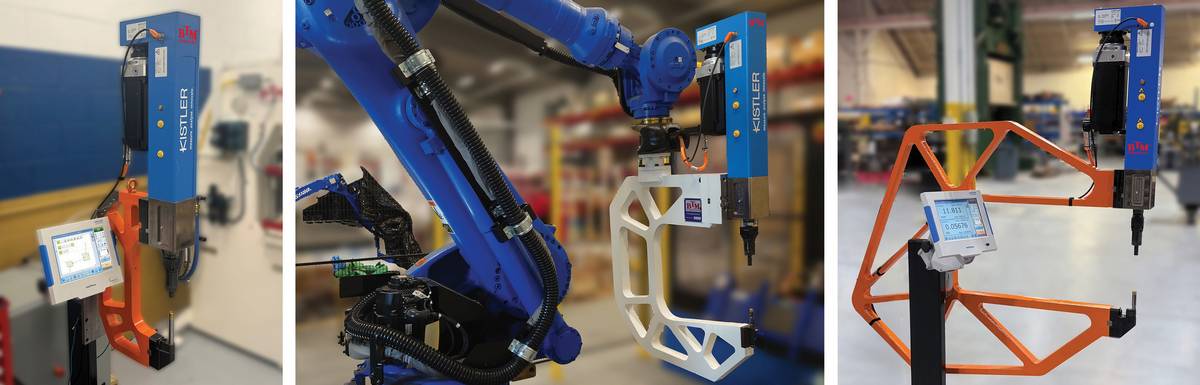

BTM Servo-Electric Press Units utilize advanced electric actuators to deliver clean, highly controlled, and fully traceable sheet metal joining and forming operations. BTM partners with Kistler, the global leader in dynamic measurement, to combine high-performance electromechanical actuators with advanced piezoelectric measurement technology to maximize your manufacturing process efficiency.

Features

Speed: Reduces cycle time through simultaneous press positioning and pre-power stroke press actuation.

Joint Quality Optimization: C-Frame deflection compensation technology enables improved joint quality and C-Frame lightweighting.

Operational Flexibility: Helps optimize joint quality when common tooling is used across a range of material combinations.

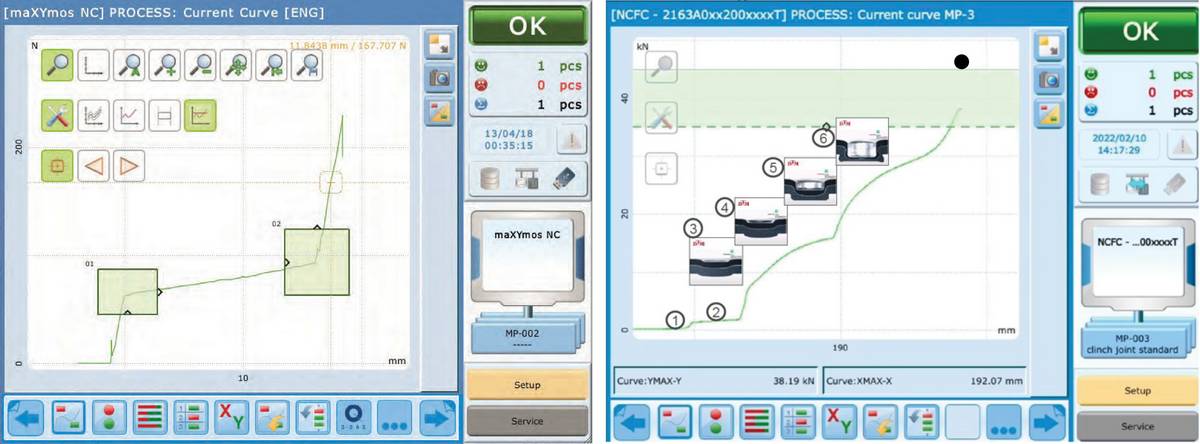

Traceability: Captures and evaluates dynamic force-displacement curves for in-process quality and process verification while supporting Industry 4.0.

Programmable Precision: Flexible control over stroke velocity, parameter profiles, and tool positioning.

Clean, Quiet & Energy-Efficient: Eliminates pneumatic air losses, leaks, and loud exhausts, while also avoiding hydraulic leaks and hydraulic power unit noise.

Available Configurations

Standard & Custom Press Units for Integration into Customer Equipment
Standard & Custom Operator Workstations

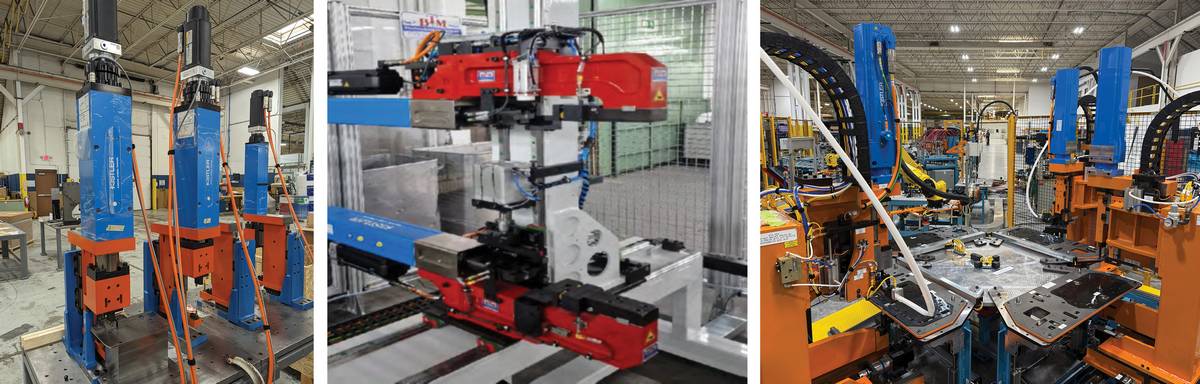

Standard & Custom Robot-Carried and Robot-Fed Configurations
Press Units Incorporated into BTM Production Systems
Integrated Force-Displacement Control Packages
High-Force Press Units
Standard and Application-Specific Tooling Packages

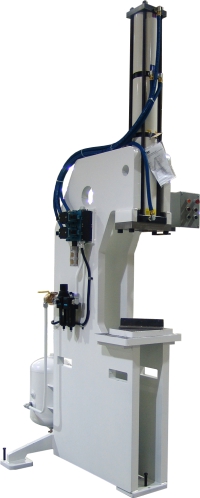

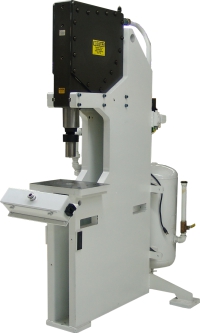

Air Toggle Presses

Pneumatic press units are compact with a thin profile for small spaces or close stacking and easy mounting (any position). BTM has complete press units, press heads, front mount units, punch & button units with integrated anvils and special purpose units with long strokes, double rams or integrated frames. BTM sales can help you choose the right press.

Bearing Press Heads

Series 10 CMB
Bearing Press

Press Heads

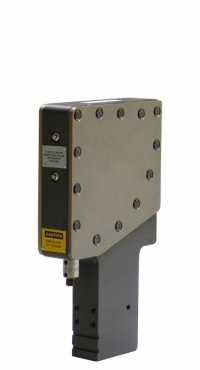

Series 20

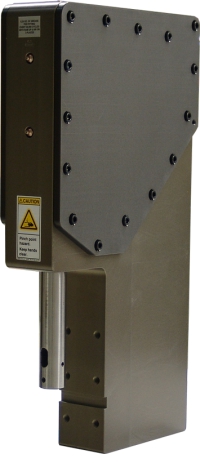

Series 10

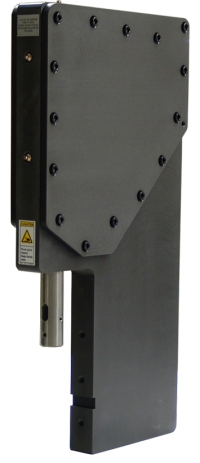

Series 5

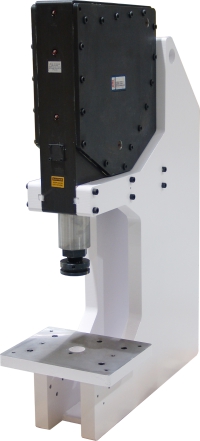

Series 2

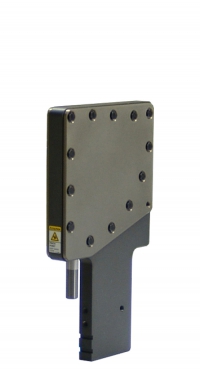

Series 1

Front Mount

Series 10

Series 5

Series 2

Series 1

Pre-Engineered for Clinching & Piercing

Series 10 BA
Standard Stroke Bottom Anvil

Series 5 BA
Standard Stroke Bottom Anvil

Series 2 BA
Standard Stroke Bottom Anvil

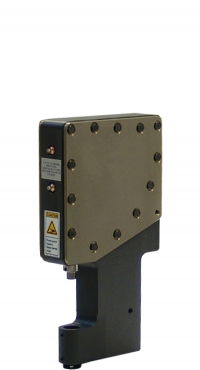

Series 2 PB

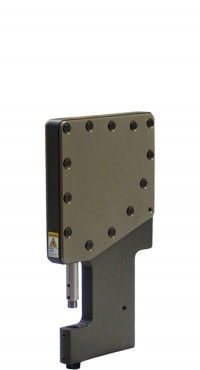

Series 1 PB

Air-Over-Oil Cylinders

High force is created using a pneumatic cylinder as a pump for the hydraulic cylinder, up to 100 tons.

Inline Cylinder

Satellite Cylinder

Floor & Bench Tooling Presses

Floor and tooling press units are available with different frames, strokes, throat depths and tooling packages for sheet metal assembly and manufacturing.
