Key Specifications | |
|---|---|
Maximum Combined Material Thickness | 4.0 mm [0.16”] [Mild Steel] |
Throat Depth | 625 mm [24”] x 625 mm [24”] |
Maximum Stroke | 76 mm [3”] |
Cycle Time | 2 seconds |
Weight | 567 kg [1,250 lb] |
Standard Input Pressure | 5.5 BAR [80 PSI] |
Tool Size | 3.0 to 4.6 |
- High Volume Manual Clinching
- Steel & Aluminum Sheet Metal Fabrication
- HVAC
- Metal Structure Assembly
- Roofing
- Office Furniture
- Channel Lettering
- Prototype Assembly
- Large Tooling to Press Body Clearance for Deep Interior Clinching
- Tall Tooling to Base Clearance for Processing Large Parts
- Foot Pedal Controls Package for Operator Part Handling Convenience
- Quick Change Tooling for Multiple Applications
- Reversible Tooling

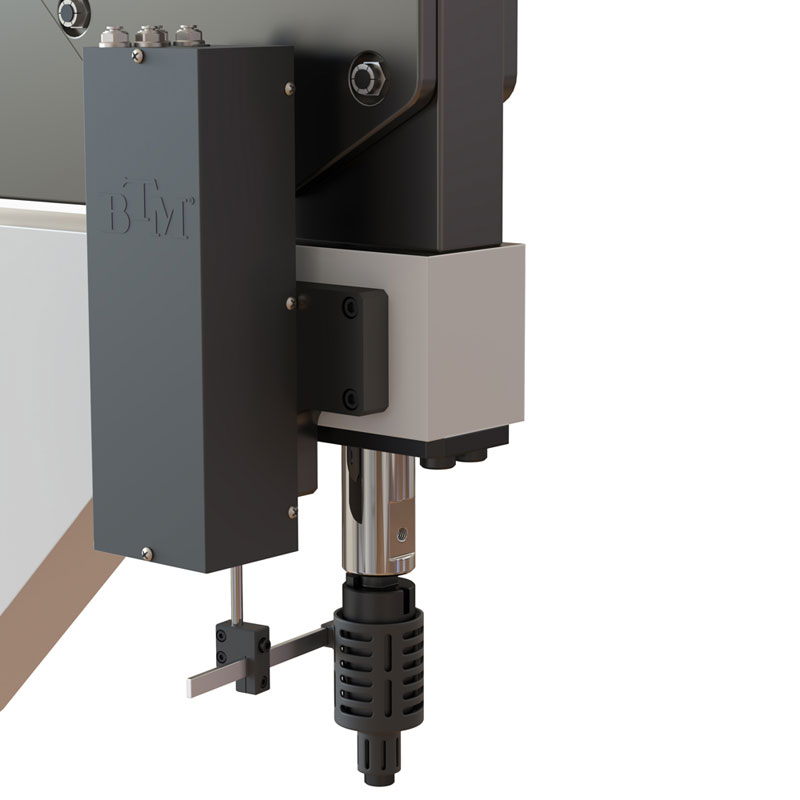

- Tool Guard
- Operates From a Single Shop Air Line and 110 VAC
- 44 kN Compressive Force [5 Ton]
- Forklift Tubes for Safe Repositioning
- Laser Pointer for Accurate Joint Placement
- Custom Fixtures Engineered for Improved Customer Part Processing
- Custom Force-Frames Engineered to Your Requirements
- Tog-L-Loc® 3.0, 3.8, 4.6
- V-Loc™ 3.8, 4.6
