Key Specifications | |
|---|---|
Maximum Combined Material Thickness | 3.5 mm [0.14”] [Mild Steel] |

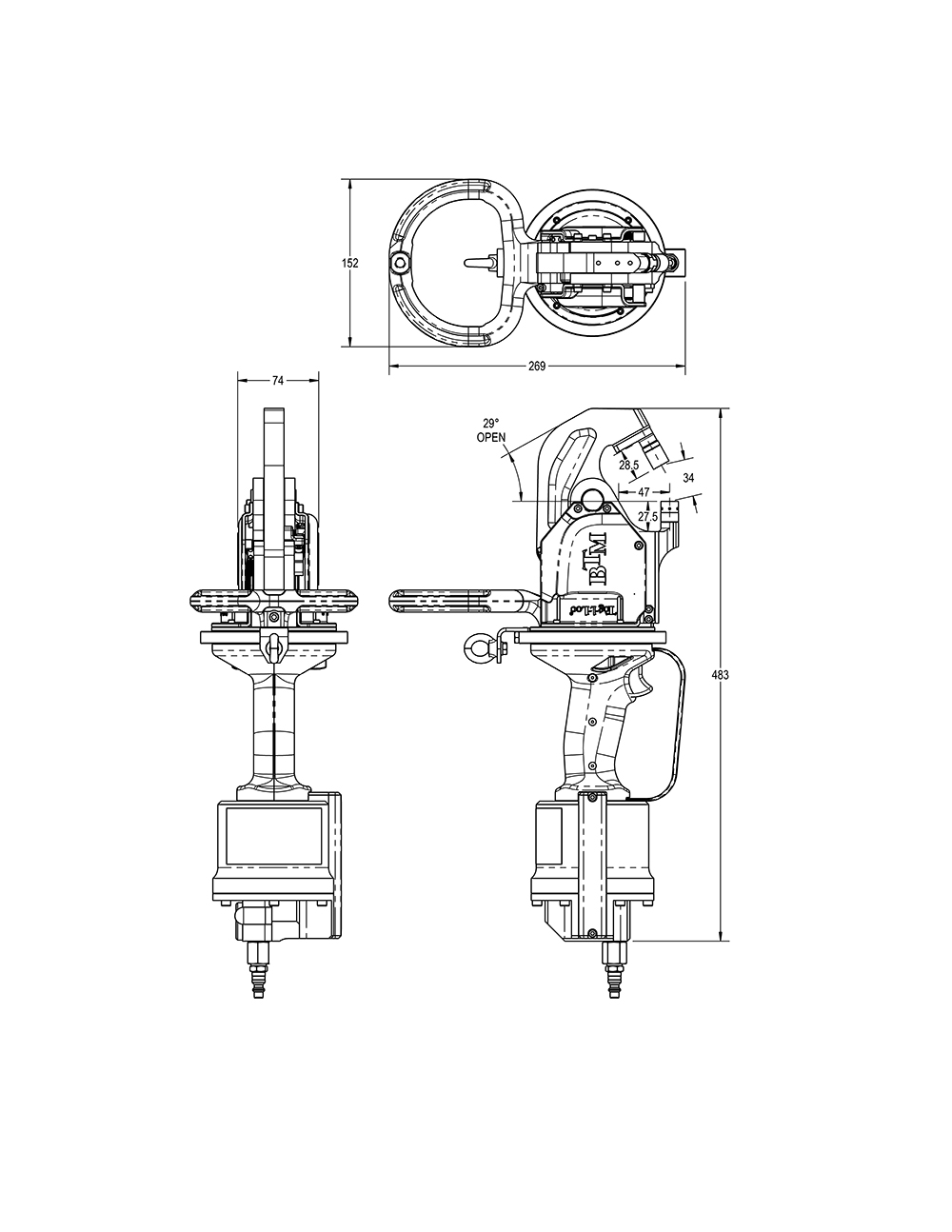

Throat Depth | 47 mm [1.85”] |
Cycle Time | 1 second |
Weight | 6.2 kg [13.6 lb] |
Standard Input Pressure | 5.5 BAR [80 PSI] |
Tool Size | 3.0 to 4.6 |
- High Volume Manual Clinching (Vertical Flange)
- Steel & Aluminum Sheet Metal Fabrication
- HVAC
- Metal Structure Assembly
- Roofing
- Furniture
- Filter Assembly
- Prototype Assembly
- Roller Garage Door Assembly
- Solar Panel Frames & Support Structures
- Clinches with Both Round & Geometric Clinch Tools
- Quick Change Tooling for Multiple Applications

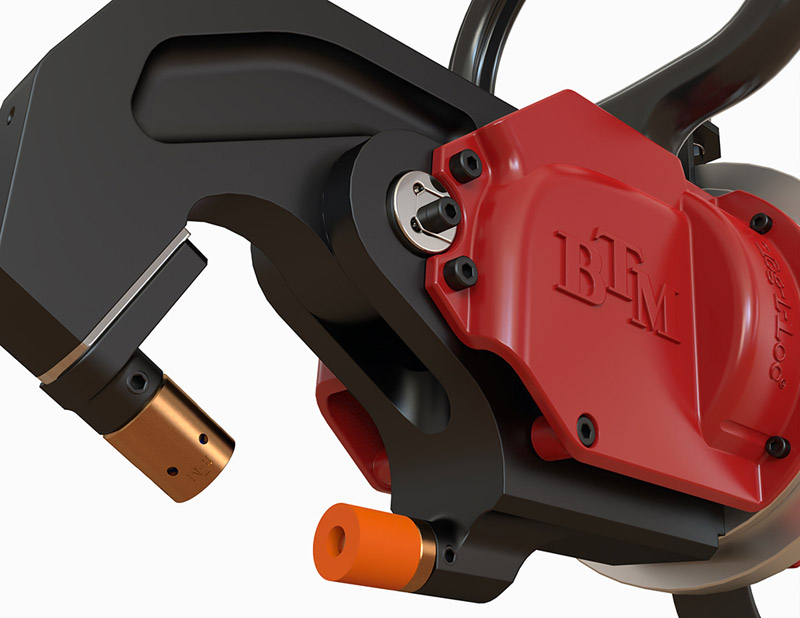

- Reversible Tooling
- Jaws Engineered for Increased Part Clearance
- Integral Ball Bearing Pivot Ring for Ergonomic Positioning
- Grips Contoured for Operator Comfort
- Operates From a Single Shop Air Line
- 35 kN Compressive Force [3.9 Ton]
- CE Approved
- Controller for Joint Validation

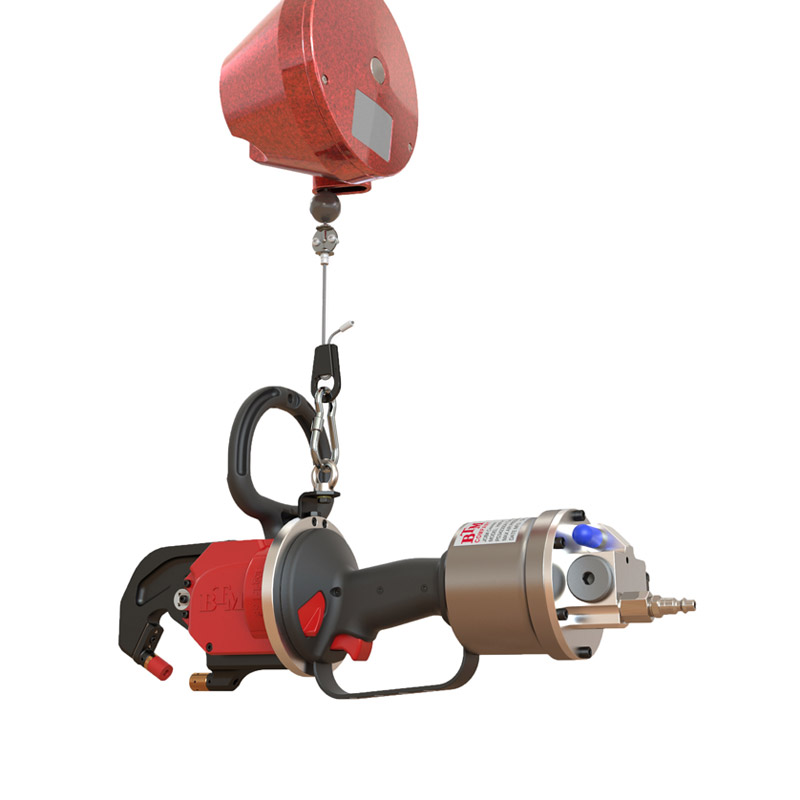

- Balancer for Weightless Operation
- Custom Jaws Engineered to Your Requirements

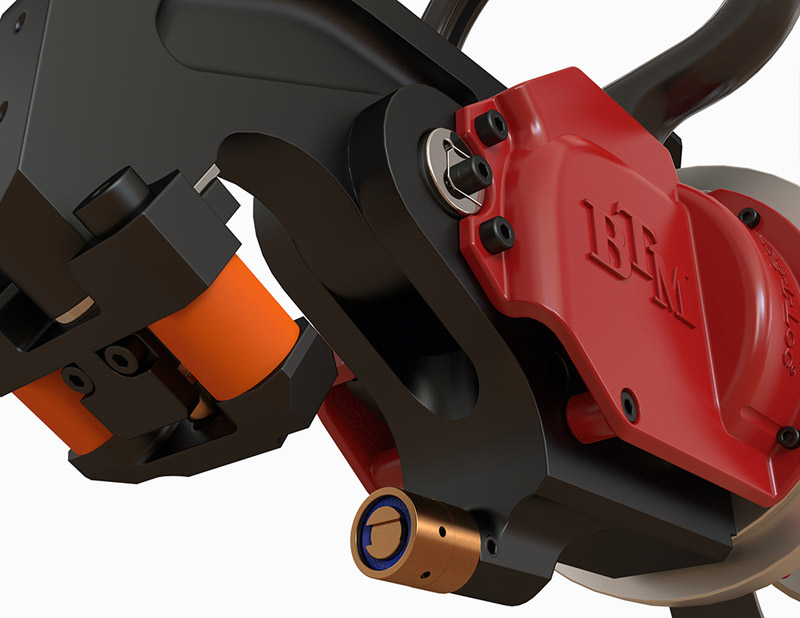

- Heavy Duty Stripper for Thicker Materials
- Tog-L-Loc® 3.0, 3.8, 4.6
- Lance-N-Loc® 3.0, 3.8
- V-Loc™ 3.8, 4.6
- Oval-Loc® 3x6
