Key Specifications | |
|---|---|
Maximum Combined Material Thickness | 2 mm [0.08”] [Mild Steel] |
Throat Depth | 50 mm [1.97”] |
Cycle Time | 1 second |
Weight | 5.39 kg [11.89 lb] |
Standard Input Pressure | 5.5 BAR [80 PSI] |
Tool Size | 3.0 |
- High Volume Manual Clinching (Horizontal Flange)
- Steel & Aluminum Sheet Metal Fabrication
- HVAC
- Metal Structure Assembly
- Roofing
- Furniture
- Filter Assembly
- Prototype Assembly
- Roller Garage Door Assembly
- Solar Panel Frames & Support Structures

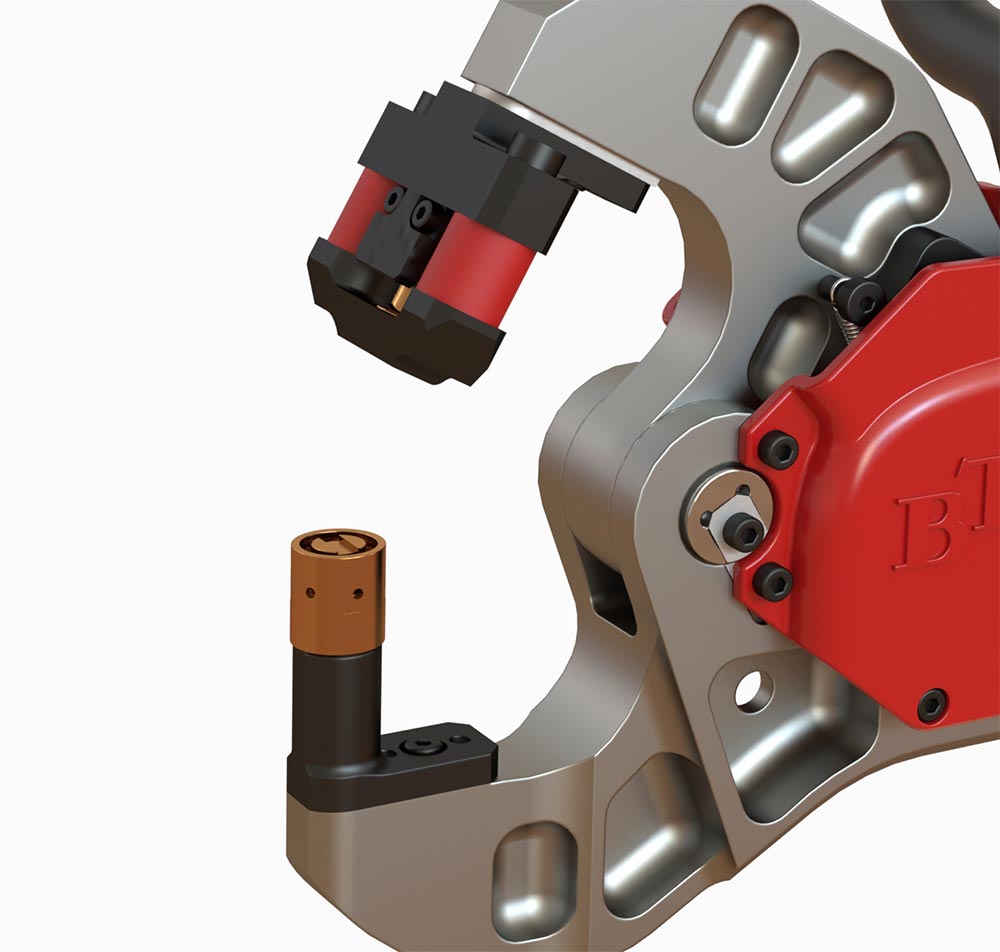

- Titanium Jaws for Reduced Weight
- Clinches with Both Round & Geometric Clinch Tools

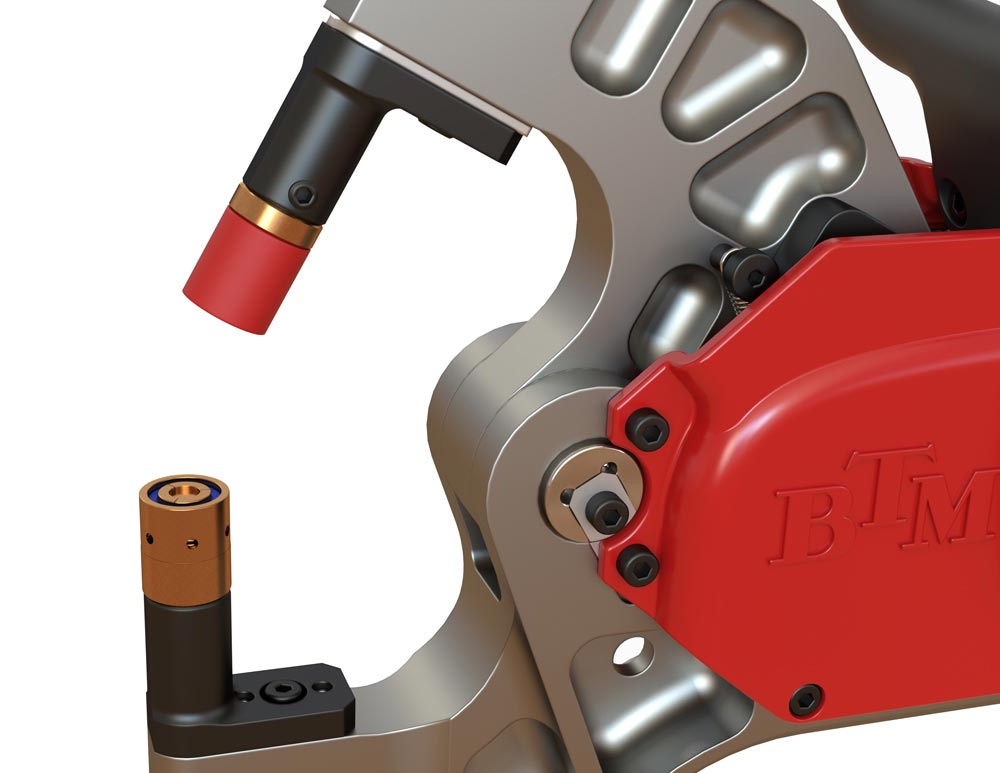

- Quick Change Tooling for Easy Adjustments
- Reversible Tooling
- Jaws Engineered for Increased Part Clearance
- Integral Ball Bearing Pivot Ring for Ergonomic Positioning
- Grips Contoured for Operator Comfort
- Operates From a Single Shop Air Line
- 18 kN Compressive Force [2 Ton]
- CE Approved
- Controller for Joint Validation
- Custom Jaws Engineered to Your Requirements
- Tog-L-Loc® 3.0
