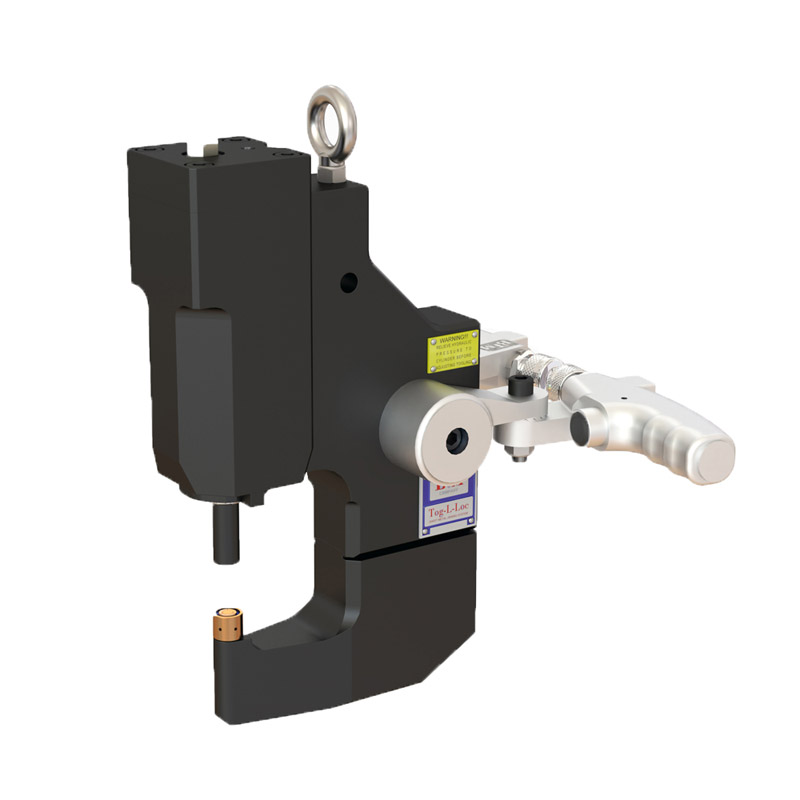

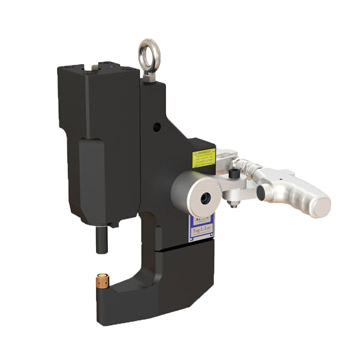

Series 7007 Heavy-Duty Hand Manipulated Hydraulic Clinching Presses are powerful units built for demanding industrial sheet metal clinch joining applications & rugged operating environments. The BTM 7007 Series improves upon the BTM 7006 family of hydraulic clinching presses. Standard-duty & heavy-duty units available including custom anvils & C-Frames.
Key Specifications | |
|---|---|
Max. Combined Material Thickness | 5.5 mm [0.22”] [Mild Steel] |
Throat Depth | 75 mm [2.95”] |
Cycle Time | 1 second [in Peck Cycle] |
Weight | 22 – 24 kg [49 – 53 lb] |
Standard Input Pressure | 175 BAR [2500 PSI] |
Tool Size | 5.5 |
- High Volume Manual Clinching
- Steel & Aluminum Sheet Metal Fabrication
- HVAC
- Garage Door Style Attachment
- Swimming Pool Liner Assembly
- Metal Structure Assembly
- Roofing
- Filter Assembly
- Metal Drawer, Box & Cabinet Assembly
- Roller Garage Door Assembly
- Solar Panel Frames & Support Structures
- Bundle Includes Clinch Unit, HydroPak 1.2 Hydraulic Pump with Touchscreen and Standard Length Hose Assembly
- Dual Handles with Two Operation Triggers
- Adjustable Handle Position
- Quick Change Tooling for Multiple Applications
- Peck Cycle for Fast Clinching
- 54 kN Compressive Force [6.1 Ton]
- Two Standard Anvil Configurations (M Style, N Style)
- Custom Anvils
- Robot Mount
- Automation Mount

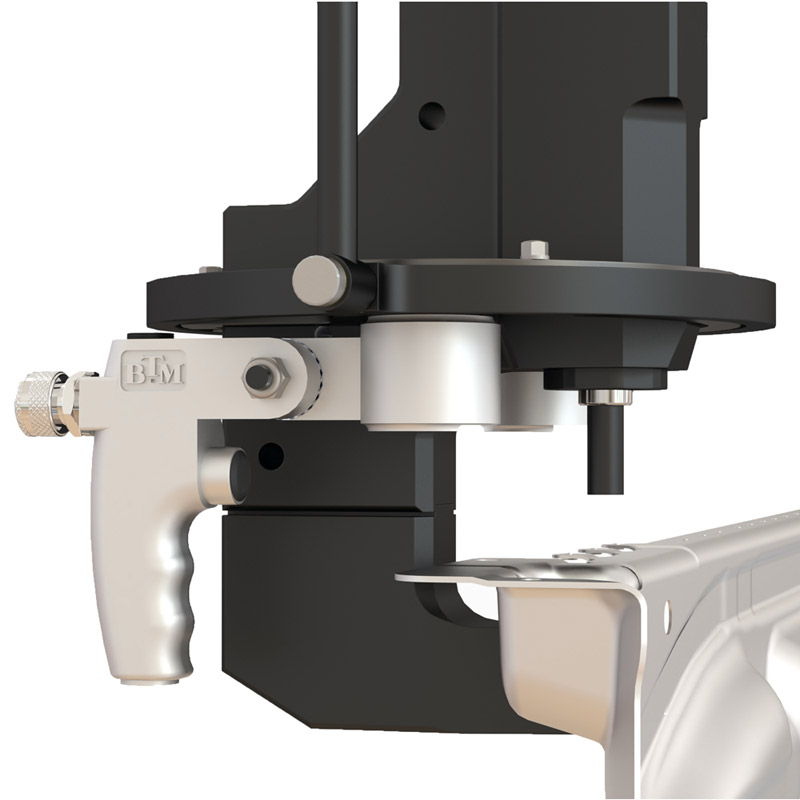

- Gimbal Mount

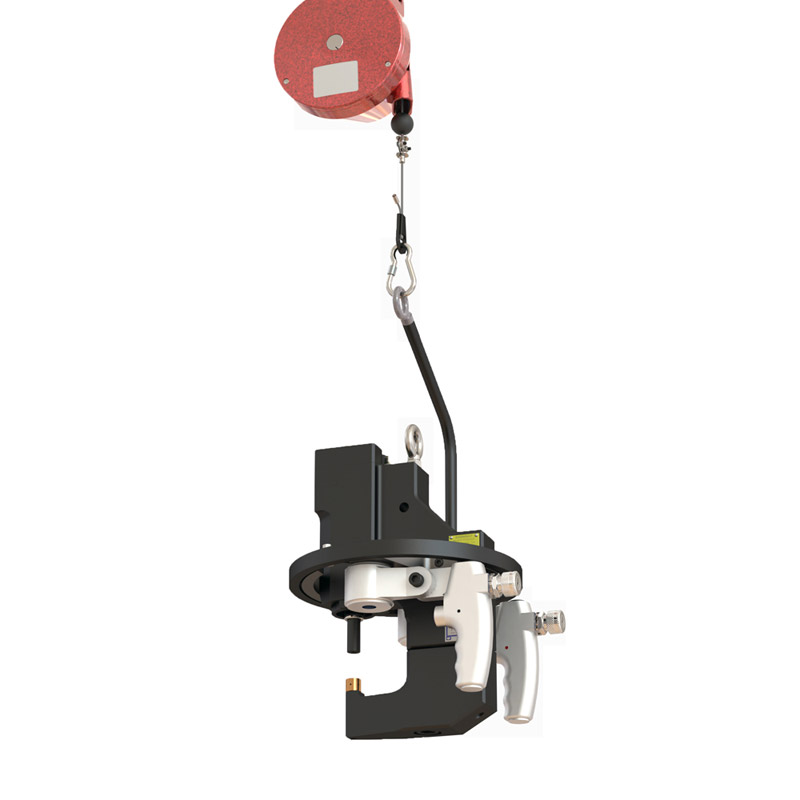

- Balancer for Weightless Operation
- Custom Length Hose Assemblies
- Major Components can be Sold Separately
- Tog-L-Loc® 5.5
- V-Loc™ 5.5
- Oval-Loc® 4x8 (By Special Order)
- Lance-N-Loc® 4.6 (By Special Order)
