Key Specifications | |
|---|---|
Maximum Combined Material Thickness | 3.5 mm [0.14”] [Mild Steel] |
Throat Depth | 50 mm [1.97”] |
Cycle Time | 1 second |
Weight | 36.5 kg [80.4 lb] |
Standard Input Pressure | 5.5 BAR [80 PSI] |
Tool Size | 3.0 to 4.6 |
- High Volume Manual Clinching
- Steel & Aluminum Sheet Metal Fabrication
- HVAC
- Metal Structure Assembly
- Metal Boxes
- Filter Assembly
- Prototype Assembly
- Optimized for Economical Clinching of More Complex Joints
- Dual Foot Pedals for Operator Handling Convenience
- Clinches with Both Round & Geometric Clinch Tools
- Quick Change Tooling for Multiple Applications
- Reversible Tooling
- Jaws Engineered for Increased Part Clearance
- Operates From a Single Shop Air Line
- 35 kN Compressive Force [3.9 Ton]
- CE Approved
- Controller for Joint Validation
- Integrated Alignment Guide for HVAC
- Custom Jaws Engineered to Your Requirements

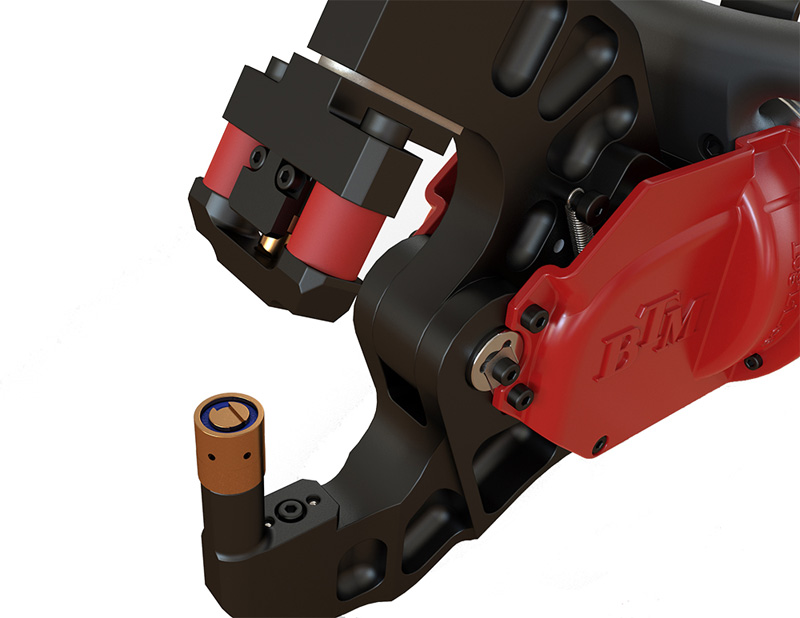

- Heavy Duty Stripper for Thicker Materials
- Tog-L-Loc® 3.0, 3.8, 4.6
- Lance-N-Loc® 3.0, 3.8
- V-Loc™ 3.8, 4.6
- Oval-Loc® 3x6
