Key Specifications | |
|---|---|
Max. Combined Material Thickness | 2 mm [0.08”] [Mild Steel] |
Throat Depth | 38 mm [1.50”] |
Cycle Time | 2 seconds |
Weight | 6.4 kg [14 lb] |
Input Pressure | Up to 5.5 BAR [80 PSI] |
Tool Size | 3.0 to 4.6 |

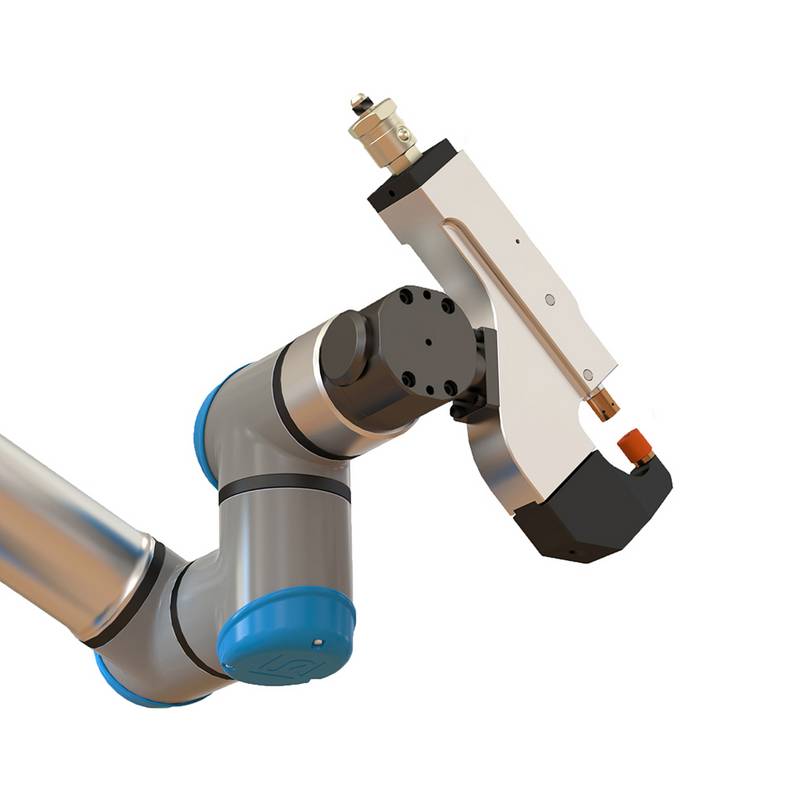

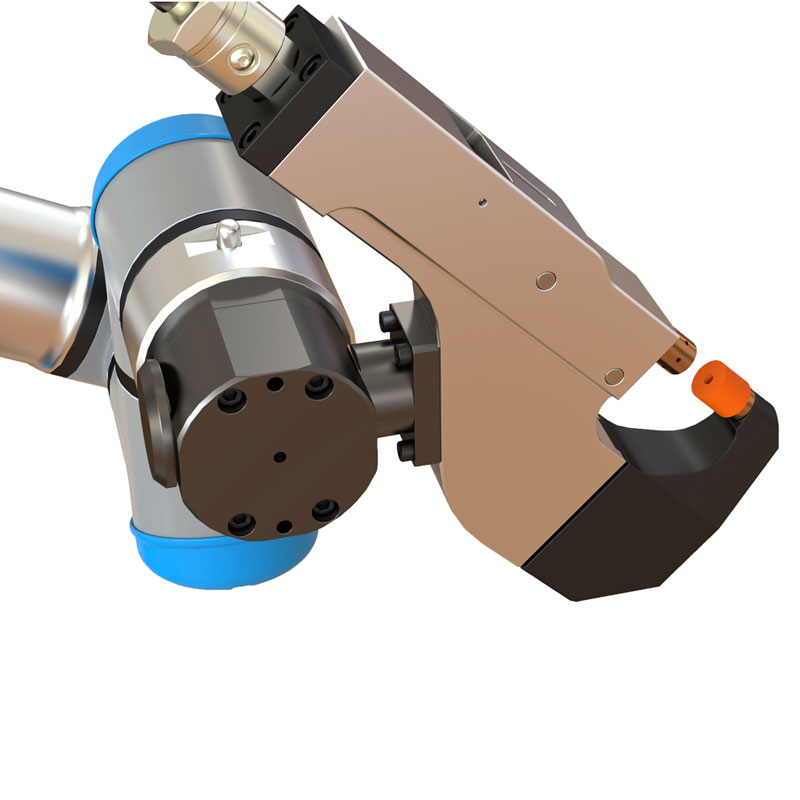

- High Volume Clinching - Robotic
- High Volume Clinching – Purpose Built Automation
- Steel & Aluminum Sheet Metal Fabrication
- HVAC Industry
- Metal Structure Assembly
- Roofing
- Furniture
- Filter Assembly
- Roller Garage Door Assembly
- Solar Panel Frames & Support Structures
- Larger Stroke Length
- Optimized for Economical Clinching of Smaller & Simple Round Joints
- Controls Optimized for Robot Integration
- Reverse Tooling
- Quick Change Shut Height Cartridges for Optimal Material Thickness
- Interchangeable Anvils for Wider Range of Part Cross Sections
- Remote Booster to Ensure Minimized End-of-Arm Tooling Weight
- Operates From a Single Shop Air Line
- 32 kN Compressive Force [3.6 Ton]
- Custom Anvils Engineered to Your Requirements
- Hose Assembly
- Tog-L-Loc® 3.0, 3.8, 4.6
- V-Loc™ 3.8. 4.6 (restrictions apply, long lead time)
