For duct work manufacturers and fabricators needing an affordable high-speed press with moderate throat depth
Key Specifications | |
|---|---|
Duct Work Thickness | Up to 2x 20 Gauge |

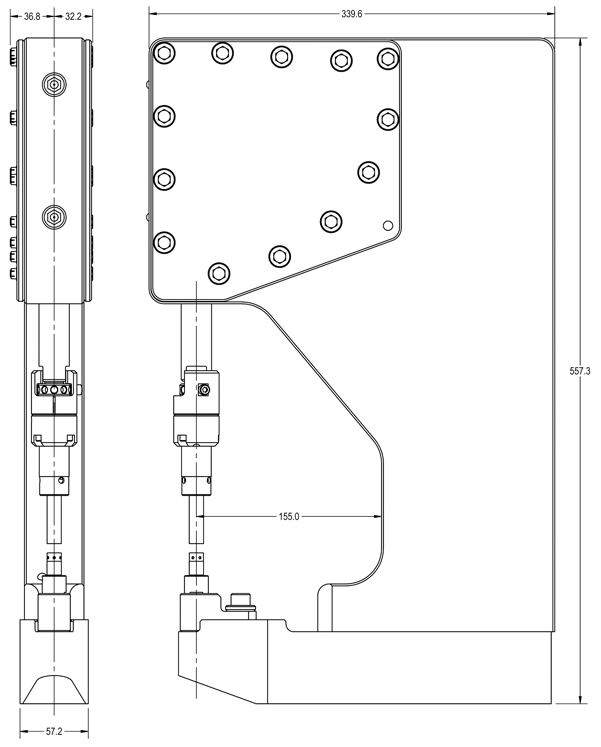

Throat Depth | 155 mm [6.10”] |
Maximum Opening | 6.4 mm [0.25”] |
Cycle Time | 1 second |
Weight | 26.8 kg [59.1 lb] |
Standard Input Pressure | 5.5 BAR [80 PSI] |
Tool Size | 3.0 |
- Excellent for Clinch Joint Seams
- Custom Duct Work Fabricators
- Air Vent & Air Flow Control Manufacturers
- Optimized for Economical Clinching of Smaller & Simple Joints
- Simple Pneumatic Advance/Retract
- Quick Change Tooling for Easy Adjustments

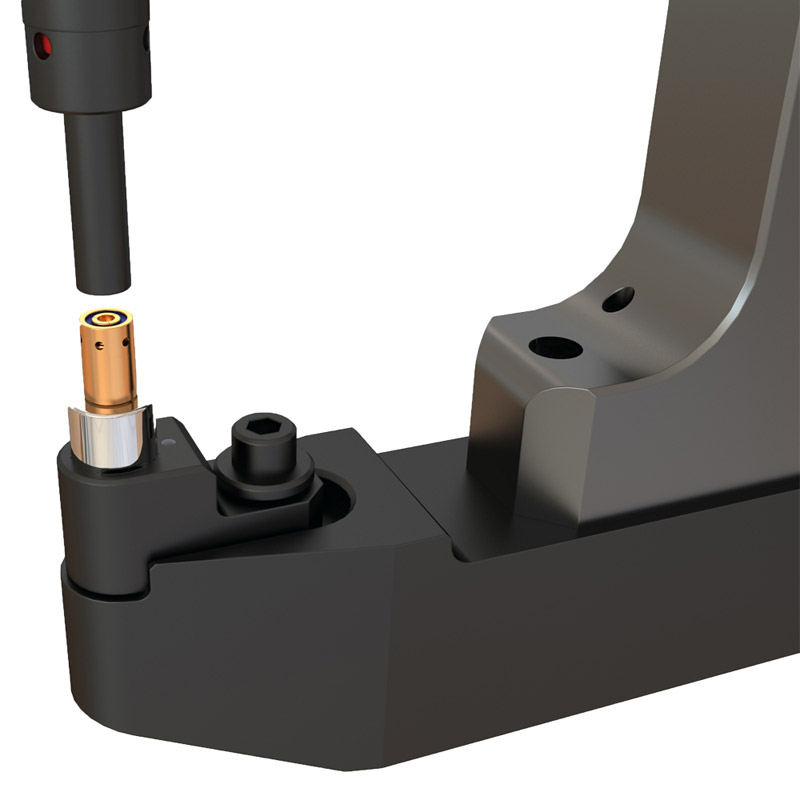

- Bottom Anvil
- 68% Lower/Reduced Air Consumption Compared with Conventional
- Pneumatic Cylinder
- Hardcoated to Rockwell C-70 for Excellent Wear Resistance
- 18 kN Compressive Force [2 Ton]
- Press Unit Only
- Bench Model with Foot Stand
- Floor Stand
- Foot Pedal Control Package for Operator Part Handling Convenience
- Custom Anvil Engineered to Your Requirements
- Tog-L-Loc® 3.0
